Scan-Speak CCB-5075 5.5" 2-way Speaker Kit
Manufacturer: ScanSpeak
Product ID: CCB_5075
Price:
$779.00
Scan-Speak CCB-5075 5.5" 2-Way Speaker Kit
Compact Classic Bookshelf Loudspeaker

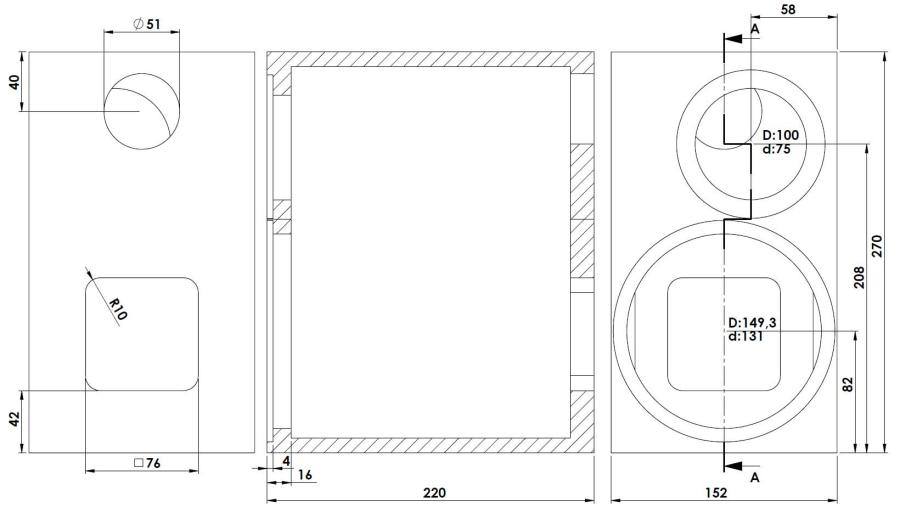

Small speaker with big sound! This tiny speaker measures 5.9" wide x 10-5/8" tall x 8-11/16" deep, with an internal volume of approximately 5.5 liters, but sounds MUCH larger. It features the new 20mm D2010/852100 neodymium magnet tweeter and 15W/8534T00 Phenomax cone midwoofer. Fittingly, both drivers are from the Classic family in the Scan-Speak line.
Each CCB-5075 Speaker Kit Includes:

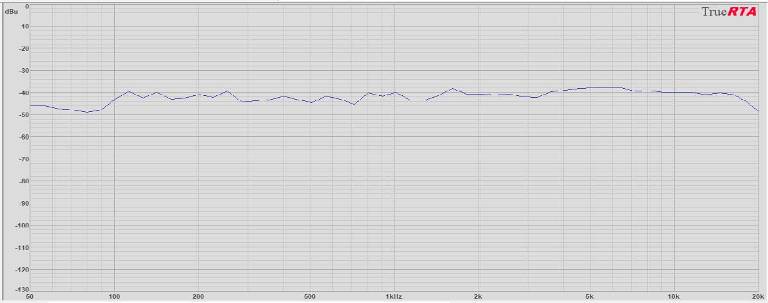

Frequency Response
Crossover Schematic
Madisound Crossover Info
Each crossover is professionally assembled by Madisound on our silver tinned inlaid OFC copper circuit board.
The tweeter uses a ClarityCap CSA cap and Mundorf CopperNickel resistor.
The midrange inductor is a Mundorf 16 awg Copper Foil, with a polycap and Mundorf MOX resistor in the parallel circuit.
Upgrade and cost saving options are available from the drop down menu.
Scan-Speak Classic D2010/852100 3/4" Dome Tweeters
Key Features:
Key Features:

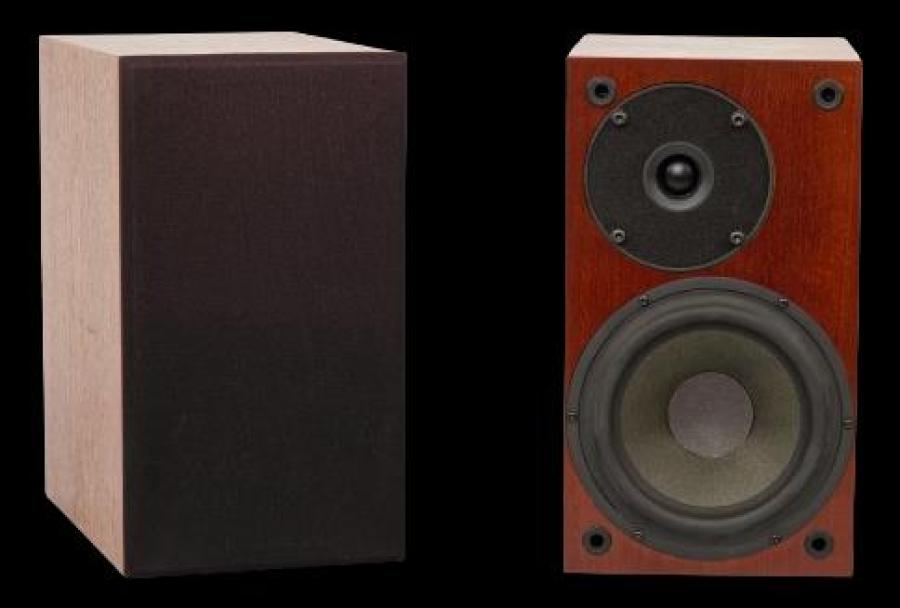

Compact Classic Bookshelf Loudspeaker

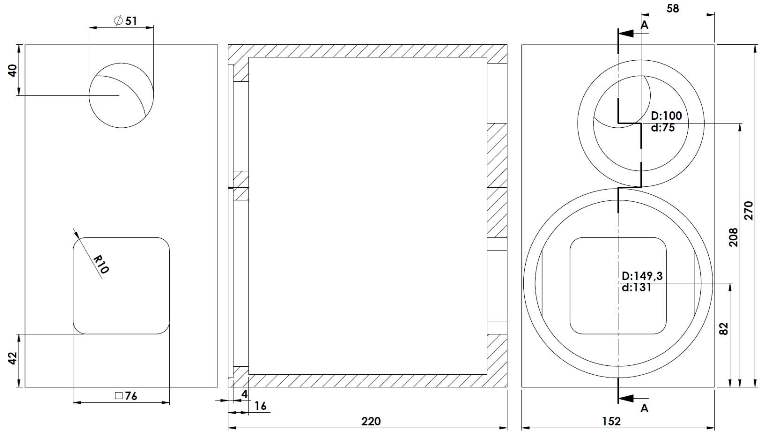

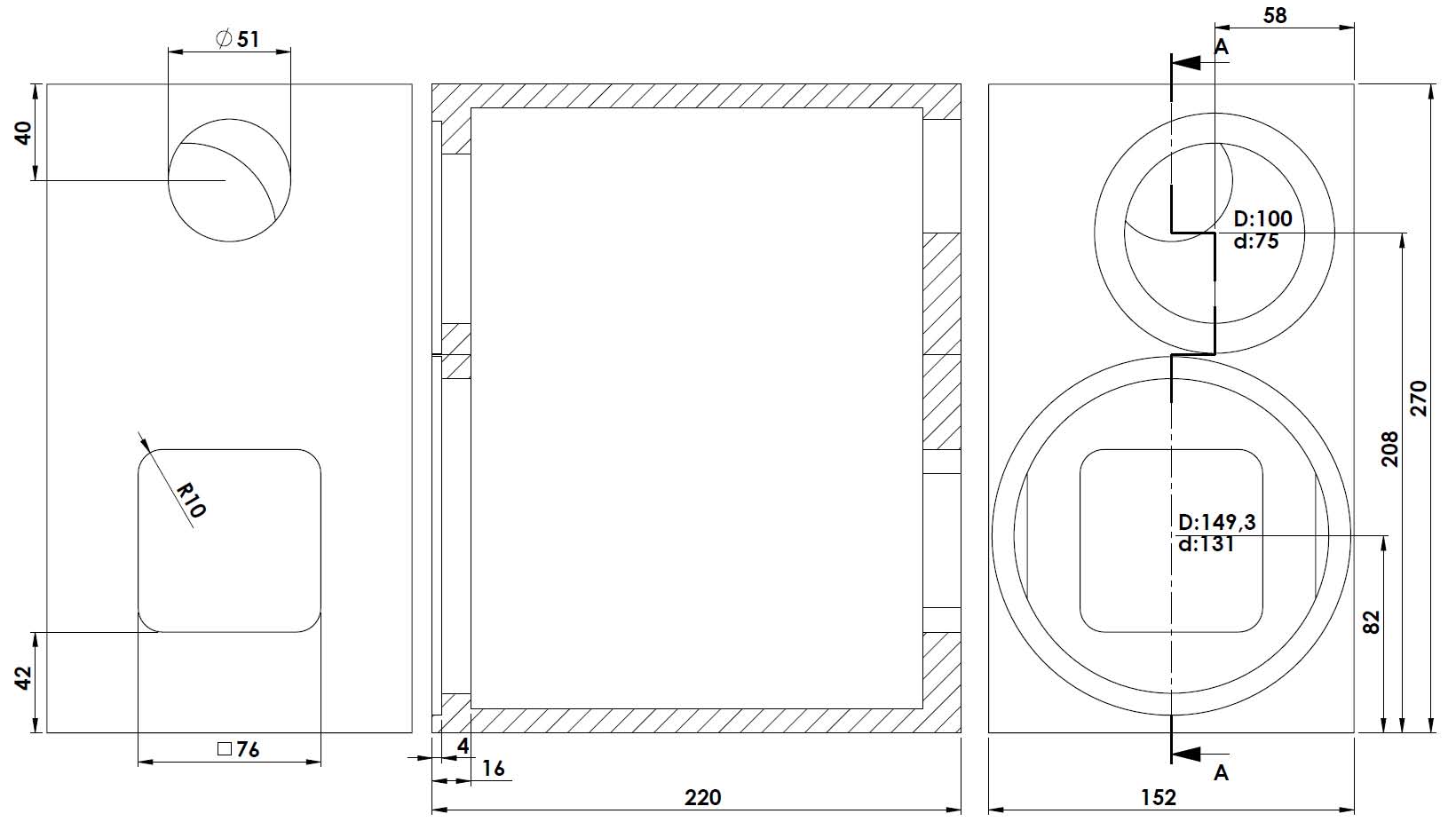

Small speaker with big sound! This tiny speaker measures 5.9" wide x 10-5/8" tall x 8-11/16" deep, with an internal volume of approximately 5.5 liters, but sounds MUCH larger. It features the new 20mm D2010/852100 neodymium magnet tweeter and 15W/8534T00 Phenomax cone midwoofer. Fittingly, both drivers are from the Classic family in the Scan-Speak line.

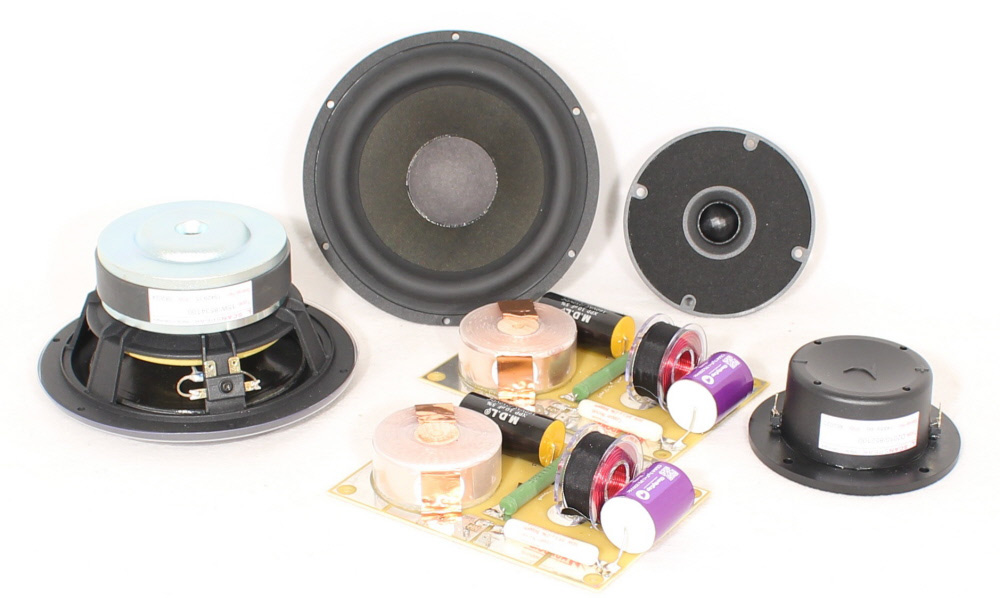

Each CCB-5075 Speaker Kit Includes:
- (2) Scan-Speak Classic D2010/852100 3/4" Dome Tweeters

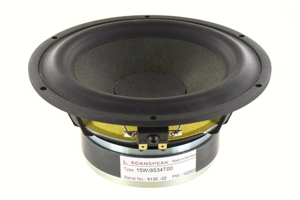

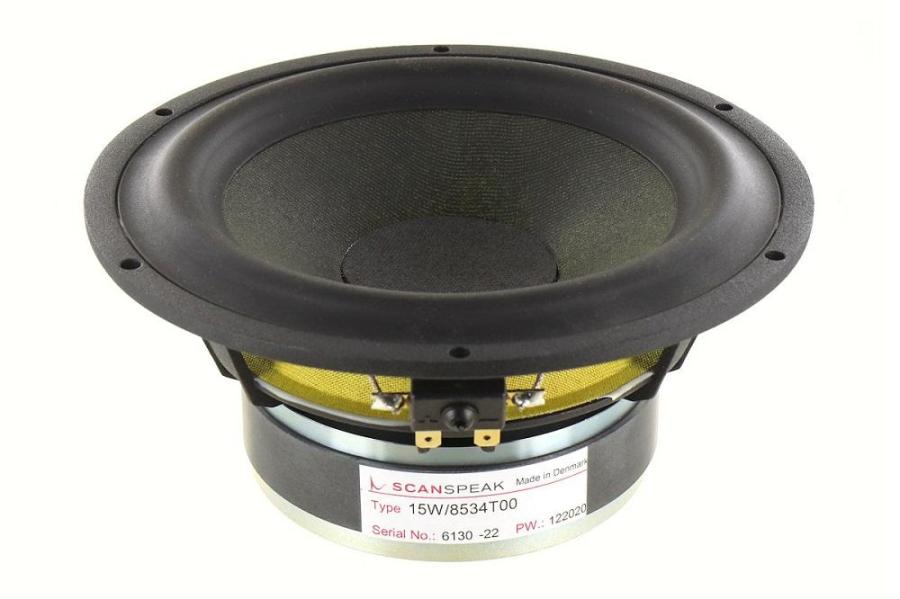

- (2) Scan-Speak 15W/8534T-00 Phenomax 5.5" Midwoofers
- (2) Professionally Assembled Crossovers (details below)
Frequency Response

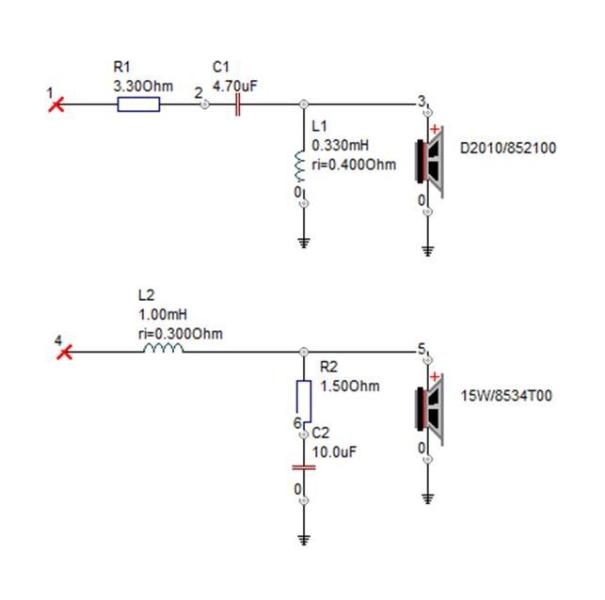

Crossover Schematic
Madisound Crossover Info
Each crossover is professionally assembled by Madisound on our silver tinned inlaid OFC copper circuit board.
The tweeter uses a ClarityCap CSA cap and Mundorf CopperNickel resistor.
The midrange inductor is a Mundorf 16 awg Copper Foil, with a polycap and Mundorf MOX resistor in the parallel circuit.
Upgrade and cost saving options are available from the drop down menu.

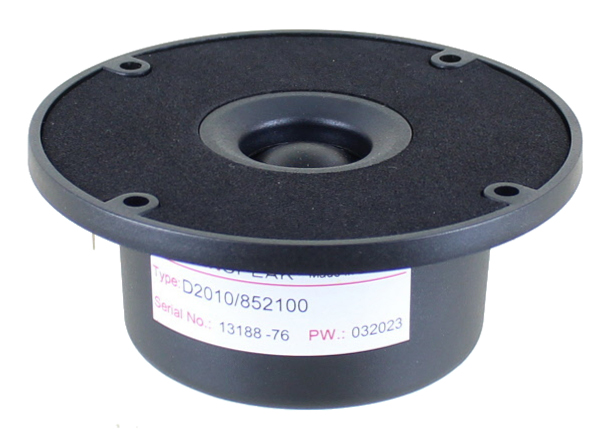

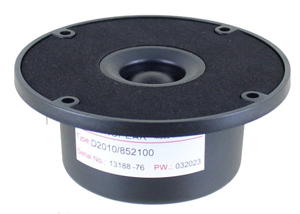

Scan-Speak Classic D2010/852100 3/4" Dome Tweeters
Key Features:
- Wide Dispersion
- Diffraction Damping Cell Rubber Front
- Dual Rear Chamber
- Vented Pole Piece
- Neodymium Magnet
Key Features:
- Phenomax 5-layer Cone Material
- Patented Symmetrical Drive Motor Design
- 38mm Voice Coil on Titanium Former
- Low Loss Linear Suspension
- Aluminium Chassis
- Smooth Midrange Response
