Satori Rinjani TeXtreme 2.5-Way Speaker Kit - Pair With Cabinets
Manufacturer: SB Acoustics
Product ID: Rinjani TX
Price:
$3,749.00
Satori Rinjani TeXtreme 2.5-Way Speaker Kit - Pair With Cabinets
The RINJANI TX takes advantage of the top of the line SATORI MW16TX-8 with two 6½” midwoofers used in each speaker for a 2½-way floor standing speaker and pairs them with the 29mm wide surround TeXtreme® tweeter SATORI TW20TXN-B-8 for a visually and acoustically stunning match.
The crossover of hte RINJANI TX has been completely revised for the TeXtreme® drivers to further enhance the performance and sonic qualities. the sound is very natural and true to life with the two 6½” Mid woofers speaker delivering accurate and solid bass at even high listening levels.

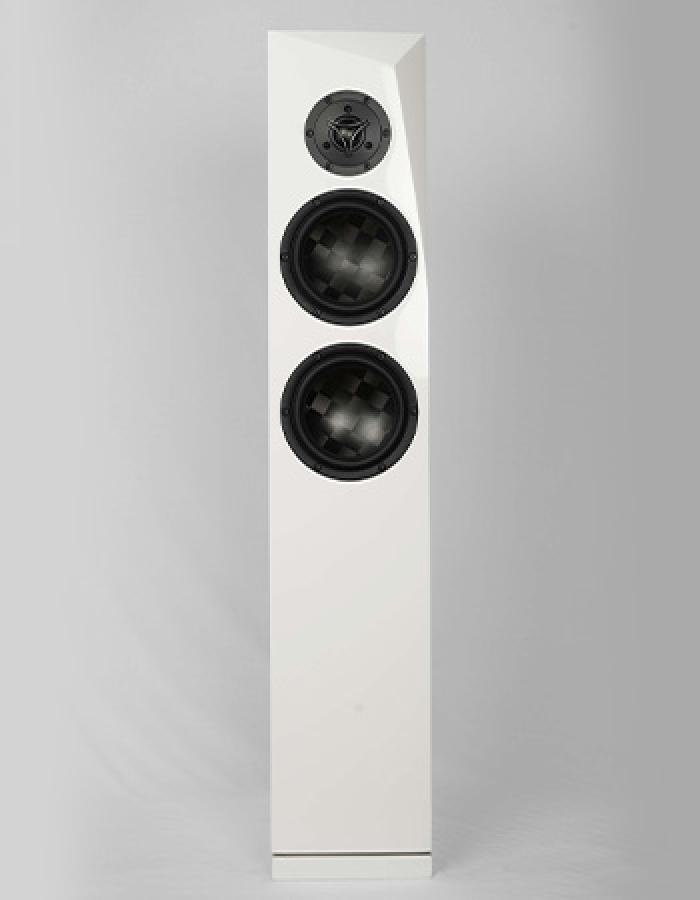

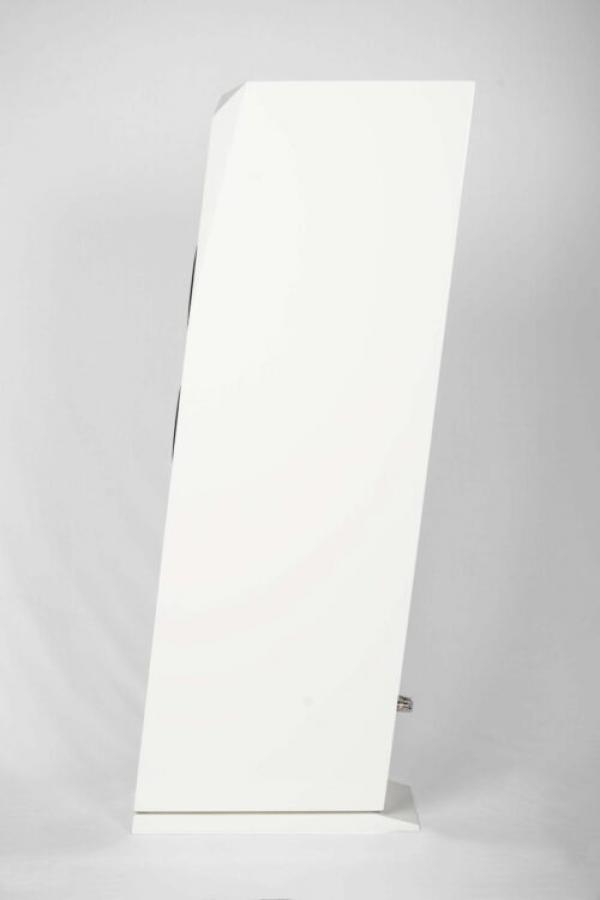

The RINJANI’s faceted baffle is specially designed to reduce high frequency diffraction an yields superb imaging qualities. The 7 reclined cabinet ensures good time alignment resulting in sublime staging and pin point placement of instruments. The woofer section of the crossover lives in its own sealed chamber in the bottom of the speaker with a slanted divider to diminish standing waves.
When purchasing the complete kit, you are provided with everything needed to assemble a stereo pair of speakers. The cabinet is fully assembled with a premium finish. All port tubes, damping material, internal wire, binding posts, quick connects, and mounting hardware are included.
You will need a screwdriver/drill and wire stripper/crimper to complete assembly. Soldering the internal speaker wire to the drivers, crossovers, and binding posts is not required but you may choose to do so.
Price shown includes a 10% discount on all drivers.
View the Rinjani TX product page on the SB Acoustics website here.
View the Rinjani cabinet details here.
Each Rinjani TX Kit Purchase Includes:
Assembled Crossover Information
Each crossover is professionally assembled by Madisound on our silver tinned inlaid OFC copper circuit boards.
The series tweeter circuit utilizes ClarityCap PUR capacitor and Mundorf CopperConnect resistors. The midwoofer section uses a Solen Perfect Lay14awg inductor for L3 and a Sledgehammer 15awg Steel Laminate inductor for L5. Upgrade and cost saving options are available from the drop down menu.
Crossovers include hookup instructions. Available for separate purchase from the drop down menu.
The cabinet was setup for a single factory crossover for the original (non TX) Rinjani kit. Our crossover parts are much larger for the TX version, and require two circuit boards per channel. You will have to find room to mount them inside the cabinet. You can run two sets of wires from the binding posts - one to each crossover board, or run jumper wires from one crossover board input to the input on the other board.
Rinjani TX Premium Assembled Crossovers
Rinjani TX Crossover Schematic
Satori TW29TXN-8 TeXtreme Dome Tweeter
Satori MW16TX-8 TeXtreme Cone Woofer x2
Rinjani TX Kit Drivers & Crossovers
The RINJANI TX takes advantage of the top of the line SATORI MW16TX-8 with two 6½” midwoofers used in each speaker for a 2½-way floor standing speaker and pairs them with the 29mm wide surround TeXtreme® tweeter SATORI TW20TXN-B-8 for a visually and acoustically stunning match.
The crossover of hte RINJANI TX has been completely revised for the TeXtreme® drivers to further enhance the performance and sonic qualities. the sound is very natural and true to life with the two 6½” Mid woofers speaker delivering accurate and solid bass at even high listening levels.
The RINJANI’s faceted baffle is specially designed to reduce high frequency diffraction an yields superb imaging qualities. The 7 reclined cabinet ensures good time alignment resulting in sublime staging and pin point placement of instruments. The woofer section of the crossover lives in its own sealed chamber in the bottom of the speaker with a slanted divider to diminish standing waves.
When purchasing the complete kit, you are provided with everything needed to assemble a stereo pair of speakers. The cabinet is fully assembled with a premium finish. All port tubes, damping material, internal wire, binding posts, quick connects, and mounting hardware are included.
You will need a screwdriver/drill and wire stripper/crimper to complete assembly. Soldering the internal speaker wire to the drivers, crossovers, and binding posts is not required but you may choose to do so.
Price shown includes a 10% discount on all drivers.
View the Rinjani TX product page on the SB Acoustics website here.
View the Rinjani cabinet details here.
Each Rinjani TX Kit Purchase Includes:
- (2) Satori TW29TXN-8 TeXtreme Dome Tweeters
- (4) Satori MW16TX-8 TeXtreme Cone Woofers
- (2) Madisound Professionally Assembled Crossovers (see below for details)
- (2) Fully Finished High Gloss Black Cabinets (High Gloss White Special Order ~ 4 months)
- Upgrade tweeter capacitor
- Upgrade tweeter resistors
- Upgrade series inductor
- Impedance compensation network for tube amp users
- No cabinets - drivers and crossovers only
- No cabinets or drivers - crossovers only
- Frequency Range: 45 – 32000 Hz
- Sensitivity ( 2.83V / 1m ): 88 dB
- Nominal Impedance: 4Ω
- Max SPL: 106 dB
- Recommended Amplifier: 50 – 200 W
- Crossover Frequency: 2400 Hz
- Enclosure Type: Bass reflex
- Port tuning Frequency: 35.5 Hz
- Cabinet Dimensions: 39.7" tall x 7.5" wide x 13.4" deep + recline
Assembled Crossover Information
Each crossover is professionally assembled by Madisound on our silver tinned inlaid OFC copper circuit boards.
The series tweeter circuit utilizes ClarityCap PUR capacitor and Mundorf CopperConnect resistors. The midwoofer section uses a Solen Perfect Lay14awg inductor for L3 and a Sledgehammer 15awg Steel Laminate inductor for L5. Upgrade and cost saving options are available from the drop down menu.
Crossovers include hookup instructions. Available for separate purchase from the drop down menu.
The cabinet was setup for a single factory crossover for the original (non TX) Rinjani kit. Our crossover parts are much larger for the TX version, and require two circuit boards per channel. You will have to find room to mount them inside the cabinet. You can run two sets of wires from the binding posts - one to each crossover board, or run jumper wires from one crossover board input to the input on the other board.

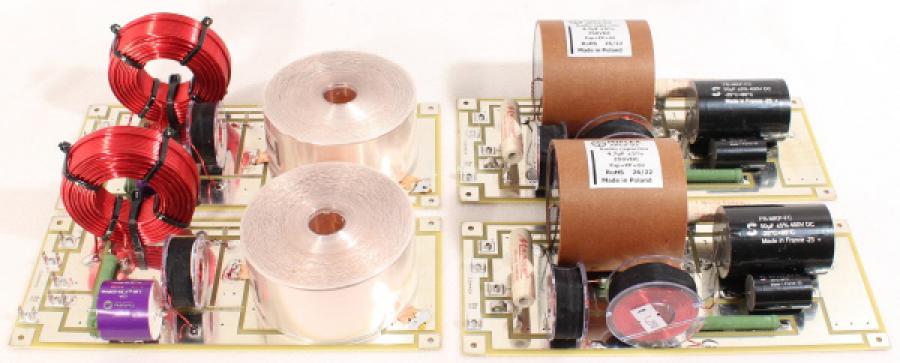

Rinjani TX Premium Assembled Crossovers
Rinjani TX Crossover Schematic
Satori TW29TXN-8 TeXtreme Dome Tweeter
Satori MW16TX-8 TeXtreme Cone Woofer x2

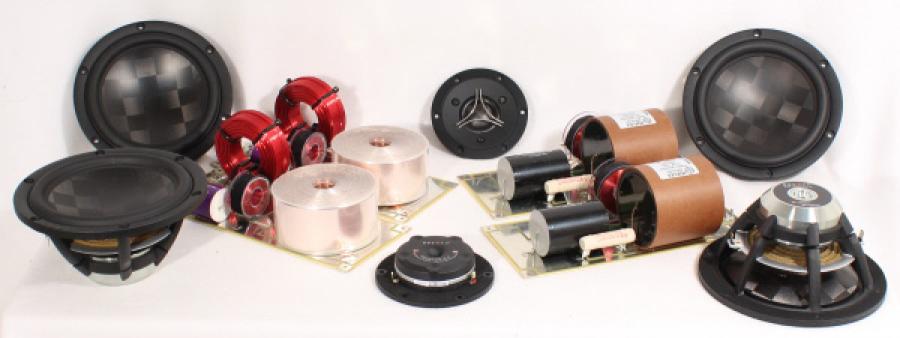

Rinjani TX Kit Drivers & Crossovers
