SB Acoustics SB20PFCR30-8 8" Paper Cone Woofer- 8 ohm

Manufacturer: SB Acoustics

1 Customer Review(s)

Product ID: SB20PFCR30-8

$57.10

Volume Pricing

10 - 100
10% off

Add to wish list E-mail to a friend

Overview

SB Acoustics SB20PFCR30-8 8" Woofer Paper Cone- 218mm- 8 ohm- ROUND

SB Acoustics SB20PFCR30-8 8" Woofer Paper Cone- 218mm- 8 ohm- ROUND

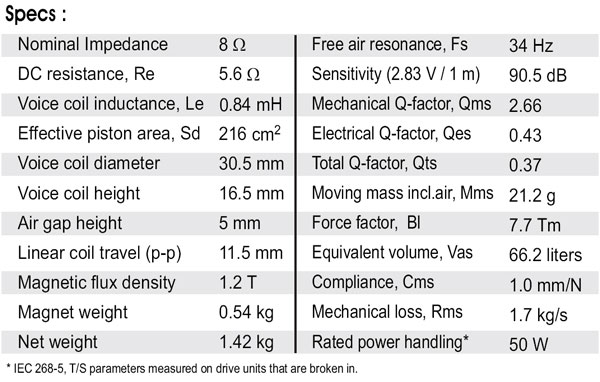

Spec Sheet PDF

Low Q, good for medium size vented box (see below).

This 8" papyrus fiber paper cone woofer is a great value for this build quality and performance. The specifications make it a good choice for many different enclosure types. An extended and smooth frequency response suggests simple crossovers, even none at all.

Vented reinforced plastic chassis
Proprietary cone material with natural fibers made in-house
Soft low damping rubber surround for improved transient response
Large spider for improved linearity
Optimized motor system
Vented coil former for low compression
Non-resonant long life lead wires

Some possible box alignments:

Sealed box of 0.5 to 0.75 cubic foot for a 3dB down of about 70Hz
Vented box of 0.75 cubic foot with 2" Ø vent by 5" long for f3 of 55Hz
Vented box of 1.0 cubic foot with 2" Ø vent by 4" long for f3 of 49Hz
Vented box of 1.25 cubic feet with 2" Ø vent by 3.5" long for f3 of 45Hz
Vented box of 1.5 cubic feet with 2" Ø vent by 3" long for f3 of 42Hz

1 Customer Review(s)

Verified Purchase

Excellent value for hi-fi level

Reviewed by norurb on 01/04/2022

I built a midbass module with x2 woofers per side, for a 4 ohm load. 2.8 cubic feet, and x2 ports per box. Easily reach around 45 hz, which is good enough. These are not subs. I wanted them to supplement smallish bookshelf speakers. And these woofers do a great job. They get loud enough yet I don't hear distortion. That's what I wanted. These are great for mid-fi and hi-fi.
