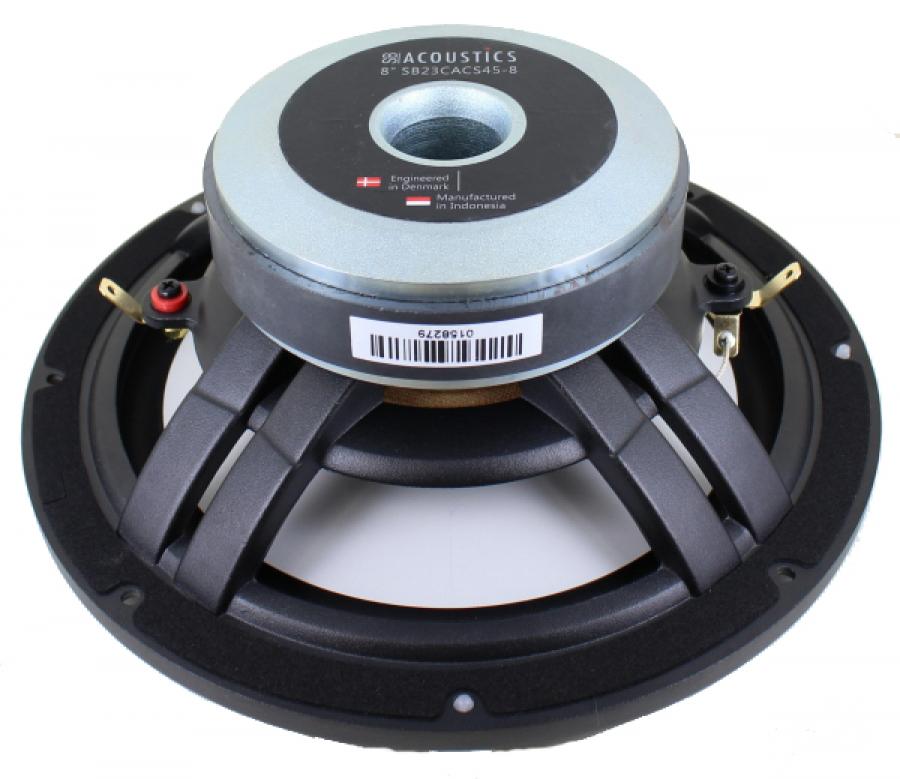

SB Acoustics SB23CACS45-8 8" ceramic woofer- 8 ohms

SB Acoustics SB23CACS45-8 8" Ceramic Cone Woofer 8 ohms

Manufacturer Specifications PDF

SB Ceramic cones consist of an aluminum/ceramic dual layer cone. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance.

• Vented cast aluminum chassis for optimum strength and low compression
• Geometrically reinforced ceramic cone for optimum piston operation and reduced
• break-up
• Soft low damping rubber surround for improved transient response
• Non-conducting fibre glass voice coil former for minimum damping
• Shorting ring in motor system for reduced distortion
• CCAW voice coil for reduced moving mass
• Long life silver lead wires
• Vented pole piece for reduced compression

Why Ceramic?
Ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide:

• Significantly higher stiffness to weight ratio.
• More consistent performance over a wide range of temperature and humidity. For example, polypropylene's performance changes dramatically with temperature, while paper can be significantly affected by humidity.
• Superior immunity to UV light and sunlight.
• Superior immunity to water and salt water.
• Superior immunity to combustibility

Box Recommendations

• Sealed box of 0.55 cubic feet with 50% filling has an F3 of 56Hz.
• Vented box of 1.0 cubic feet with 2" diameter vent by 6" long has F3 of 38Hz
• Vented box of 1.25 cubic feet with 2" diameter vent by 4.9" long has F3 of 35Hz
• Vented box of 1.75 cubic feet with 2" diameter vent by 4" long has F3 of 30Hz
