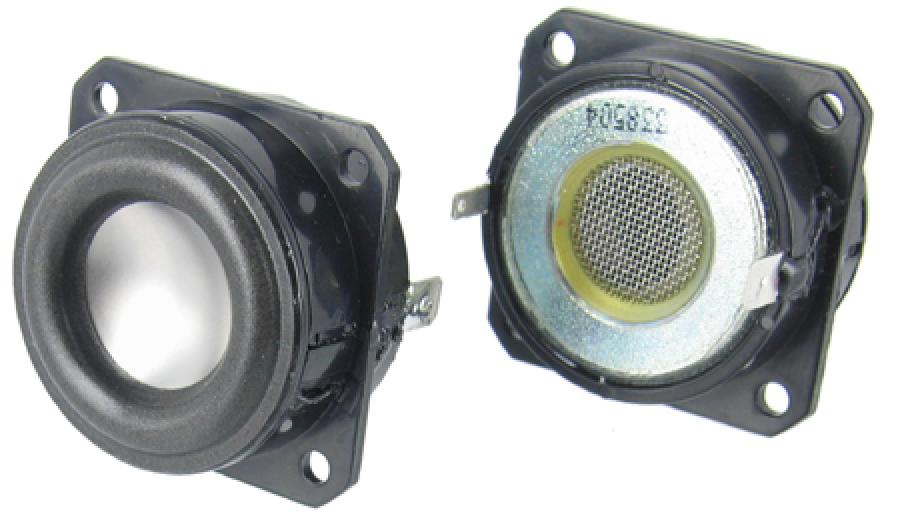

Aurasound NSW1-205-8A 1" Extended Range
Manufacturer: Aurasound
Product ID: nsw1-205-8a
Price:
$19.45
Volume Pricing
10 - 10,000
10% off
10% off
Overview
1", 5-Watt, micro, full-range loudspeaker utilizes a large 20 mm diameter voice coil in an underhung short coil geometry, foam surround and a neodymium radial magnet (NRT). 78 dB sensitivity and 220 Hz to 20 kHz frequency response and 8 ohms impedance.
Aurasound 20mm (3/4") Full Range
Spec sheet: Aurasound NSW1-205-8A
The NSW1-205-8A is the best driver we know of in this size range. This driver has the widest range and handles more power then any other little driver like this.
Features:
- Frequency 250 to 25kHz
- Titanium dome
- Underhung voice coil
- NRT neodymium magnet system
- Inherently shielded
- Foam surround
- Frame: 39mm square
- Overall Depth: 22mm
- Mounting Flange: 2mm
- Larger tab is +, smaller tab -
