SB Acoustics SW26DBAC76-4BLK 10" Subwoofer 4 ohm

SB Acoustics SW26DBAC76-4BLK 10" Black Aluminum Cone Shallow Subwoofer

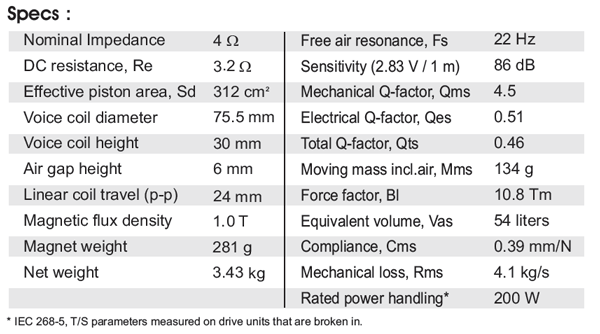

Spec Sheet PDF

Shallow (3.5") basket ideal for autosound or home hi-fi applications where mounting depth is an issue.

Unique shallow design! Recommended for sealed box applications. If used in a 1.2 cubic foot sealed box your F3 will be about 35Hz. If used with a plate amplifier with 25Hz boost, your F3 will be about 24Hz. An in car response with 6dB of cabin gain should get you below 20Hz.

If used in 1.2 cubic feet with the SW26DBAC-00 passive radiator you are 3dB down at 27Hz and 6dB down at 20Hz.  That is without any boosting.

• Unique patented long throw shallow design
• Vented cast aluminum chassis for optimum strength and low compression
• Dual rigid aluminum cone structure
• Non-conducting fiberglass coil former for minimum damping
• Shorting ring in motor system for reduced distortion
• 3 copper voice coil for improved power handling
• Long life insulated silver lead wires
• Powerful neodymium motor system
• Consider using the woofer with the optional SW26DBAC-00 passive radiator.
