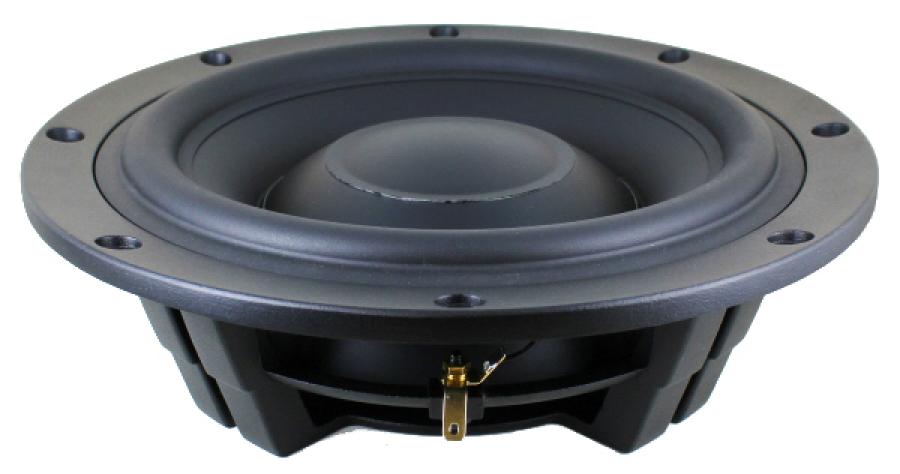

SB Acoustics SW26DBAC76-8BLK 10" Subwoofer

SB Acoustics SW26DBAC76-8BLK 10" Black Aluminum Cone Shallow Subwoofer- 8 ohm

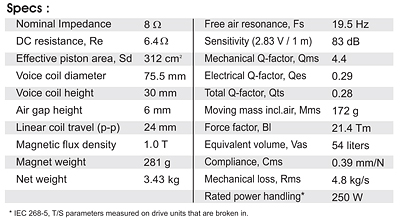

Spec Sheet PDF

Shallow (3.5") basket ideal for autosound or home hi-fi applications where mounting depth is an issue.

If used in a 0.5 cubic foot sealed box (add for amp volume) and a plate amplifier, your F3 will be about 27Hz. Without a plate amp and boost, the F3 is about 55Hz.

If used in 0.5 cubic feet with the SW26DBAC-00 passive radiator you are 3dB down at 33Hz and 6dB down at 28Hz. That is without any boost.

• Unique patented long throw shallow design
• Vented cast aluminum chassis for optimum strength and low compression
• Dual rigid aluminum cone structure
• Non-conducting fiber glass coil former for minimum damping
• Shorting ring in motor system for reduced distortion
• Copper voice coil for improved power handling
• Long life insulated silver lead wires
• Powerful neodymium motor system
• Consider using with the SW26DBAC-00 passive radiator.
