Peerless SLS 830668 10" Woofer - Coated Paper Cone

Manufacturer: Peerless by Tymphany

Be the first to review this product

Product ID: 830668

$112.90

Product is out of stock

Add to wish list E-mail to a friend

Overview

The Peerless SLS Series combines high quality performance with an affordable design. The SLS drivers are ideal for use in systems with high power handling requirements, and are a logical choice for use with the SDS line of transducers.

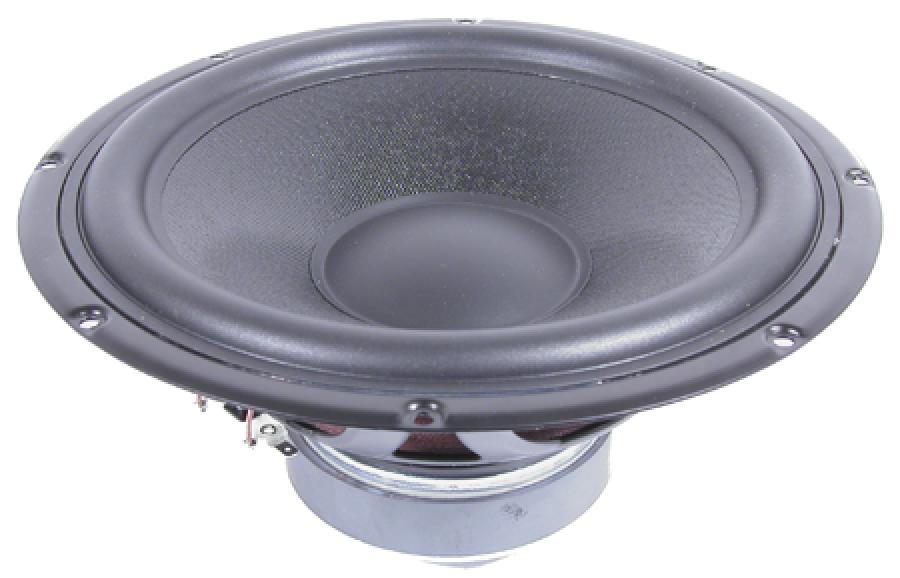

Peerless 830668 10" Coated Paper Cone Woofer

Coated Paper cone
Rubber surround
Rigid stamped frame
Ventilated raised spider
Bumped back plate
Shorting ring
4.8mm positive terminal and 2.8mm negative terminal
Foam gasket
263mm flange
226mm cut out hole size
123mm depth
Suggested box alignment:
- 1.5 to 2.75 cubic feet sealed, with stuffing.F3 46, F6 35 (your plate amp can boost the low end)
- 3.5 cubic feet ported with 3"dia x 6" long for F3 27Hz

Not rated yet

830668

Reviewed by Seren2 on 09/26/2012

Product review of 830668, 'Very happy! I would definitely recommend this driver to someone if it fit their criteria. Clean bass at a great price. I used these to replace some old Peerless drivers in a pair of Bang & Olufsen Beovox MS150 speaker that had been damaged. They are in a smaller than optimum vented enclosure (bass extension-wise), but in Unibox, model exactly like the old drivers. ~57 liters tuned to 35Hz is down about 8dB at 30Hz with the B&O Xover, but I’ll be using a sub, so it’s fine. Down to around 40Hz sounds fine, and even though it’s attenuated below that, it’s still nice and clean at any listening level (using a very, very conservative 100W B&O receiver). I can hear a small improvement in clarity and definition over the one old OEM Peerless driver left that still had its magnet attached. The frame is awesome for stamped steel - nice and heavy. There’s ventilation everywhere, behind the spider, and through the magnet for the voice coil too. Both build quality and sound qualities are very nice.' Review by Jonathan Baxter. Posted by Madisound.
