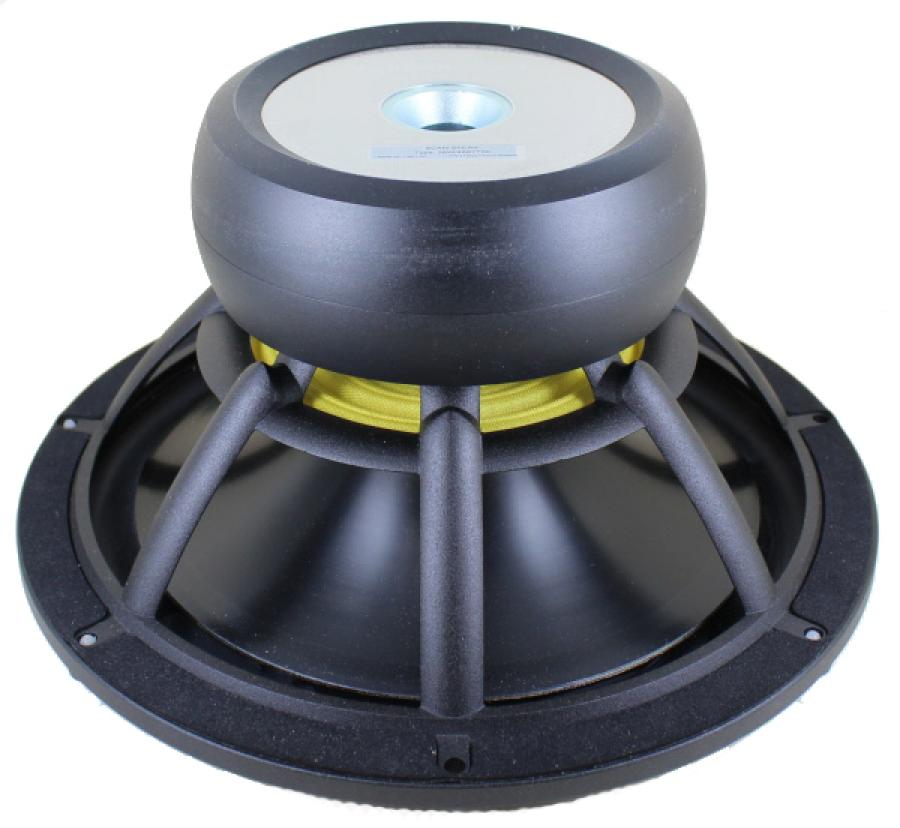

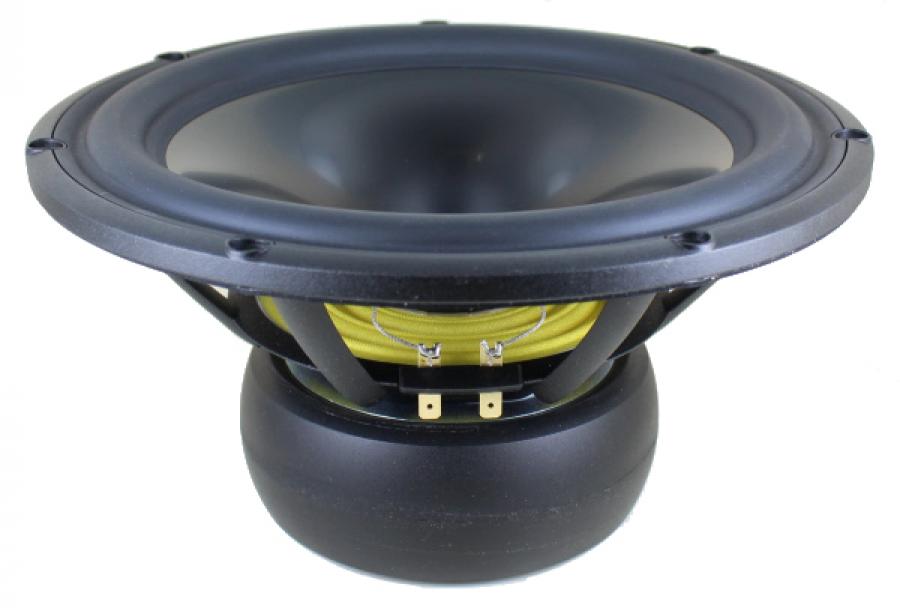

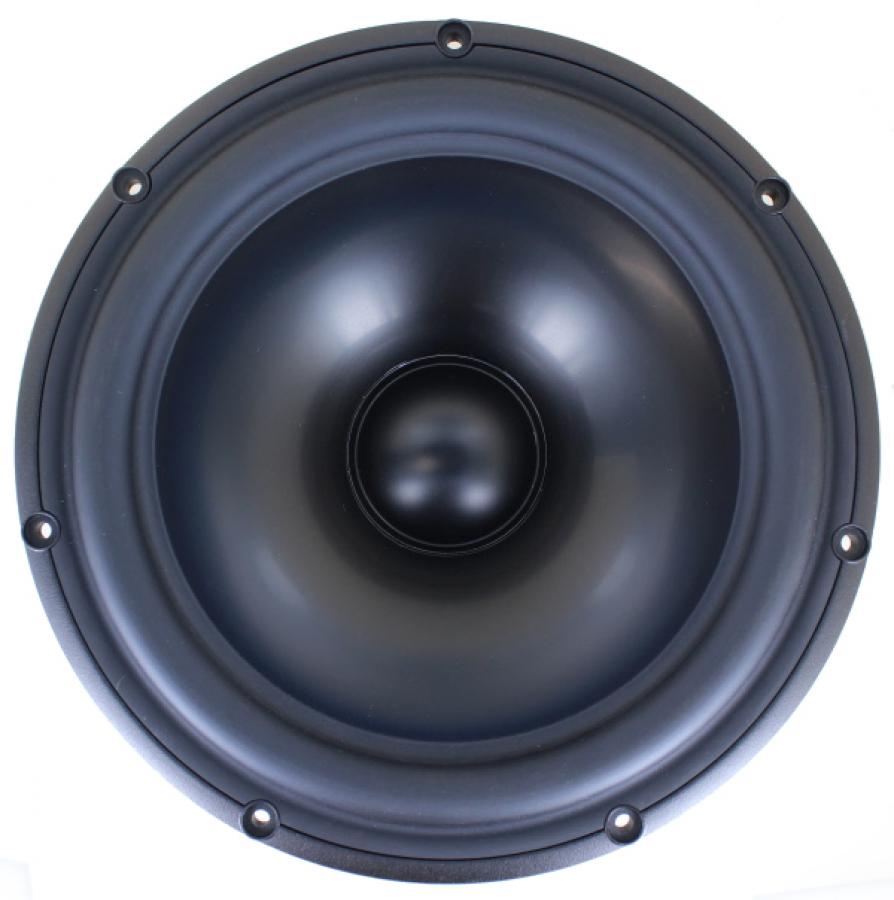

ScanSpeak Revelator 26W/4867T 10" Woofer Black Aluminum Cone

ScanSpeak Revelator 26W/4867T 10" Woofer Black Aluminum Cone
New 4 ohm version of the black Aluminum cone Revelator woofer! Aluminum is a good material for subwoofer cones, very stiff and light. These cones reduce distortion and also help cool the voice coil by conducting heat away from the coil. This woofer has a low loss suspension for increased bass response and the SD-1 motor system for less intermodulation distortion. Very rigid cast frame, large windows.

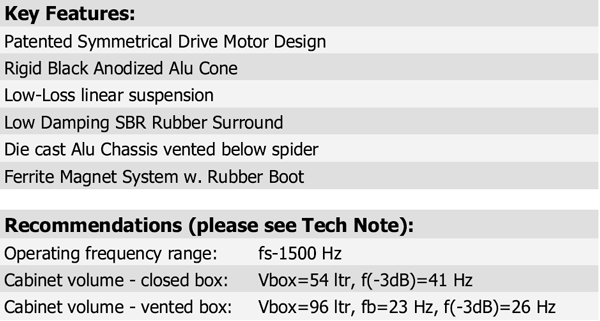

• Patented Symmetrical Drive Motor Design
• Rigid Black Anodized Alu Cone
• Low-Loss linear suspension
• Low Damping SBR Rubber Surround
• Die cast Alu Chassis vented below spider
• Ferrite Magnet System w. Rubber Boot

Madisound recommends:
1.25 to 1.5 cf3 sealed for f3 of 45Hz, f6 of 35Hz
or
2.75 cf3 ported with single 3” x 12” straight vent for f3 of 29Hz
