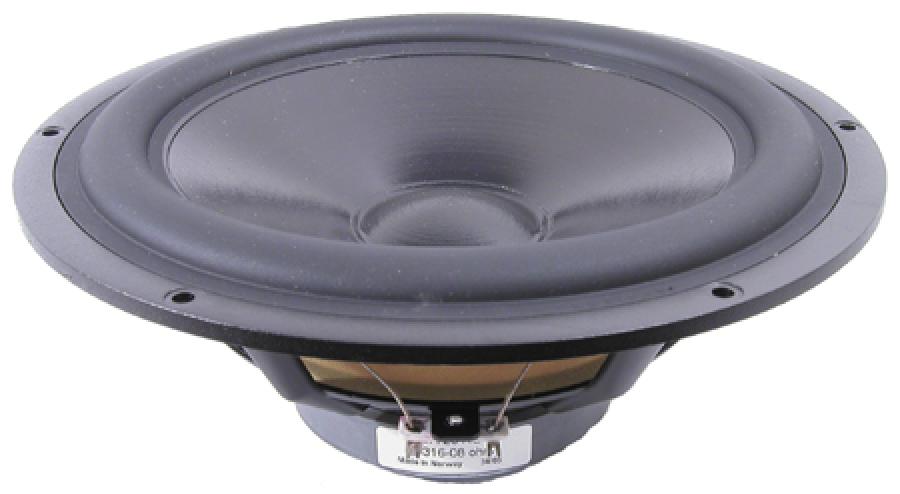

SEAS Prestige CA26RE4X (H1316) 10" Paper Cone Woofer

SEAS Prestige CA26RE4X (H1316) 10" Paper Cone Woofer- 269mm- 8 ohm

Spec Sheet PDF

Smooth upper midrange for driver of this size with low distortion. Low Q good for vented box.

• Classical manually coated paper cone and matching natural rubber surround produce a smooth response and reduce potential resonance problems.
• Four layer voice coil provides a well behaved roll off characteristic.
• Large magnet system gives good sensitivity and transient response.
• Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.
• Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

Enclosure suggestions:

• Sealed box of 0.65 cubic foot for F3 of 80Hz
• Vented box of 1.5 cubic feet with a 3" diameter vent by 7" long for F3 of 50Hz

Spec sheet: Seas Prestige CA26RE4X H1316 Woofer
