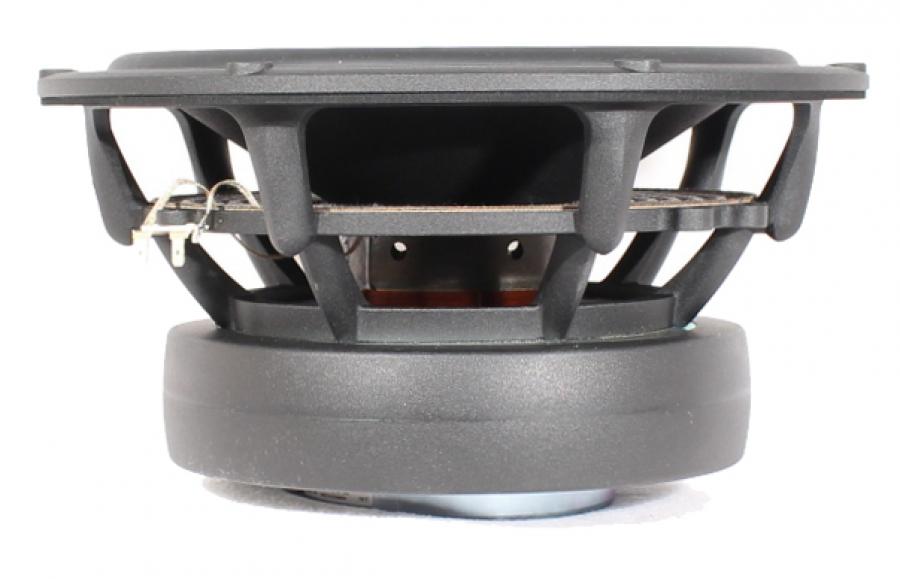

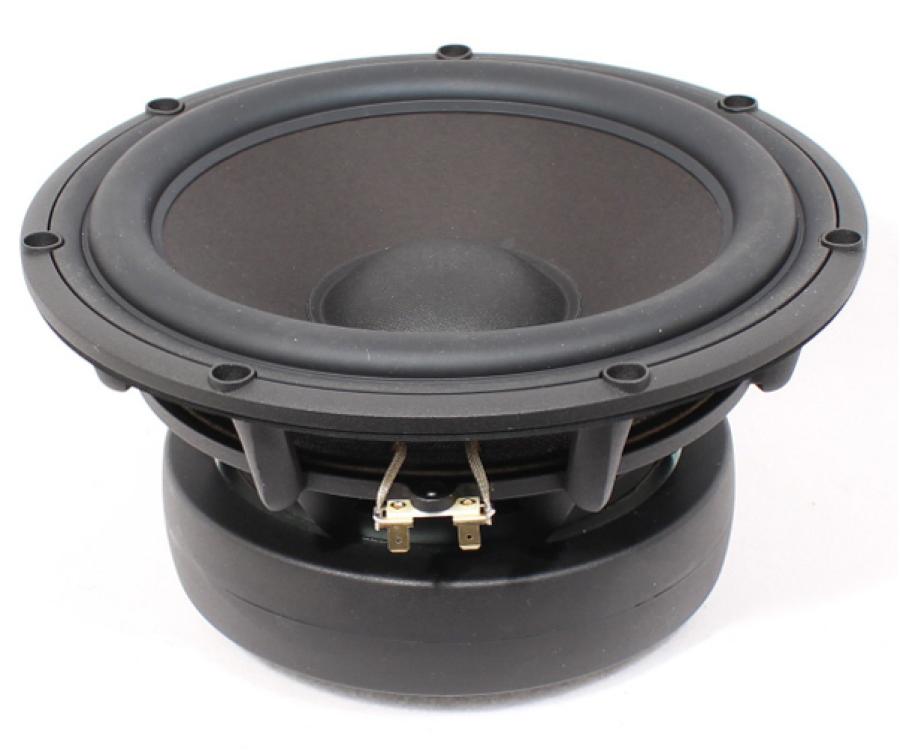

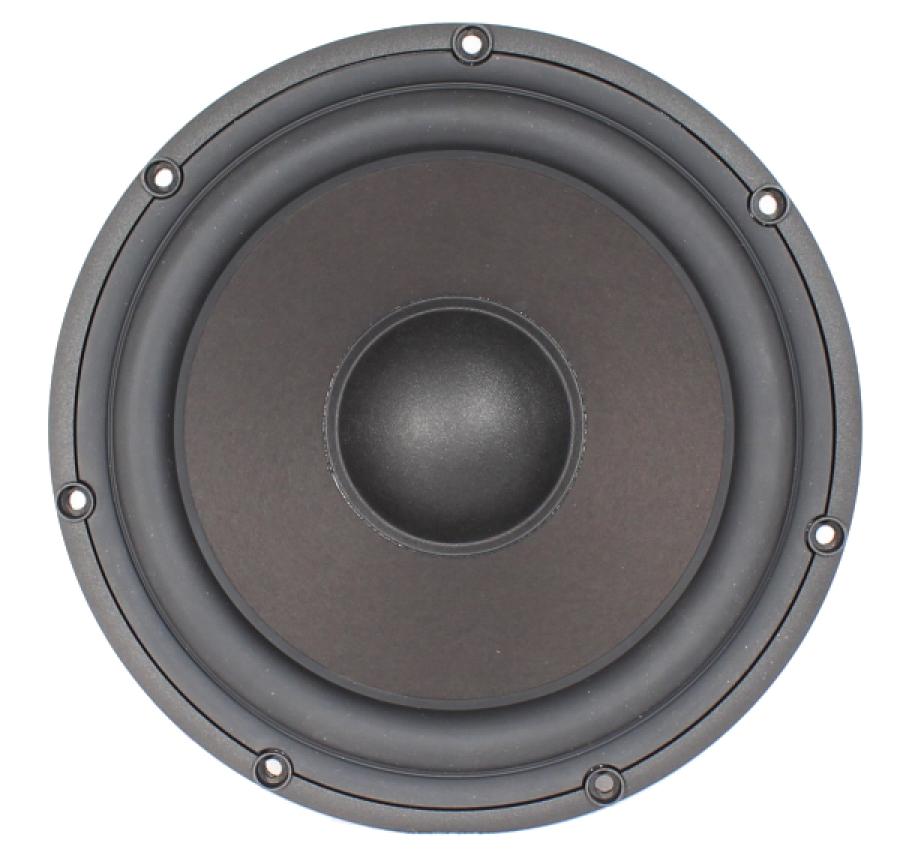

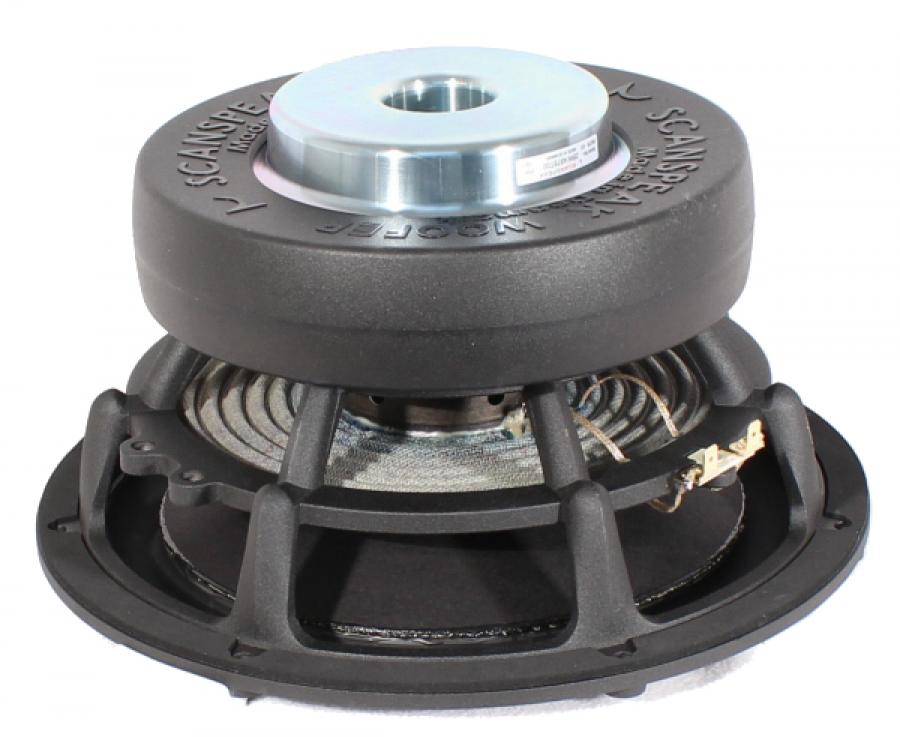

Scan-Speak 28W/4878T Revelator 11" Subwoofer
Manufacturer: ScanSpeak
Product ID: 28W/4878T00
Price:
$684.80
Overview
Scan-Speak Revelator 11" Paper Cone Subwoofer - 28W/4878T00- 280mm - 4 ohm
Scan-Speak Revelator 11" Paper Cone Subwoofer - 28W/4878T00- 280mm - 4 ohm
Spec Sheet PDF
The sealed box (please see below for some Madisound suggestions) used with a plate amplifier with bass boost might be a nice little subwoofer. The port length on the vented boxes is pretty long. Be sure you leave at least 3" to the back wall, preferably more.
The Revelator woofers and subwoofers feature very rigid cones in paper or aluminium that operate as a piston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-1) results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction. The 28W/4878T00 is a very powerful 28cm subwoofer, with its large 3” voice coil, extreme linear excursion and low resonance frequency it is perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.
Key Features:
Suggested Box Alignments:
Spec Sheet PDF
The sealed box (please see below for some Madisound suggestions) used with a plate amplifier with bass boost might be a nice little subwoofer. The port length on the vented boxes is pretty long. Be sure you leave at least 3" to the back wall, preferably more.
The Revelator woofers and subwoofers feature very rigid cones in paper or aluminium that operate as a piston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-1) results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction. The 28W/4878T00 is a very powerful 28cm subwoofer, with its large 3” voice coil, extreme linear excursion and low resonance frequency it is perfect to reproduce the deepest frequencies. It features a paper-sandwich cone with very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.
Key Features:
- Paper sandwich cone
- Spider with balanced tinsel leads
- 3” Voice coil, Titanium former and paper reinforced
- Patented Symmetrical Drive motor
- Extreme linear excursion (+/-14 mm)
- Stiff and strong die cast aluminium chassis
Suggested Box Alignments:
- 1.5 cubic feet sealed box for 3dB down of 48Hz and 6dB down of 32Hz
- 3.0 cubic feet with 3" vent by 13" long for 3dB down of about 22Hz
- 2.75 cubic feet with 3" vent by 15" long for f3 of 23Hz
- 2.5 cubic feet wtih 3" vent by 17" long for f3 of 25Hz
