SB Acoustics SB34SWNRX-S75 12" Subwoofer

Manufacturer: SB Acoustics

Be the first to review this product

Product ID: sb34swnrx-s75

$232.80

Product is out of stock

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

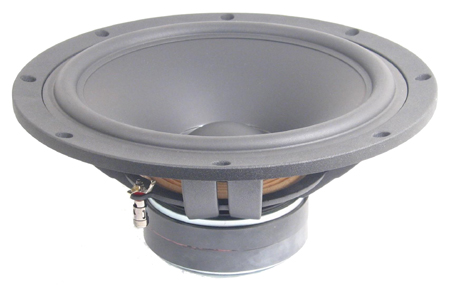

SB Acoustics SB34SWNRX-S75 12" "Norex" Natural Paper Cone Subwoofer -346mm- 6 ohm

SB Acoustics SB34SWNRX-S75 12" "Norex" Natural Paper Cone Subwoofer -346mm - 13.6" - 6 ohm

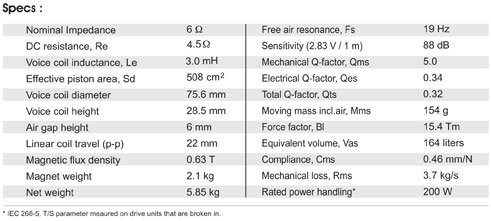

Spec Sheet PDF

For use as subwoofer. Ideal in vented box (see below). 11mm xmax!

Hard paper cone for improved piston operation (made in-house)
Vented pole piece for minimum compression
Vented cast aluminum chassis for optimum strength and low compression
3 copper voice coil (4-layer) for improved power handling
Long life silver lead wires
Low damping medium hardness rubber surround for improved linearity and power handling
Non-conducting fiber glass voice coil former for minimum damping

Some boxes you might try:

Sealed box of 1.5 to 2 cubic foot. F3 of 43Hz and F6 of 32Hz. Use your amplifer or DSP to boost the low end.

Ported box 2.8 to 3.5 cubic feet with 3" diameter vent by 12" long for an F3 of 28 to 27Hz. You are within X-max at 200 watt.

Not rated yet

Verified Purchase

Absolutely amazing bass driver

Reviewed by jcp22@mindspring.com on 09/19/2016

This bass driver and it's companion are absolutely "no holds barred" in their capabilities. The companion (SB34NRX75-6), while a bit less expensive, requires a 4 cu ft box for a vented alignment, and that meant building a new box, which kept me from buying it. Then this one came available, and the smaller vented alignment allowed me to use my existed five sided box. In addition to the amazing power potential of this driver, it simply sounds wonderful at all volume levels, and provides a much finer character to the low frequencies than the old Eclipse driver I had used for years. I had to really bite the bullet to spend this kind of money on a bass driver (I needed two for my system). Check out this video on the installation: https://www.youtube.com/watch?v=SWZyWeVQYd8
