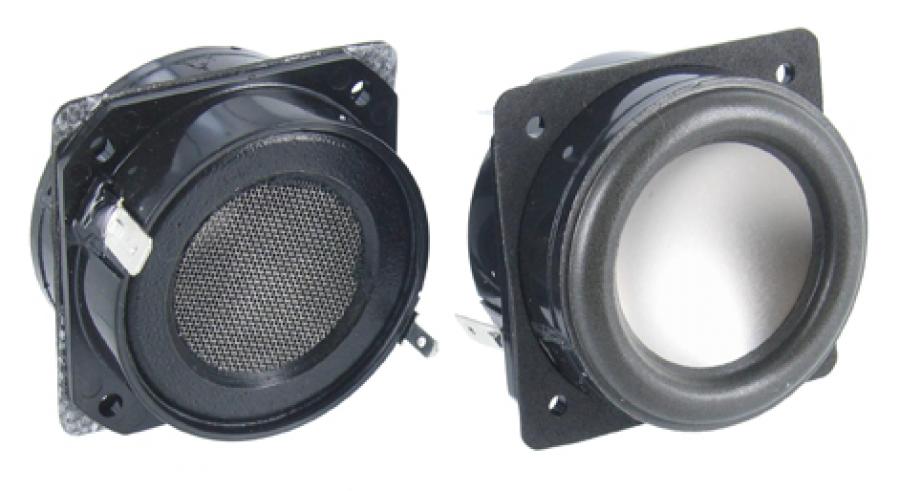

Aurasound NSW2-326-8AT 2" Titanium Full Range

Manufacturer: Aurasound

Be the first to review this product

Product ID: nsw2-326-8at

$34.95

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

Solder Tab version 2", 15-Watt, micro, full-range loudspeaker utilizes a large 33 mm diameter voice coil in an underhung short coil geometry, foam surround and a neodymium radial magnet (NRT). 84 dB sensitivity and 250 Hz to 15 kHz frequency response and 8 ohms impedance.

Aurasound 2" Full Range "Whisper"

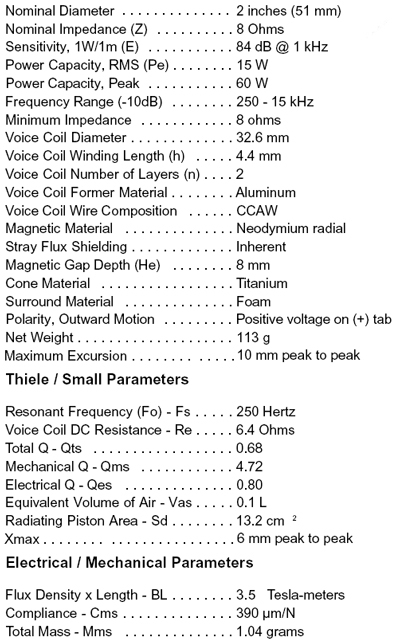

Spec sheet: Aurasound NSW2-326-8AT 2" Full Range

The NSW2-326-8AT version comes with tabs for quick connects or soldering. Specs for the NSW2-326-8AT and NSW2-326-8A-120 are the same.

The NSW2's have a large voice coil and long excursion for such a small speaker. They can play loudly and perform better than any other speaker of this size.

Features:

Frequency 250 to 15kHz
Titanium cone
Underhung voice coil
NRT neodymium magnet system
Inherently shielded
Foam surround
Frame: 49mm square
Overall Depth: 29.4mm
Larger 5.25mm (0.205") terminal is positive
Smaller 2.8mm (0.112") terminal is negative

NOTE: Larger tab is the +, smaller tab is the -

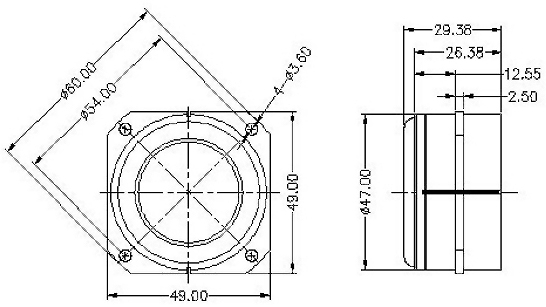

Tabs are not shown in the mechanical drawing

Not rated yet

NSW2-326-8AT

Reviewed on 09/27/2012

'I bought these from Madisound about 2 years ago as I was creating a 3 way front stage for my daily driver car. I matched them with a 1" tweeter and an 8" midbass driver on 300 watts rms power. They sound AWESOME!! Though only rated at 15 watts, they deliver stunning sound and incredible imaging for a speaker not designed for car use. In truth adding a tweeter was not necessary as they are capable of playing very high, but I wanted them for midrange and they worked out well. 2 yrs later in the front A-pillars of my car in the Hot San Diego sun and no signs of slowing down. I beat them from Mozart to Metallica. If they fail, ever I hope Madisound still carries them' Review by RIVER MACOMBER. Posted by Madisound.
