SB Acoustics SB65WBAC25-4 2.5" Aluminum Full Range

SB Acoustics SB65WBAC25-4 2.5" Aluminum Cone Full Range - 4 ohm

Fits the Fostex P650E Enclosure!

Use QC110 for the negative tab and QC187 for the larger positive tab.

Follow this link to the pdf specifications file.

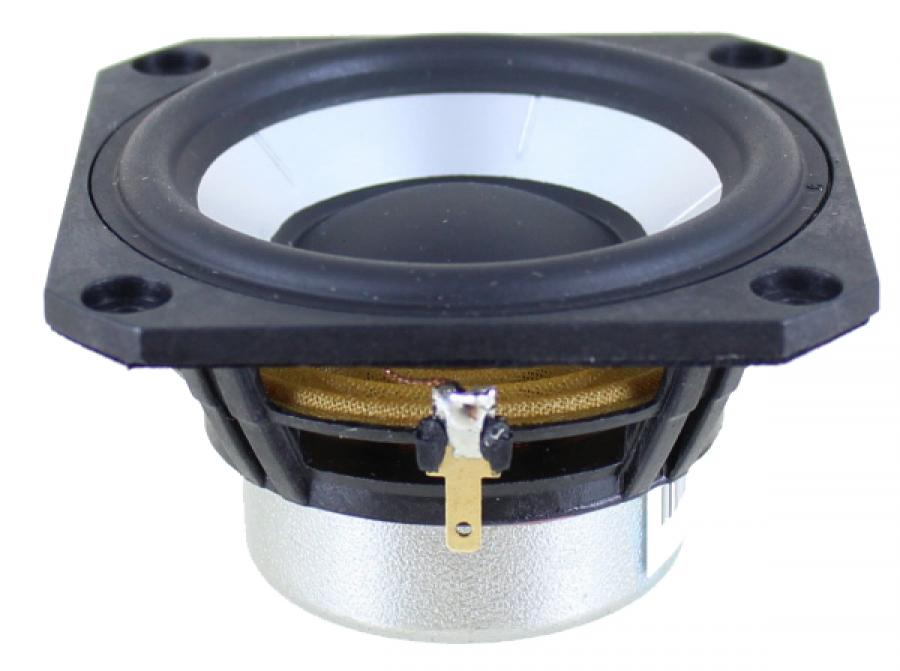

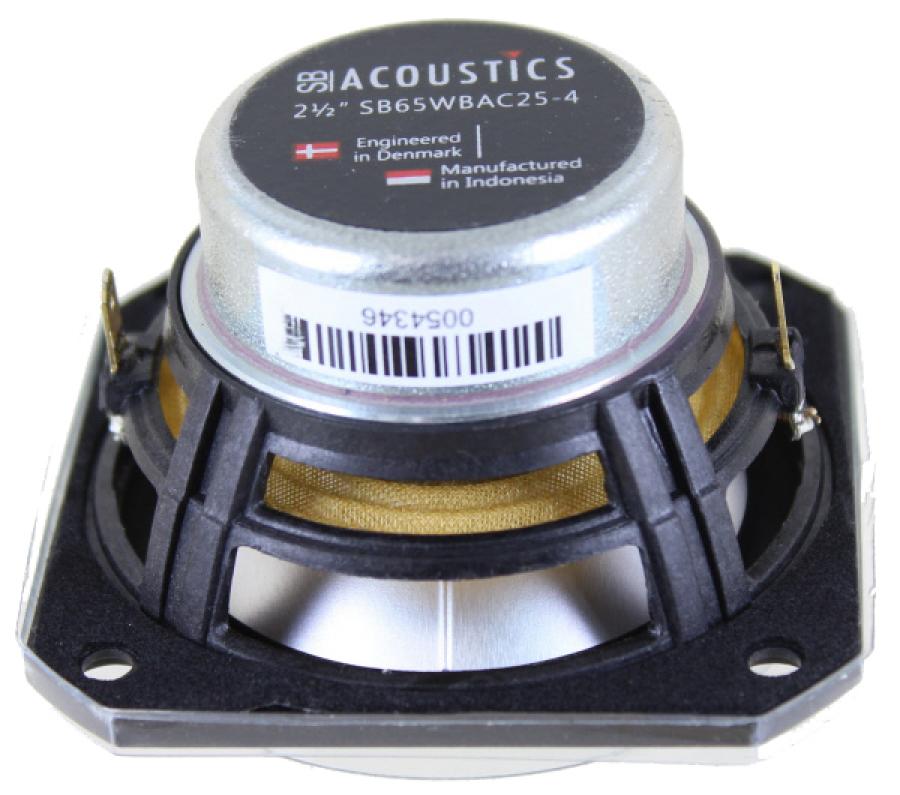

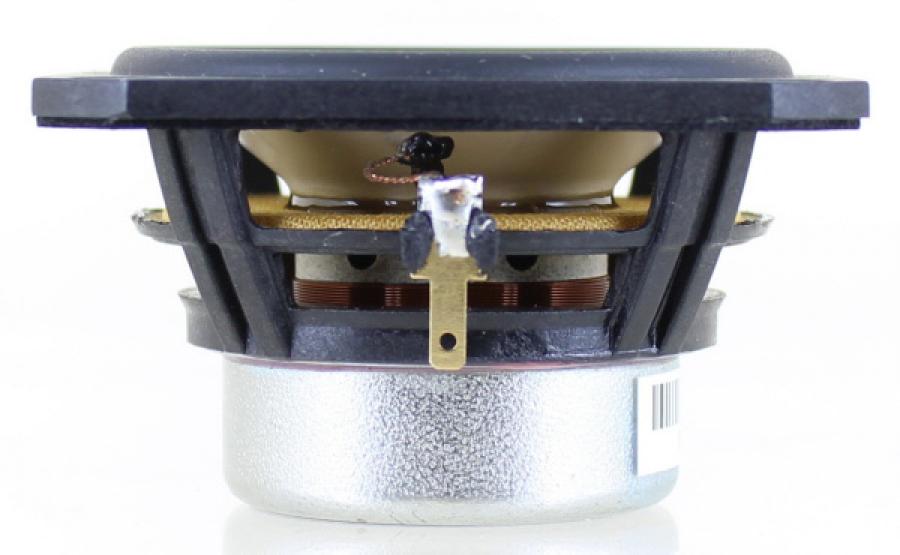

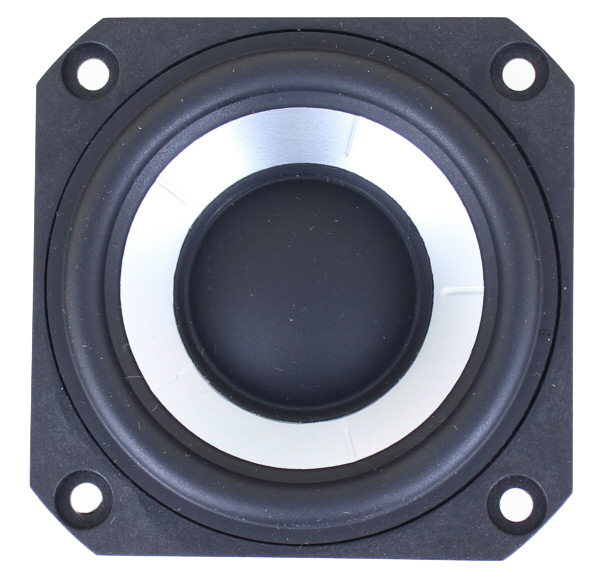

SB Acoustics 2.5" full range speaker with 64mm square polymer chassis, aluminum cone with resonance reducing indentations and low damping surround. This speaker is getting out beyond 20,000Hz with a rising response. That rise is thought to be beneficial to listeners whose hearing is rolling off in the upper frequencies.

In a half to one liter sealed box this speaker should get down to about 140Hz.

This speaker has many uses in sound bars, electronics, computer speakers, medical equipment, etc.

• Geometrically furrowed aluminum cone for extended usable frequency range
• Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability.
• Low damping surround and non-conductive voice coil former to ensure dynamics and an open/transparent sound character with excellent detailing/resolution.
• Linear neodymium motor system for reduced distortion.
• Vented voice coil former for reduced compression.

Larger terminal is positive.

Cut Out Diameter - 60.5mm
The large terminal is the positive terminal
