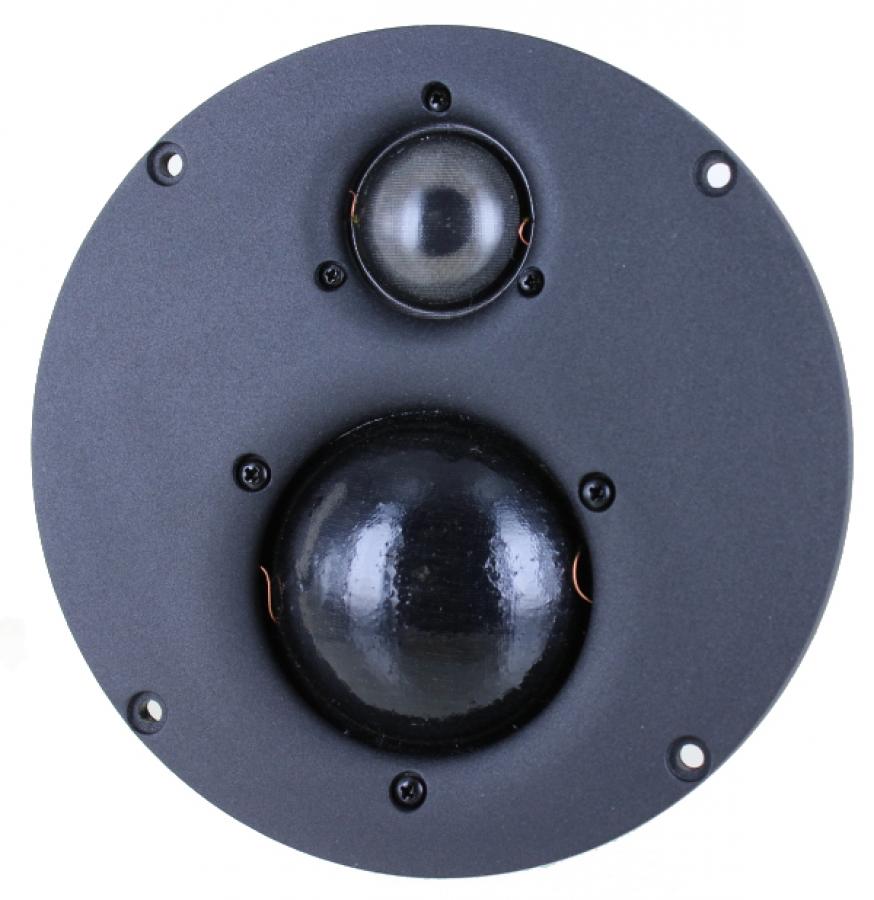

Photo of TM4055-8 Dome Midrange and Tweeter Combo

Photo of TM4055-8 Dome Midrange and Tweeter Combo back

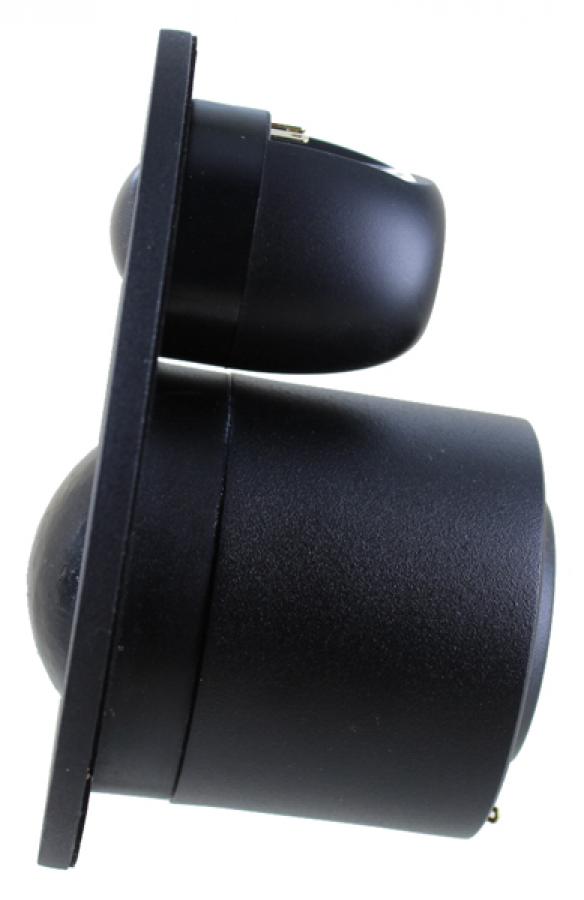

Photo of TM4055-8 Dome Midrange and Tweeter Combo side, each with own chamber

Morel TM4055-8 Tweeter-Midrange

Manufacturer: Morel

1 Customer Review(s)

Product ID: TM4055-8

$266.00

Volume Pricing

10 - 50
10% off

Add to wish list E-mail to a friend

Overview

Morel TM4055-8, 28mm/54mm TweeMid Combo, Neo Magnets, 8 ohm, 120W/200W

Morel TM4055-8 28mm/54mm Tweeter-Midrange Combo, Neo Magnets, 8 ohm, 120W/200W

New Morel hybrid tweeter/midrange incorporating a hand-coated 2" soft-dome midrange and 1-1/8" tweeter, sharing a 5.6" round mounting plate in optimal proximity. The strong neodymium motor provides good power handling and a smooth, linear response with good off-axis output in the tweeter region. 143mm (5.6") outer diameter.

Seamless Mid and Tweeter combination
2.1" Acuflex™ hand coated soft dome
2.1" Large Hexatech™ Aluminum voice coil
Internally damped, Aluminum rear chamber
Wide range linear performance
High power handling

Midrange Specifications
• Power handling: 200 watts RMS/1000 watts max • VCdia: 2.1" • Le: 0.17 mH • Impedance: 8 ohms • Re: 6.5 ohms • Frequency response: 365-4,200 Hz • Fs: 365 Hz • SPL: 86.5 dB 2.83V/1m • Vas: 0.03 cu. ft. (0.08 liters) • Qms: 0.84 • Qes: 1.32 • Qts: 0.51 • Xmax: 1.0 mm

Tweeter Specifications
• Power handling: 120 watts RMS/1000 watts max • VCdia: 1" • Le: 0.07 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.42 ohms • Frequency response: 640-20,000 Hz • Fs: 640 Hz • SPL: 86.5 dB 2.83V/1m • Qms: 1.28 • Qes: 1.55 • Qts: 0.70.

Frequency

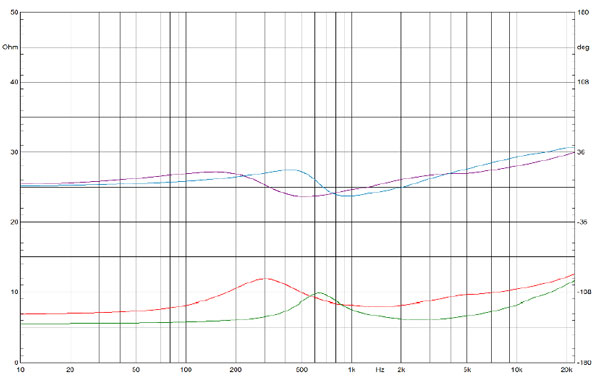

Impedance

1 Customer Review(s)

Morel TM4055-8 is smooth...

Reviewed by Speakeasier on 03/26/2021

Became a Madisound customer back in the early 2000s with two of their Cygnet II kits and have been a fan ever since. I recently purchased two of the Morel TM4055-8 Tweeter-Midrange units and I just love them. The best way to describe them is "smooth." They get better with each subsequent use. No harshness at all, just smoothness. Am using them with three-way 2nd-order 625Hz/5000Hz crossovers I had from a previous project, and I put them in small boxes I had from another old project. A great thing about them is their wide, wide dispersion, probably due to the hemispheric design of the tweeter and midrange. They are somewhat pricey, but they're worth every penny as far as I'm concerned. Am currently using them with my 15-inch Karlson cabinets, but am building separate 8-inch woofer boxes to better match with them. I've used components from KEF, JBL, Seas, Dynaudio, and Peerless, and these Morel units are excellent. I do hope this helps.
