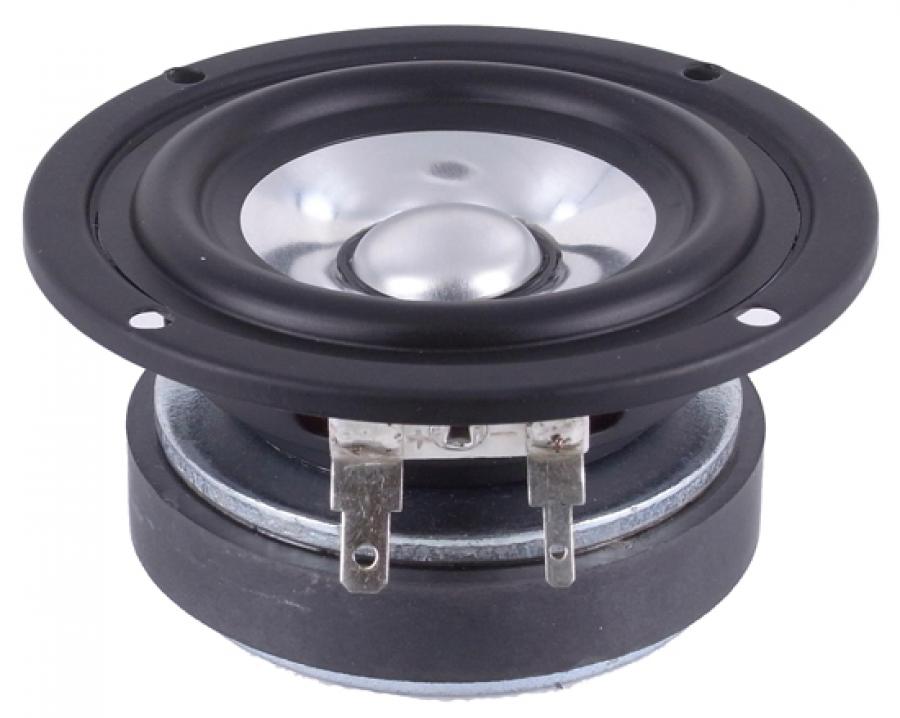

Fountek FE85 3" Aluminum Cone Full Range

Fountek FE85 3" Aluminum Cone Full Range
Click to enlarge
Price: $10.90


  • Buy 10 - 1,000 and get an additional 10 % off
Manufacturer: Fountek
Product ID : FE85
Weight: 1.30 lbs
Manufacturer: Fountek
E-mail to a friend


Fountek FE85 3" Full Range

  • Aluminum Cone
  • Stamped steel frame
  • Rubber surround
  • Ceramic magnet
  • Frequency range 125Hz to 20kHz
  • Low distortion and fast transient response
  • 90.2mm frame (3.54")

In 0.5 to 1 liter enclosure with stuffing your F3 is about 195Hz.

In 1.5 liter with 1" vent by 3" long your F3 is about 95Hz.  You'll have to keep it under 10 watts in this box.

Comment on Facebook

Product Reviews

Login or Register to write a review.
Reviewed by bought "Fountek FE85 3" Aluminum Cone Full Range" on our website
05/01/2017 - 12:20:36 PM
Fun experiment
With the frequency response graph looking as flat as shown, I thought I'd play around with this little driver - and at $11 each, why not? I'll spare you the details, but I ran these full range in a ported cabinet with an 8" woofer. the woof is crossed over about 800hz. The imaging and upper frequency detail is outstanding - not only for $11, but for drivers at most any price range. The big downer that I noticed (although it is getting better with break-in) is that snare drums just don't pack any punch. That is where it is most noticeable. I'm going to play around with different woofers and x-over design. If I can figure out the drum issue, this will be the best cheap speaker design that I have ever heard/created. Definitely worth playing around with! Do I like them better than my Markaudio's? Not sure yet...
Reviewed by bought "Fountek FE85 3" Aluminum Cone Full Range" on our website
07/31/2012 - 06:53:52 PM
Fabulous little midrange for Car Front Doors!
Hi Folks,
I used a pair of these as high in the front doors of a 2007 Toyota Highlander as I could mount them, a few inches below the window and door switch modules. I connected them out of phase with the 5.25 inch full range pioneer 2 ways lower in the doors, using only a 65 mfd bennic NP electr. cap for a crossover.
My 2007 highlander did not have midrange speakers in the dash as the newer ones do, and absolutely no midrange makes it to the driver or passengers's ears from the low door mounted front (or rear) speakers. These, mounted high, with broad dispersion, fulfilled that need perfectly! They are astoundingly smooth frequency response. And while I don't expect to be able to drive them with a huge amount of power, they do just fine in this use.
