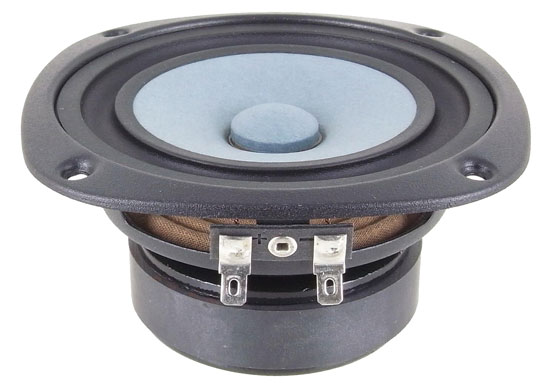

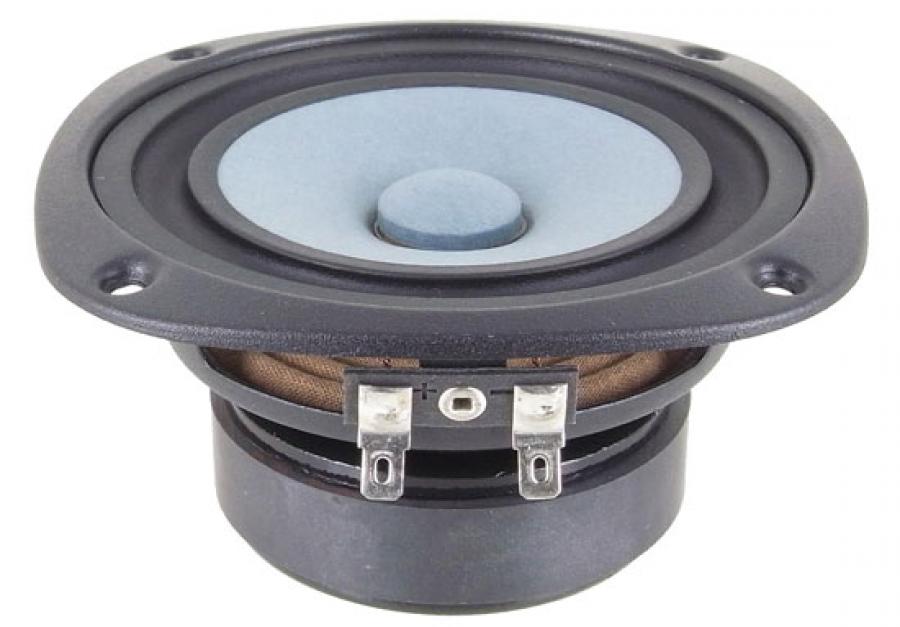

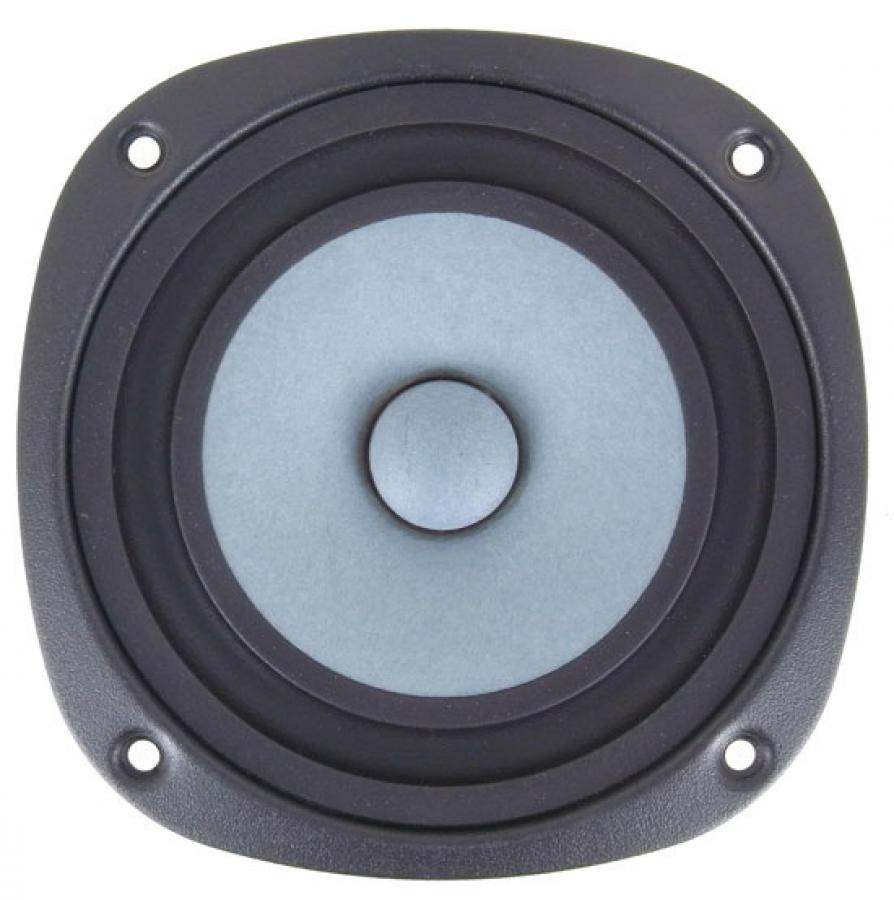

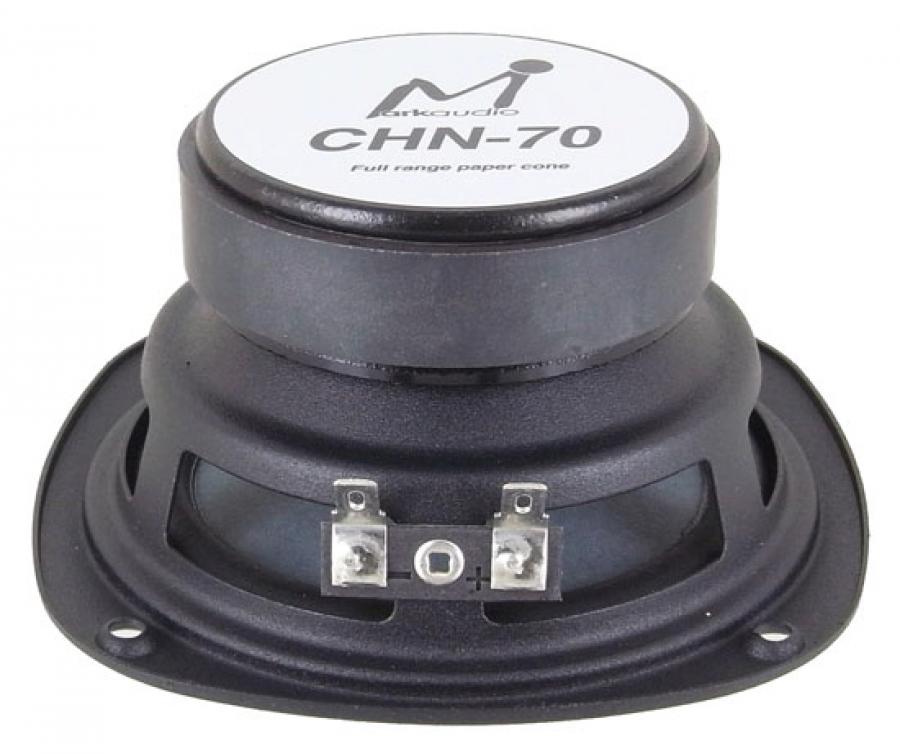

Markaudio CHN-70 4" Paper Cone Full Range

CHN-70 4" Paper Cone Full Range- 113mm rounded square- 6 ohm

Fantastic little driver for small sealed box / nearfield use, better sound quality than consumer drivers. Great for Soundbars!

High-performance 4.4" (edge-to edge) rounded-square Full Range driver featuring high-tech steel basket and paper cone. The CHN-70 frame measures 125mm diagonally and 113mm across. Depth from back of flange is 52mm.

Link to CHN-70 pdf file download

The CHN70 is a Full Range design for use in many audio applications. Designed by Mark Fenlon and Evan Yu for use by audio end-users who want a high performance driver at a lower cost.

• Full Range operation (45Hz to 20kHz in box)
• Natural sound (near flat response)
• Long throw power-train design (Mech Xmax = 4mm 1 way)
• Heavy duty pressed steel frame, damped design
• Easy surface mounting installation

The cone, coil and suspensions are all-new design. The profile shape is unique to this driver, to give it a neutral musical tone. The frame is made from 0.8mm high quality pressed steel with synthetic damping coating to reduce vibrations and for best environmental protection. The CHNʼs sound character is natural, especially suitable for vocal reproduction.

Frugal Horn MK3

Vented box standmount

Pensil N70

Bipole standmount

Compact series multichamber

Vented floorstander

CHN70 square section array

CHN70 Compact-square-section-standmount

CHN70-compact-square-section-array

CHN70-compact-hybrid-omni

The CHN70 is suitable for sealed and ported box designs from 4 litres to 12 litres volume. Other box designs can also be used. In a 0.1 to 0.15 cubic foot sealed box (about 4 liters), you should have a 3dB down response at about 119Hz. In a ported box of 0.2 cubic feet with a 1.5" diameter vent by 4" long (or 1" Ø x 1.5" long), your f3 is about 70Hz. Try searching on CHN-70 at http://www.diyaudio.com/.

Small to medium sized speakers are usually lower power designs. The power rating is given in the technical data for each audio driver. For a reliable long service life, please operate your new speakers with care. For the first 100 hours, operate them at very low volumes. After this period, gradually increase the volume to a normal listening level. If you see the cone of the speakers making large movements, immediately turn the volume down. This will protect the speaker and your human hearing from damage. Factory mechanical defects for a period of 2 year. Excessive hard use (overdriving) and other damage caused during customer use is excluded from our warranty.

QC205R & QC205B fit this driver.
