Markaudio Pluvia Seven PHD 4" Paper Cone Full Range
Volume Pricing
10% off
Overview

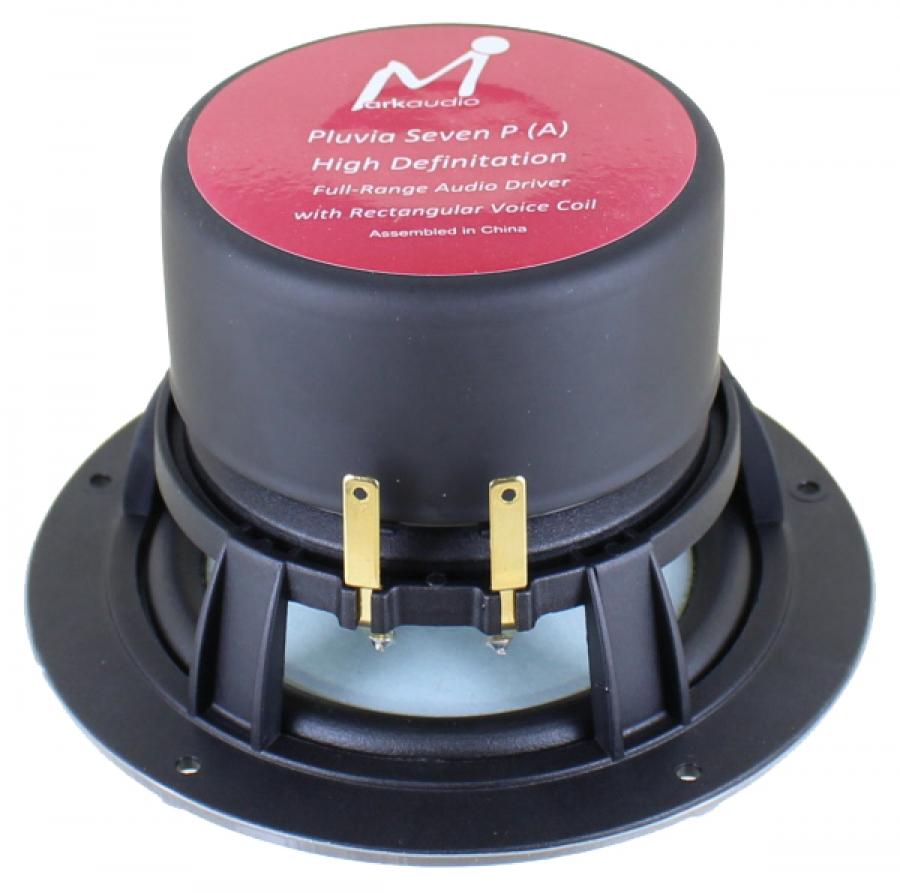

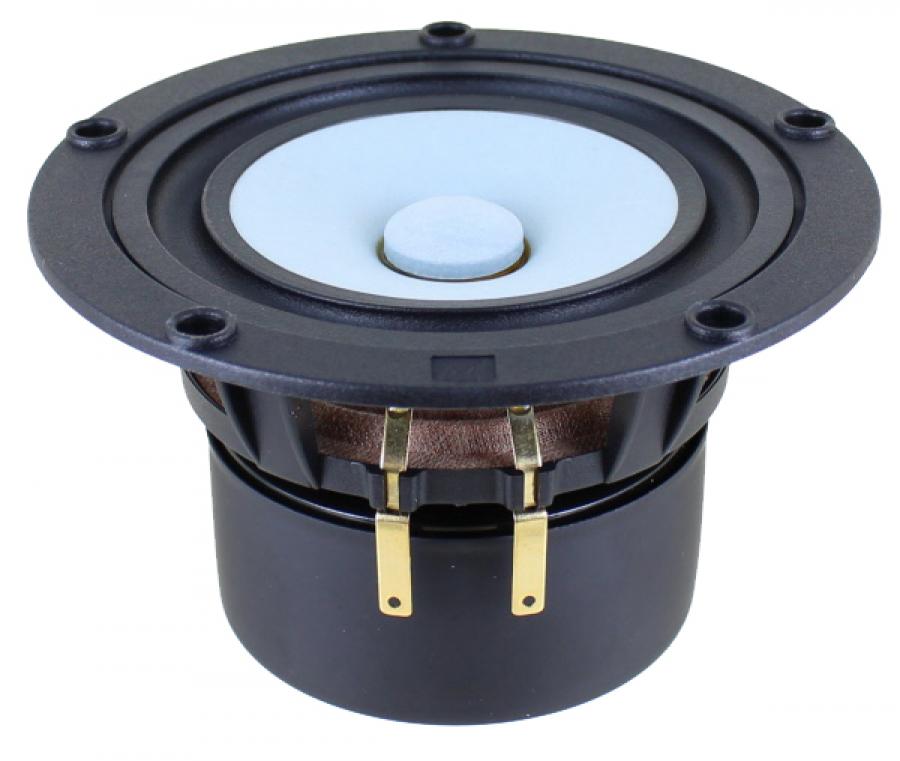

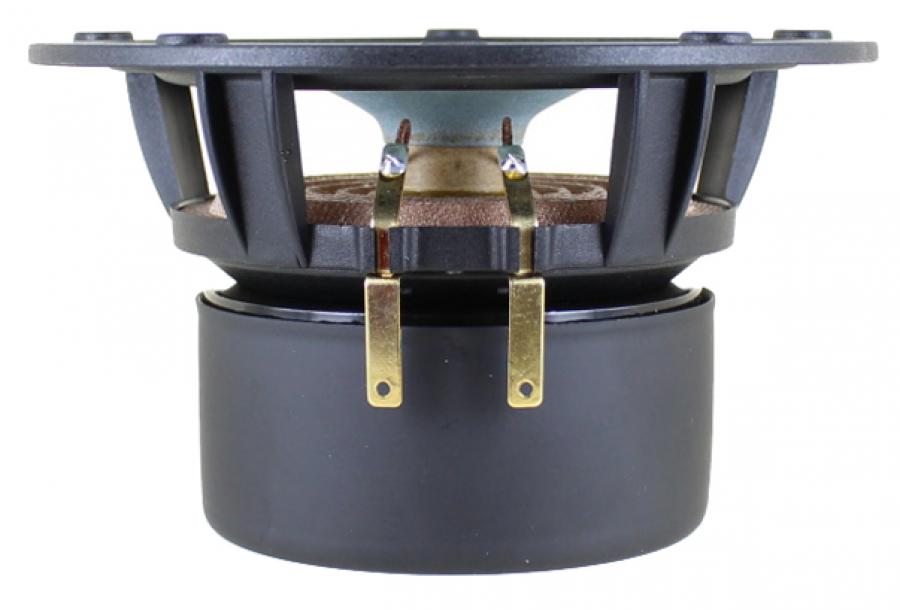

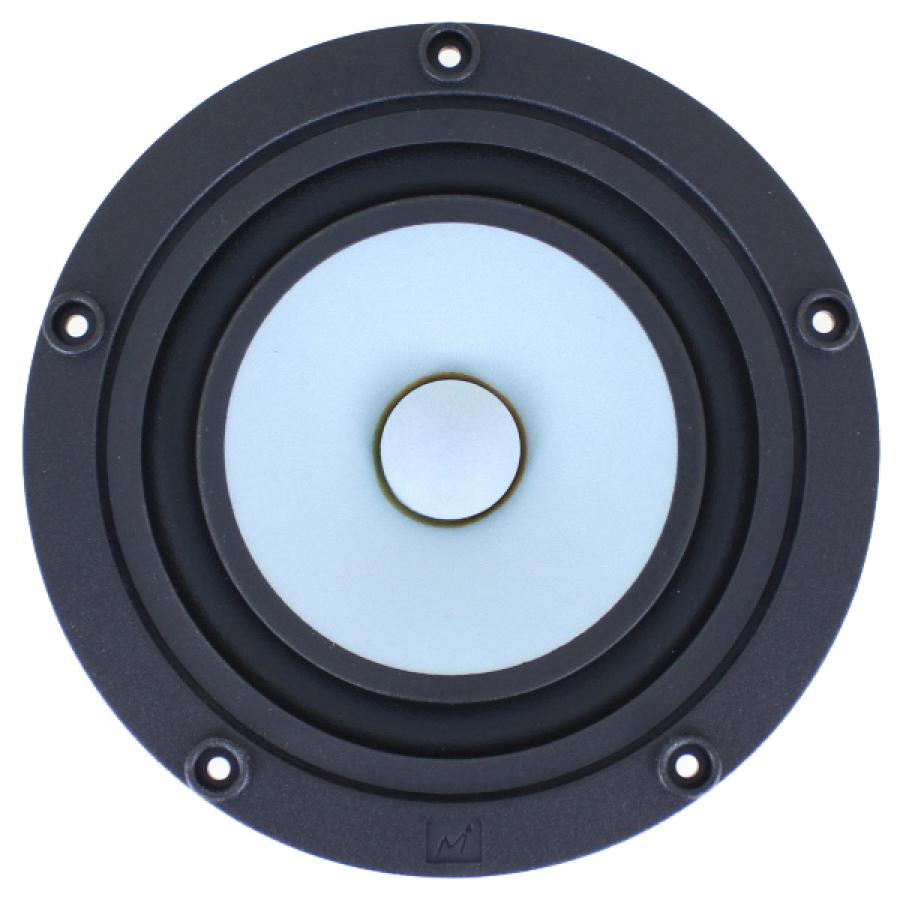

Markaudio Pluvia Seven PHD 4" Paper Cone Full Range- 122mm- 4 ohm
High Qts ideal for nearfield / small sealed box
The new paper-cone Pluvia 7PHD was developed specifically for the Japanese and Asian markets, and its response balance was carefully engineered to provide a shelved down treble and emphasised upper midrange output to address specific regional requests. The attractive paper cone, suspension and low-mass coil, wound in high-purity rectangular section
copper are unique to this model, and the Thiele / Small characteristics engineered to allow surprising bass performance from a compact drive unit. The frame is the familiar, high quality Pluvia design, which may be conveniently surface or flush-mounted, and has a very open design, allowing good air-flow to the rear of the cone.
The sound balance is warm, with emphasised upper midrange, and soft treble. Jazz followers in Asia played a role in the final tuning of this driver. Those enthusiasts into vintage and mono recordings using warm tube (valve) amplification may have a particular interest in this driver.
In 0.15 cubic feet (4.2 liters) sealed you are 3dB down at 115Hz.
In 0.3 cubic feet with a 1.5" diameter vent by 3" long, you are 3dB down at 55Hz.
Small to medium sized speakers are usually lower power designs. The power rating is given in the technical data for each audio driver. For a reliable long service life, please operate your new speakers with care. For the first 100 hours, operate them at very low volumes. After this period, gradually increase the volume to a normal listening level. If you see the cone of the speakers making large movements, immediately turn the volume down. This will protect the speaker and your human hearing from damage. Factory mechanical defects for a period of 1 year. Excessive hard use (over-driving) and other damage caused during customer use is excluded from our warranty.
