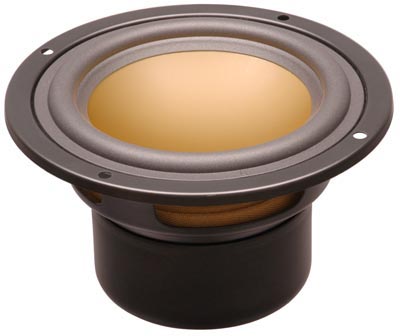

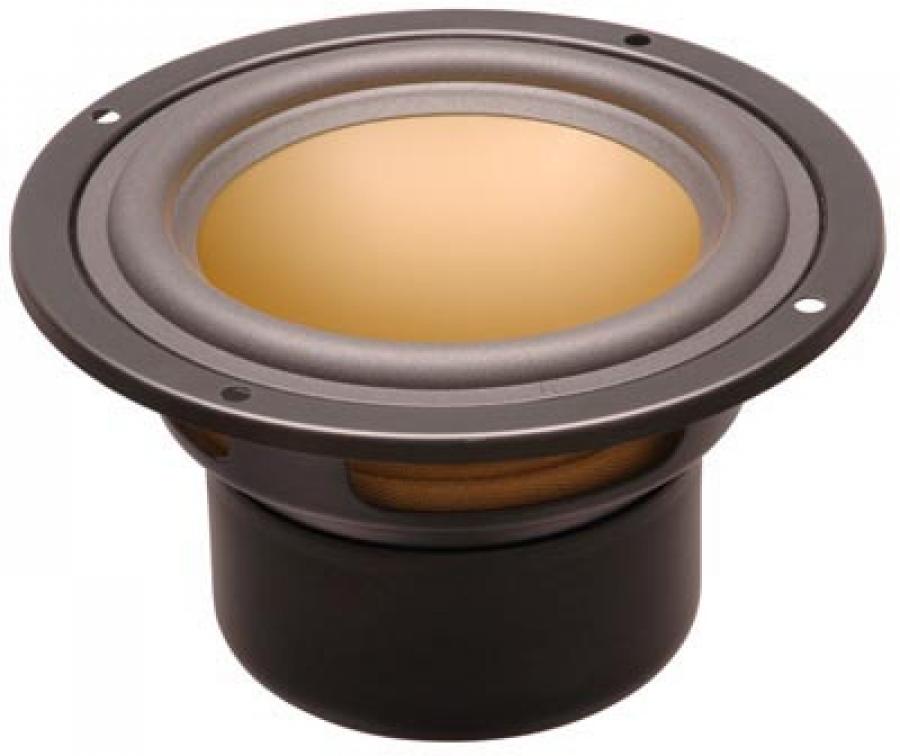

Hi-Vi M4N 4" Wide Range Woofer, Copper Color Cone

Hi-Vi M4N 4" Wide Range Woofer, Copper Color Cone
Click to enlarge
Price: $11.70

Purchase

  • Buy 10 - 10,000 and get an additional 10 % off
Manufacturer: HiVi
Product ID : m4n
Weight: 2.20 lbs
Manufacturer: HiVi
E-mail to a friend

Description

Hi-Vi Research M4N Full-Frequency 4" mini-woofer, wide range

  • Copper color aluminum cone
  • Stamped steel frame
  • Advanced alloy (magnesium and aluminum) cone, coated with special damping material
  • Optimum recovery CONEX supporting system, having very good stiffness and dynamic stability, improving the acoustic features of the speakers.
  • High power handling, heat-resistant Kapton voice coil former and heat-resistant CCAW voice coil wire
  • Finite Element Analysis for shielded magnetic system with long-throw linear excursion design, dynamic and low distortion.
  • Finite Element Analysis for high rigid SPCC frame, prevents the parasitic structural resonances
  • Using leading technology of Small/Thiele parameters
  • Suitable for midrange, surround speakers in a home theatre system, and also suitable for computer multimedia speakers
Nominal Impedance (Z)(Ω) : 8
Resonance Frequency (Fs)(Hz) : 69
Nominal Power Handling (Pnom)(W) : 15
Max Power Handing (Pmax)(W) : 30
Sensitivity (2.83v/1m)(dB) : 82
Weight (M)(Kg) : 0.60
VC Diameter (mm) : 20
DC (Re)(Ω) : 6.5
VC Length (H)(mm) : 9.0
VC Former : CCAV
VC Frame : Kapton
Magnet System : Shielded
Magnet Former : Ferrite
Force Factor (BL)(N/A) : 3.1
Gap Height (He)(mm) : 3.0
Linear Excursion (Xmax)(mm) : 3.0
Suspension Compliance (Cms)(uM/N) : 1080
Mechanical Q (Qms) : 5.39
Electrical Q (Qes) : 1.35
Total Q (Qts) : 1.08
Moving Mass (Mms)(g) : 4.8
Effective Piston Area (Sd)(m2) : 0.0053
Equivalent Air Volume (Vas)(L) : 4.3
Cabinet Type : Sealed
Recommended Box Volume(Vb)(L) : 4
-3dB Cut-Off Frequency(F3)(Hz) : 70

Comment on Facebook

Product Reviews

Login or Register to write a review.
Reviewed by rhauf1
04/29/2013 - 12:01:23 AM
Great little woofer
I built a pair of small bookshelf speakers with these woofers mated with HiVi's T20-8 tweeter, using the recommend sealed enclosure size. I crossed them over at 5Khz, 12db/octave. The speakers came out great, vocals (and everything) sound very natural and lifelike. these woofers sound clean and tight.
