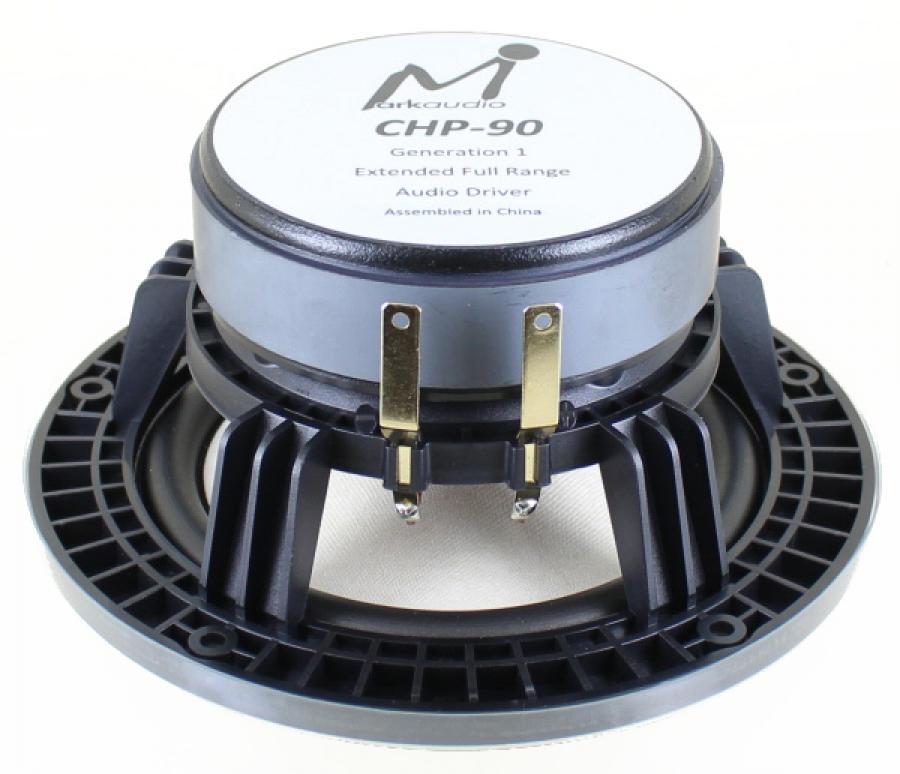

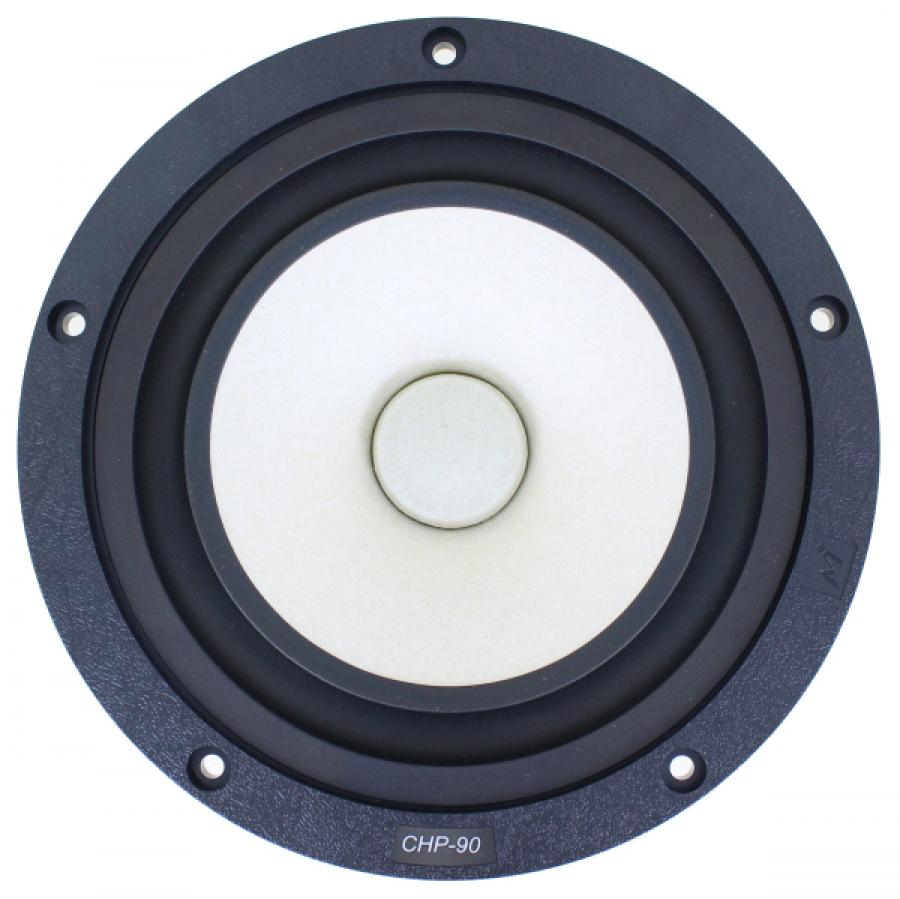

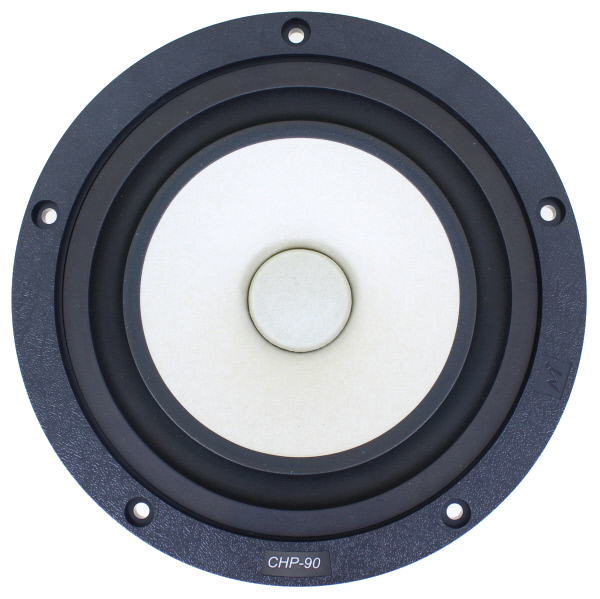

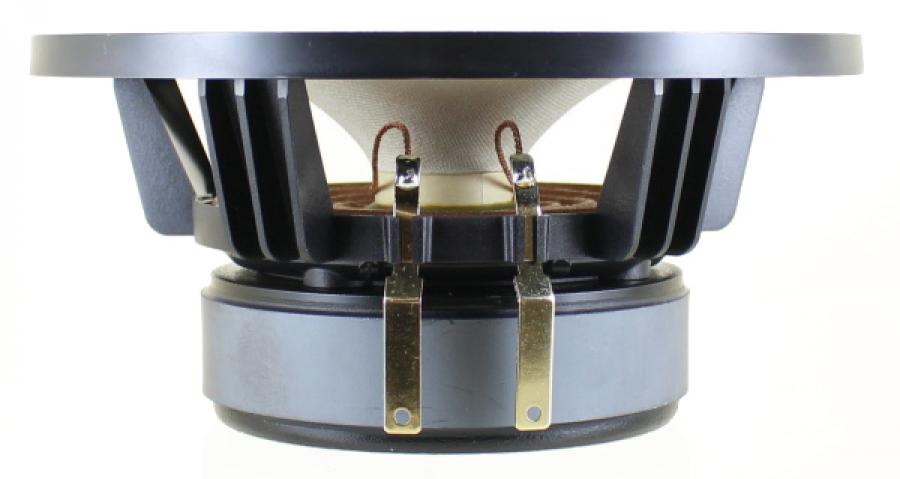

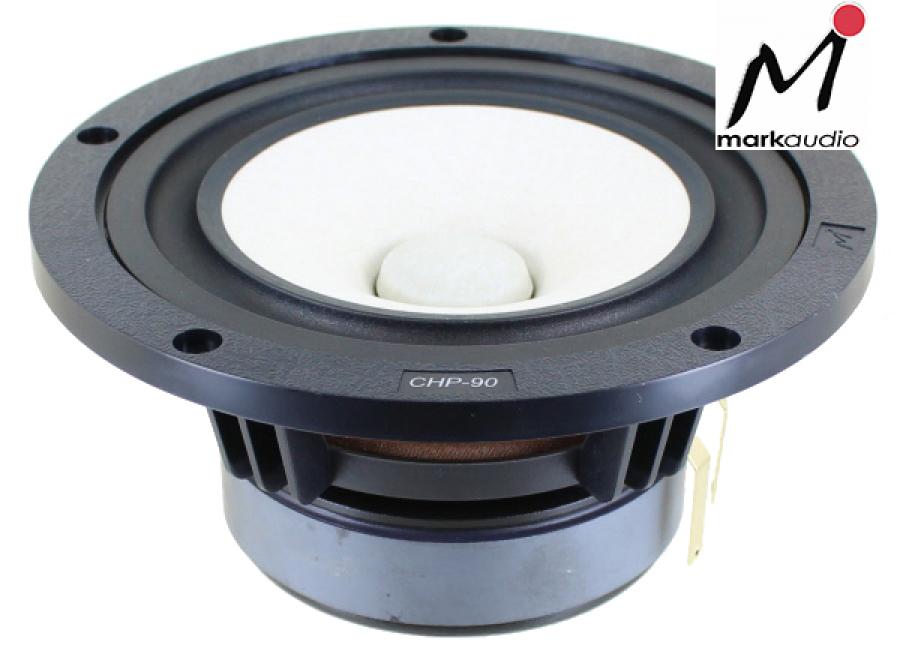

Markaudio CHP-90 5" Paper Cone Fullrange
Overview
Low enough Q for ported box. See vented box plans and project links at bottom of this page. New from MarkAudio! The CHP90 is an attractive Full-Range multi-purpose drive unit suitable for use in variety of medium size loudspeakers applications, or as part of a multiway system. For single full-range point-source purist applications, the CHN90 is highly capable. The cone is formed from paper, mica and fibreglass materials creating high stability in the emitting surface across the usable frequency range.
Datasheet PDF
| FS | 48.53 Hz |
| VAS | 20.05 Ltr |
| RE | 6.2 Ohm |
| QMS | 2.2008 |
| QES | 0.4354 |
| QTS | 0.3635 |
| Bxl | 4.8444 Txm |
| SPL | 89.2353 |
| SD | 0.0085 m² |
| CMS | 1.9898 mm/N |
| MMS | 5.5051g |
| RMS | 0.7489 WM |
| MMD | 4.9619g |
| L1kHz | 0.2642 mH |
| L10kHz | 0.0880 mH |
| PWR | 40 Watts (Nom) |
| X MAX (Mech) | +/- 7mm (One way) |

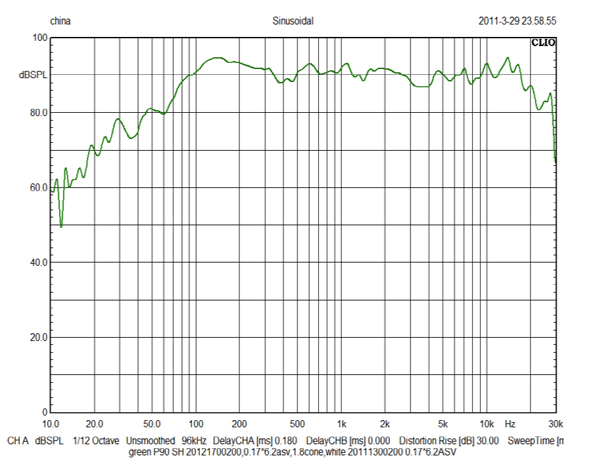

F Zero is 48Hz, VAS is +20 Litres and SPL 89.2 dB. Useable frequency range (depending on box design) is from 37Hz to 28KHz rated at +89dB in many applications. The frequency response curve is near flat, making the CHN90 ideal for purist applications. The central mid-range is benign, near flat response, from 1KHz to 6KHz giving end-users and custom builders the potential to use the CHP90 as a mid-field driver in larger multiway applications, useful for balancing out larger radiated surface outputs from big bass units.
The CHP90 also has potential for use in 2 way applications as a bass-mid driver. Most Markaudio drivers have a purpose designed frequency lift in the lower ranges (typically 100Hz to 500Hz) to compensate for baffle step losses. The CHP90 is useful to these applications where end-users and loudspeaker makers need a wider choice on frequency cross-over point selection. The CHP90 shares the custom, modified-ABS chassis design with the CHR90. All moving parts (powertrain) are new and custom made for this driver. Much work has been done to make the CHP90 a versatile driver and extend the well-known performance characteristics of Markaudio’s products.



Links to Cabinet Designs:
CHP90 traditional vented (pictured above)
Great for Rear Surrounds
Very good, the xmax is real.
Am I getting the deepest bass? No, the chp90 is not for that. But it can boogie with bass heavy tracks. Meh, just let a sub handle it.
If you just want to enjoy the music, don't want to deal with crossover work....get this driver. Throw it in a box with Madisound recommendations. To my ears, these drivers do not need a baffle step circuit. Just burn in the drivers per Markaudio advice.
