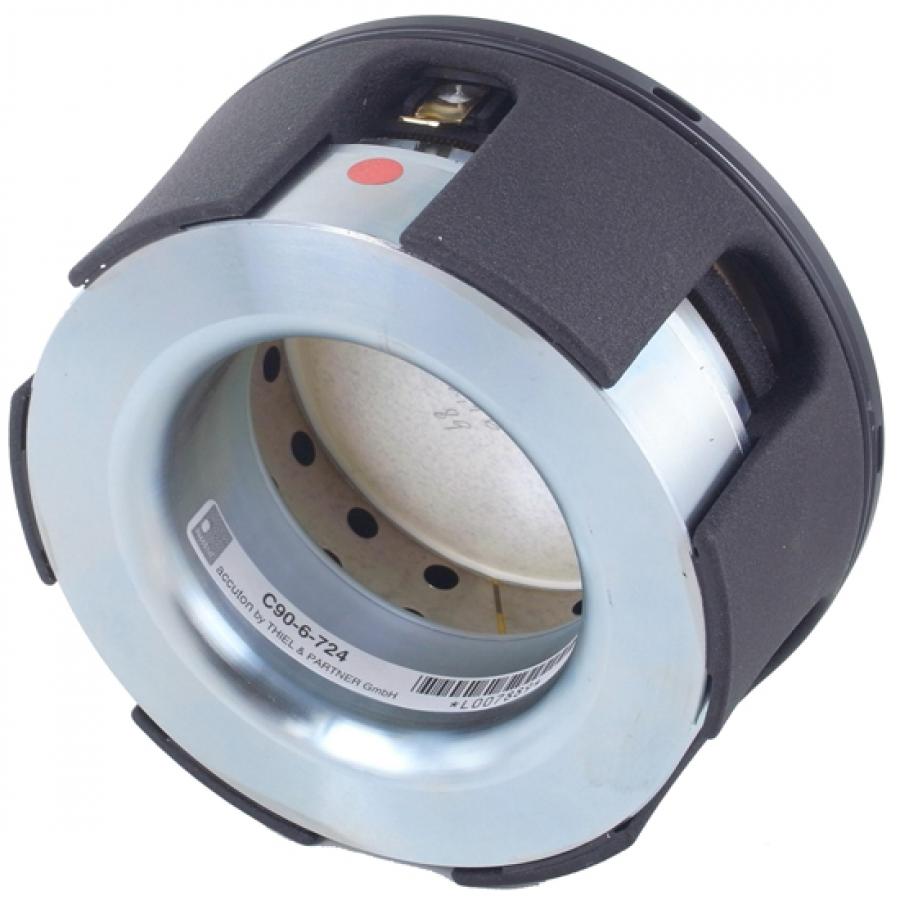

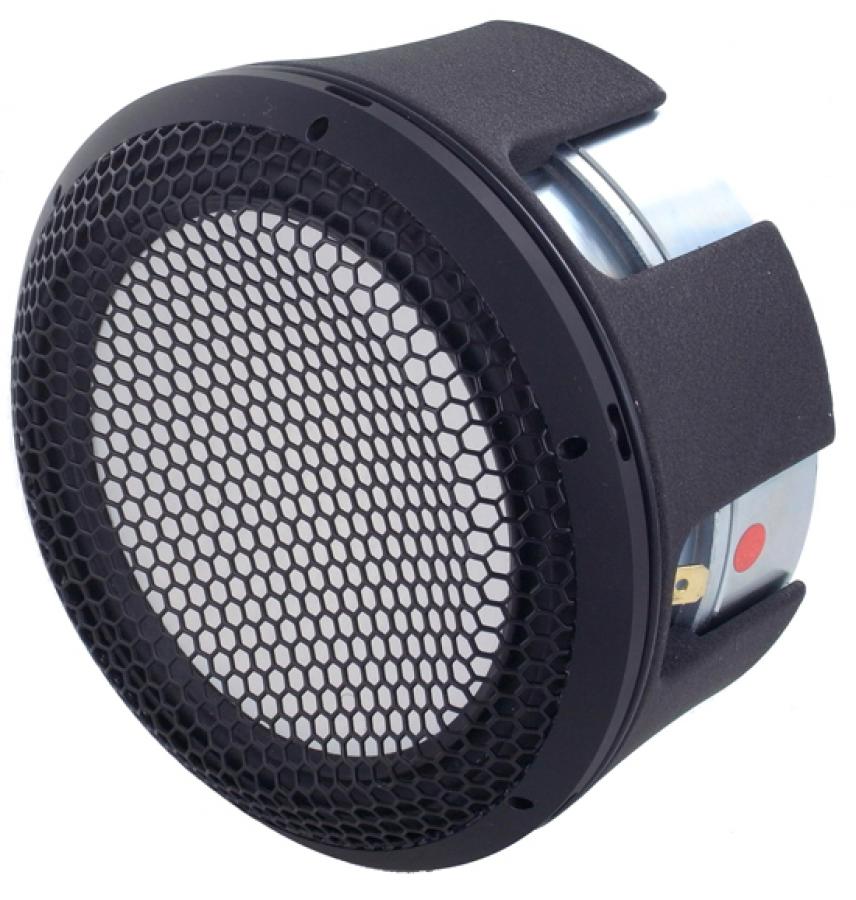

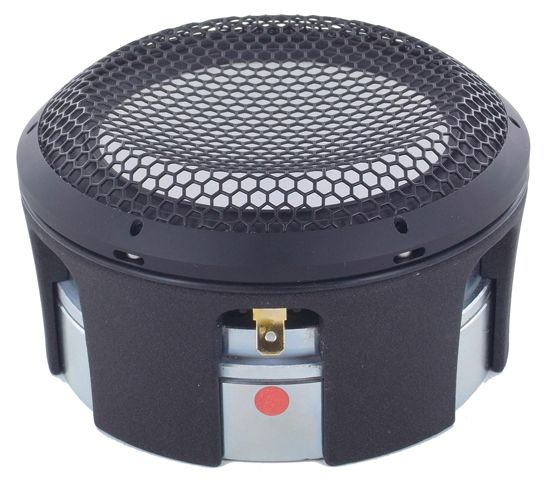

Accuton Cell C90-6-724 5" Ceramic Midrange

Manufacturer: Accuton

Be the first to review this product

Product ID: C90-6-724

$863.00

Add to wish list E-mail to a friend

Overview

Super-high fidelity 5" CELL bass - midrange driver with ceramic dome. An ideal acoustical center has been achieved, which is identical with the CELL tweeters. Its novel designed underhung motor does not cover the rear of the dome, eliminating the chance for reflections and energy storage. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. Accuton recommends the C90-6-724 for an application from 60 Hz – 6000 Hz.

Special Order, Lead Times Vary

Accuton Cell C90-6-724 5" Ceramic Midrange

Spec Sheet PDF

FULL FEATURED CELL CONCEPT
IDEAL ACOUSTICAL CENTER
NO REFLECTIONS AT THE BACKSIDE
UNDERHUNG MOTOR DESIGN
60 Hz - 6 KHz in VENTED BOX

The C90-6-724 is a 5" bass/midrange driver with ceramic dome, being the first in an entirely new approach to accuton speaker design. An ideal acoustical center has been achieved, which is identical with our tweeters. Its novel designed underhung motor does not cover the backside of the dome, eliminating the chance for reflections and energy storage. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. We recommend our C90-6-724 for an application from 60 Hz – 6000 Hz.
