Home > Speaker Drivers > Midrange Drivers > Approx 5" Midrange
(0)

SEAS Excel M15CH-002 (E0043) 5" Nextel Cone Midrange

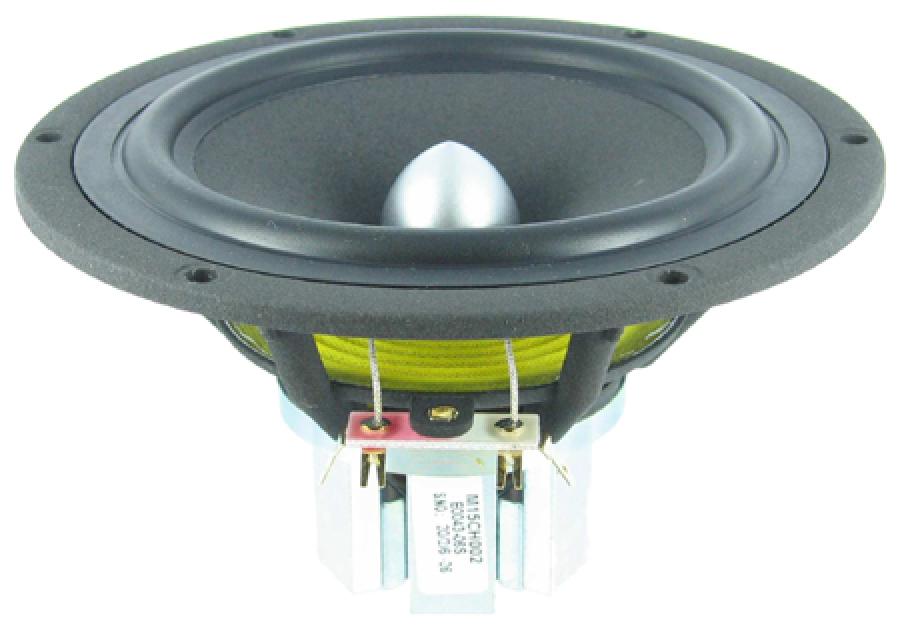

Photo of SEAS Excel M15CH-002 (E0043) 5" Nextel Cone Midrange
Click to enlarge
Price: $228.90
Tweet

Purchase

  • Buy 10 - 10,000 and get an additional 10 % off
The selected item is out of stock, please select a different item or combination
Manufacturer: Seas Excel
Product ID : m15ch-002
Weight: 3.30 lbs
Manufacturer: Seas Excel
E-mail to a friend
Please complete this form.
All fields are required.

Captcha


Seas Excel

Description

SEAS Excel M15CH-002 (E0043) 5" Nextel Cone Midrange

The M15CH002 is a 15cm (5”) cone midrange driver capable of a most neutral, transparent sound reproduction.

  • The low distortion and noise generated by this driver set a new standard for midrange units.
  • A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion resulting in low coloration in the critical midband.
  • Patented HEXADYM magnet system of acoustically transparent design to avoid cavity resonances and air flow noise. The magnet system based on 6 small, radially magnetized neodymium blocks is compact in order to reduce the reflexion of sound energy to a minimum.
  • Heavy copper rings mounted above and below the T-shaped pole piece to reduce non linear and modulation distortion and to increase overload margin.
  • A chrome plated brass phase plug enhances the performance of the copper rings and improve heat conduction away from the pole piece.
  • An extremely stiff and stable injection moulded metal basket to keep the critical components in perfect alignment. Large windows in the basket both above and below the spider to reduce sound reflection, air flow noise and cavity resonance to a minimum.

For more detail, see M15CH002 spec sheet (PDF).

Recommended Enclosure: 0.15 cu. ft. (4.2 liters) sealed, F3 = 150 Hz. This is a dedicated midrange and not recommended for use in bass reflex.

frequency response

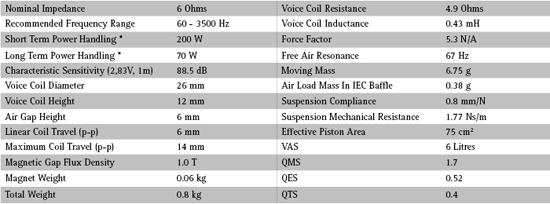

technical specs



mechanical drawing
