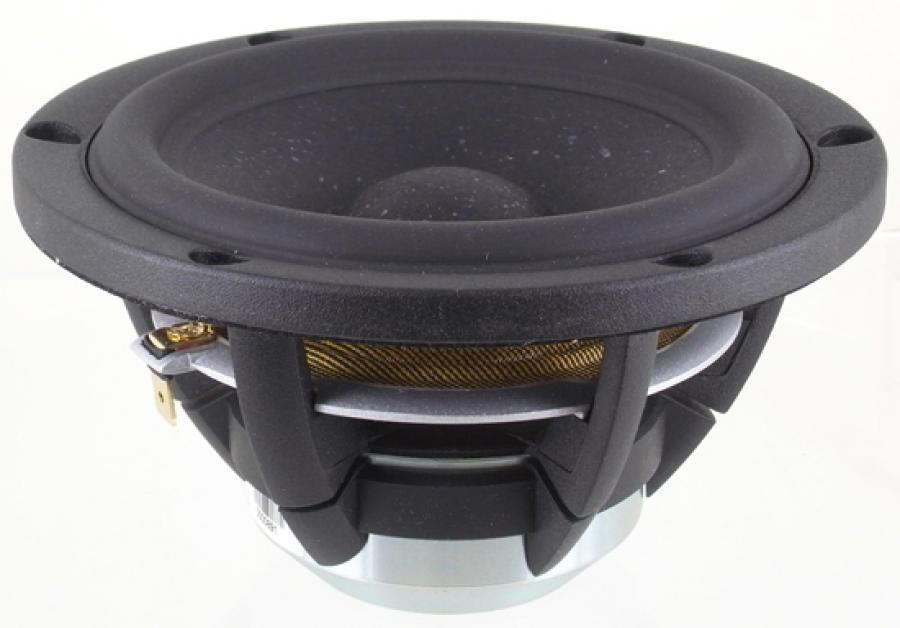

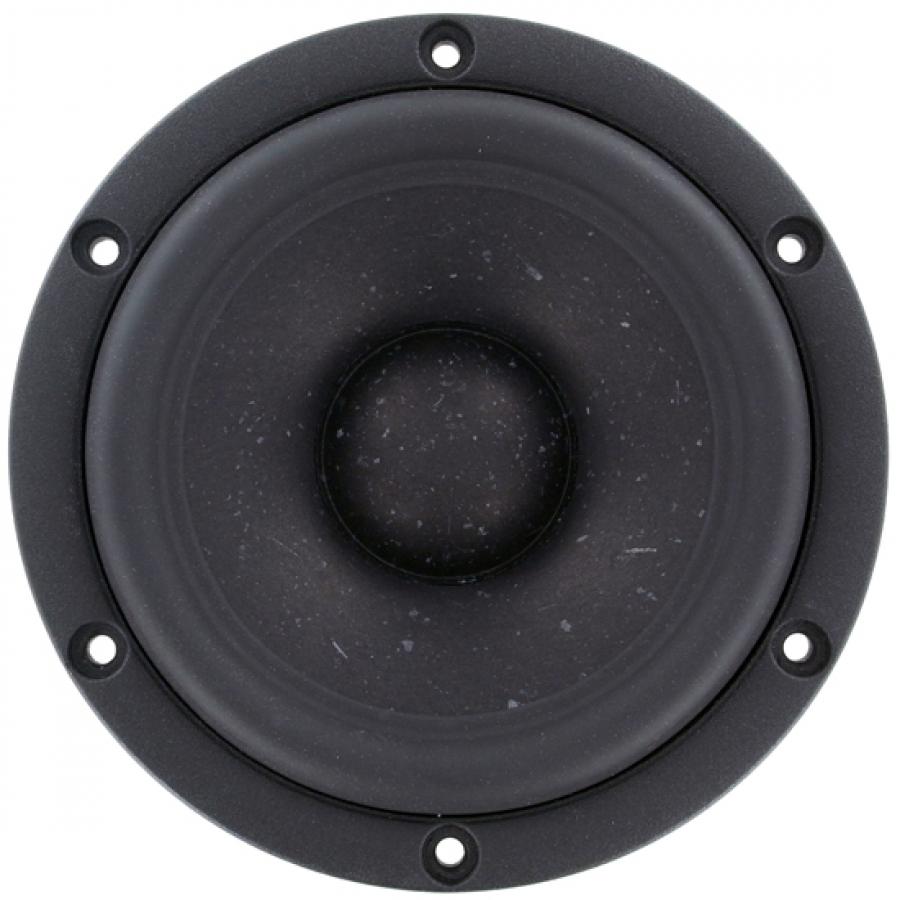

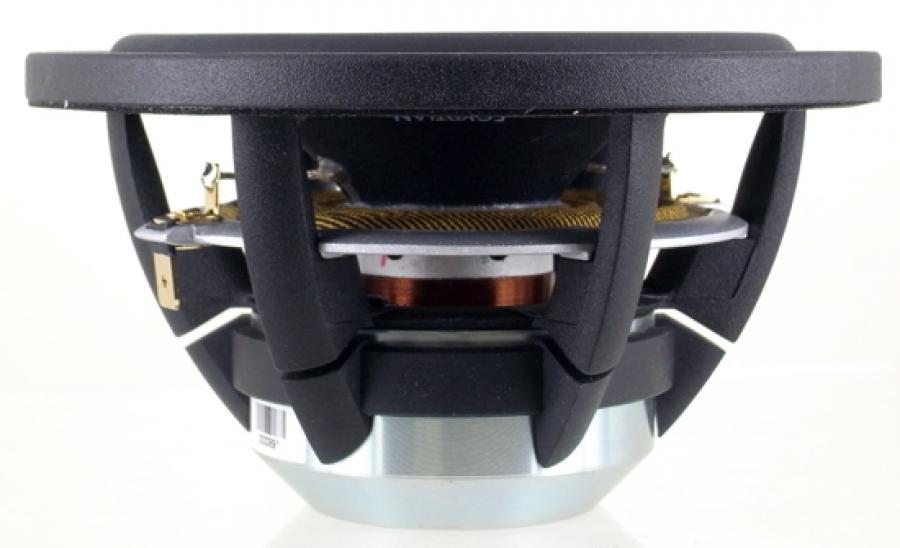

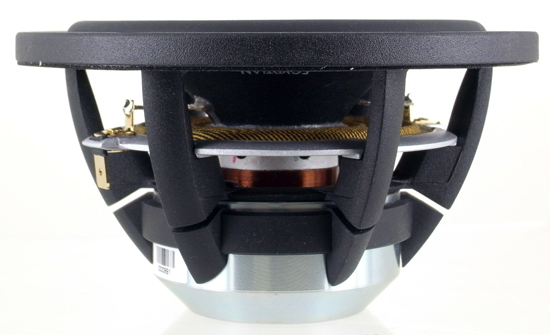

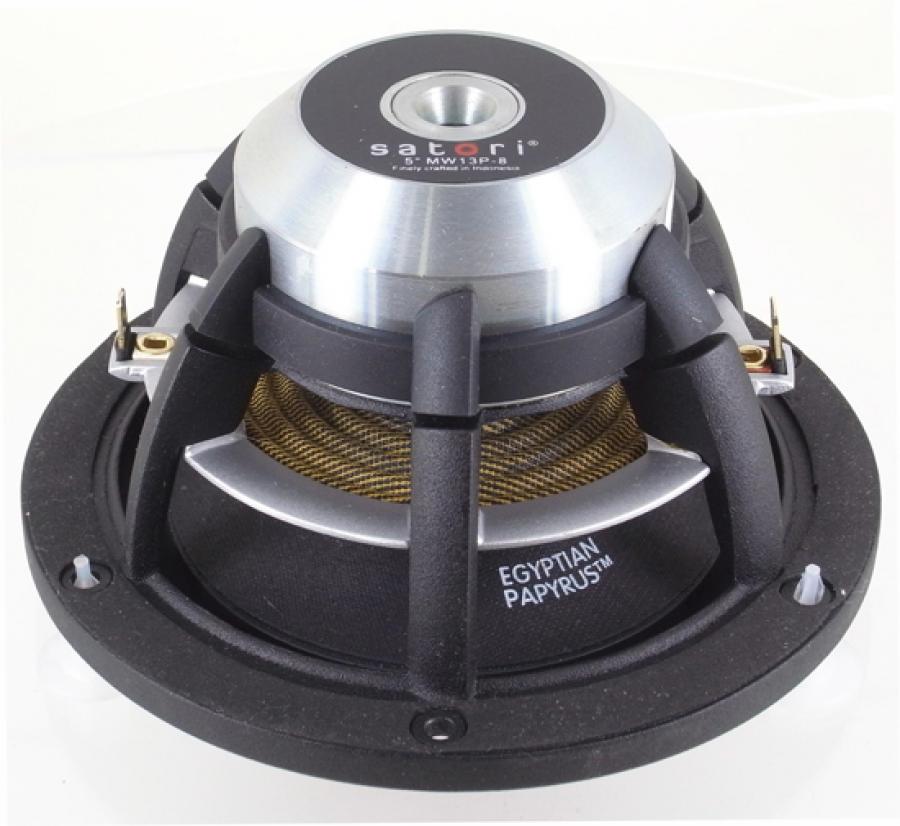

Satori MW13P-8 5" Egyptian Papyrus Cone Woofer - 8 ohm

Manufacturer: Satori

1 Customer Review(s)

Product ID: MW13P-8

$163.30

Add to wish list E-mail to a friend

Volume Pricing

10 - 100
10% off

Overview

SB Acoustics Satori 5" woofer MW13P

Satori MW13P 5" Egyptian Papyrus Cone Woofer - 8 ohm

Manufacturer Specifications PDF

Satori is a Buddhist term for enlightenment. The word literally means "understanding". Satori translates as a flash of awareness. Satori drivers are designed for subtlety and realism.

Vented aerodynamic cast aluminum chassis for optimum strength and low compression
Proprietary cone material with EGYPTIAN PAPYRUS fibres made in-house
Soft low damping rubber surround for optimum transient response
Advanced BIMAX spider for improved linearity
Powerful optimized low distortion neodymium motor system
Non-conducting fibre glass voice coil former for minimum damping
Extended copper sleeve on pole piece for low inductance and reduced distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires attached 180° apart for improved stability
Vented pole piece for reduced compression
High piston to chassis diameter ratio
Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

Here are some box alignments you might consider using.

For a sealed box try 0.1 cubic foot (2.8 liters) with 25% filling for an F3 of about 115Hz.
In 0.18 cubic foot (5 liters) with a 1" vent by 3.75" long your F3 is about 70Hz.
In an extended bass shelf of 0.35 cubic foot (9.5 liters) with a 1.5" vent by 6" long your F3 is about 63Hz.

1 Customer Review(s)

Outstanding Speaker

Reviewed by rpjasin on 07/17/2015

I was attracted to this driver because of the shape. Most small bass speakers have huge magnets that can get in the way. Since my project was to build a hidden sealed enclosure that could fit in a stealth manner under my factory speaker location in my 1961 Chrysler 300G, I needed a small bass driver that would fit in a triangular shaped box and this fit the bill. The quality of this piece is superb. Beautiful to look at, fantastic to listen to. This speaker installed in the custom enclosure performs exactly as I hoped it would. Combined with two kick panel hidden speakers and two 4" above it, in the factory 6x9 location, driven by a Soundstream mono sub amp, creates a stealth wall of sound all controlled by an iPod. Bass settings are important as it can be over driven, but when used within its power range, there is more than adequate bass on hand. Just a beautiful piece and well worth the $$.
