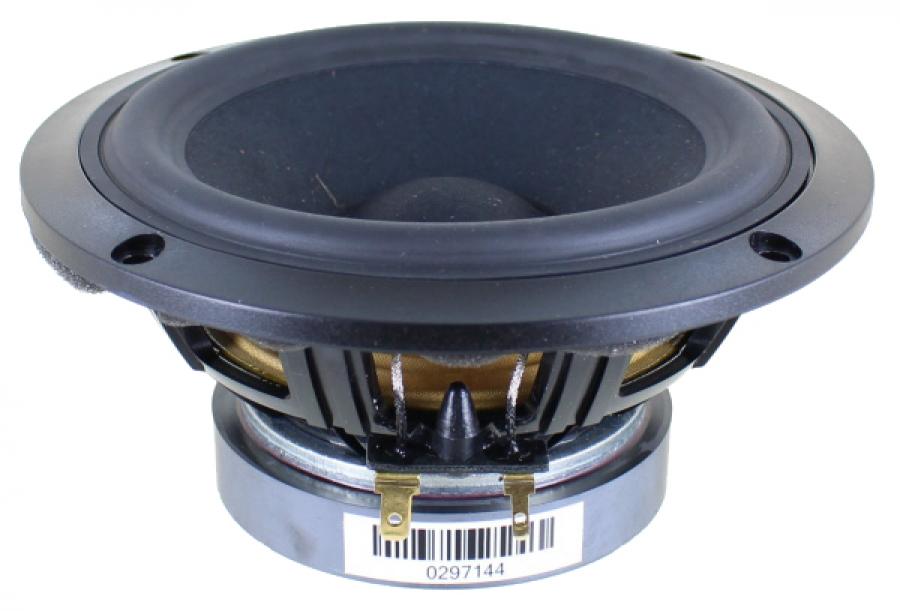

SB Acoustics SB13PFCR25-04 5" Paper Cone Woofer 4 ohm

Manufacturer: SB Acoustics

1 Customer Review(s)

Product ID: SB13PFCR25-04

$36.80

Add to wish list E-mail to a friend

Overview

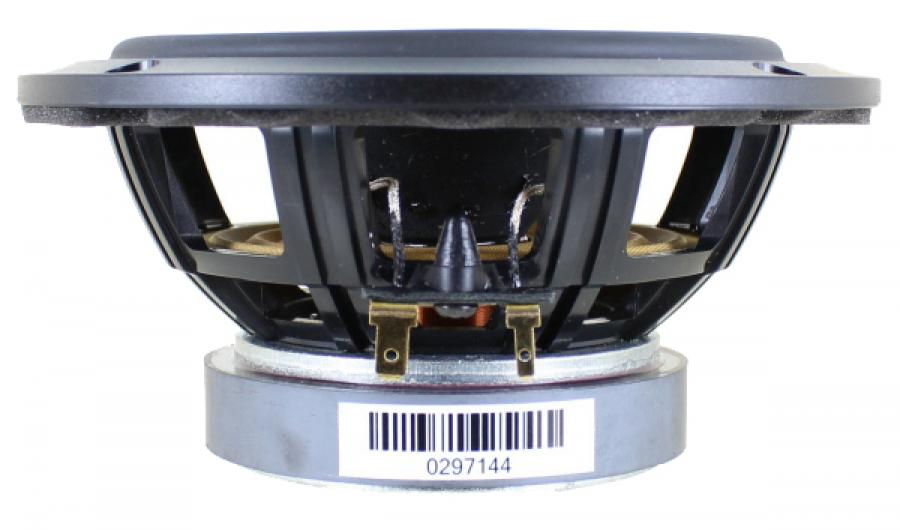

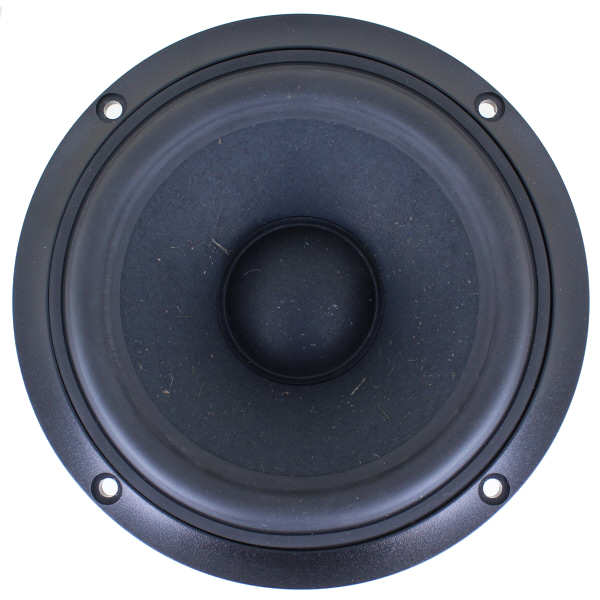

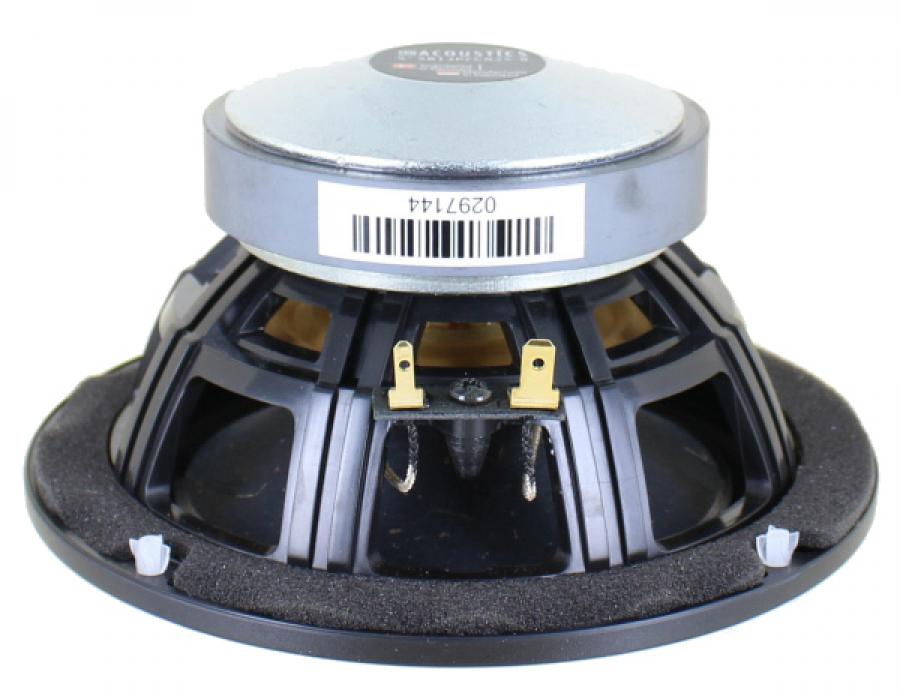

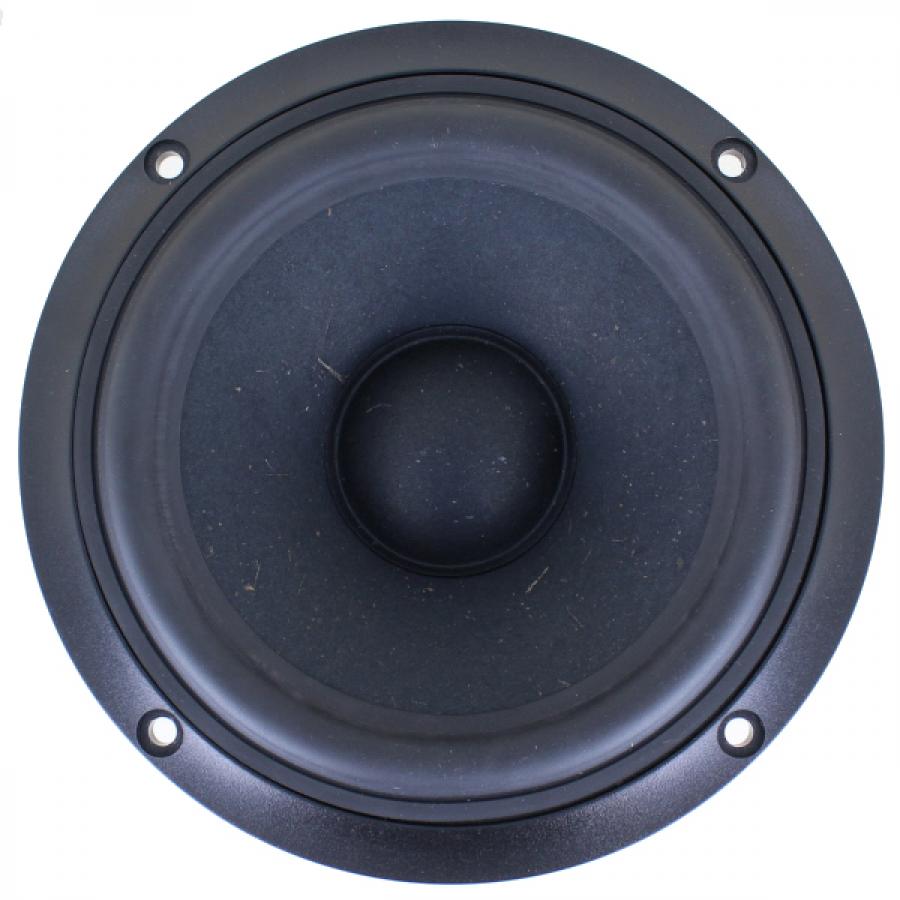

SB Acoustics SB13PFCR25-04 5" Composite Paper Cone Woofer- ROUND- 150mm- 4 ohm

SB Acoustics SB13PFCR25-04 5" Composite Paper Cone Woofer- ROUND- 150mm- 4 ohm

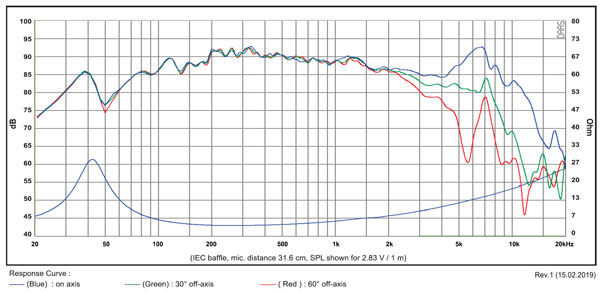

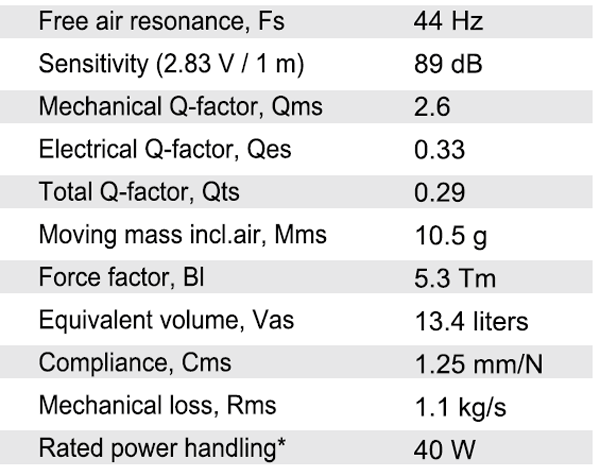

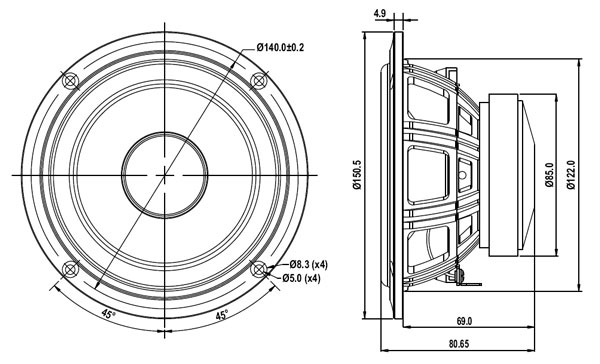

Spec Sheet PDF

Low Qts, would be good for small ported 2-way or mini-monitor.

Non-resonant Papyrus fiber cone
Low damping SBR surround
Polymer chassis
Ventilated spider
Gold plated terminals
Gasket

Suggested box sizes:

0.15 cubic feet (4.25 liters sealed with 25% filling for an F3 of 110Hz

0.25 cubic feet (7 liters) with 1.5" diameter vent by 5" long for an F3 of 58Hz

0.35 cubic feet (9.9 liters) with 1.5" diameter vent by 4.5" long for an F3 of 50Hz

1 Customer Review(s)

AATHENA AS-C1 UPGRADE

Reviewed by DavoMe245 on 09/26/2021

I used 2 of these for my Athena MTM restoration.I matched these with a SB26STC tweeter. They are crossed at 2Khz/12db.LW-R, with a zobel on the Woofers.The Norex cones make their own unique timbre. they are not quite as warm as Silver Flutes, but they do carry strings & vocals superbly. Dont let the plastic basket & low price fool you, these are well Engineered & sound Great ! Im a natural fibre cone convert.
