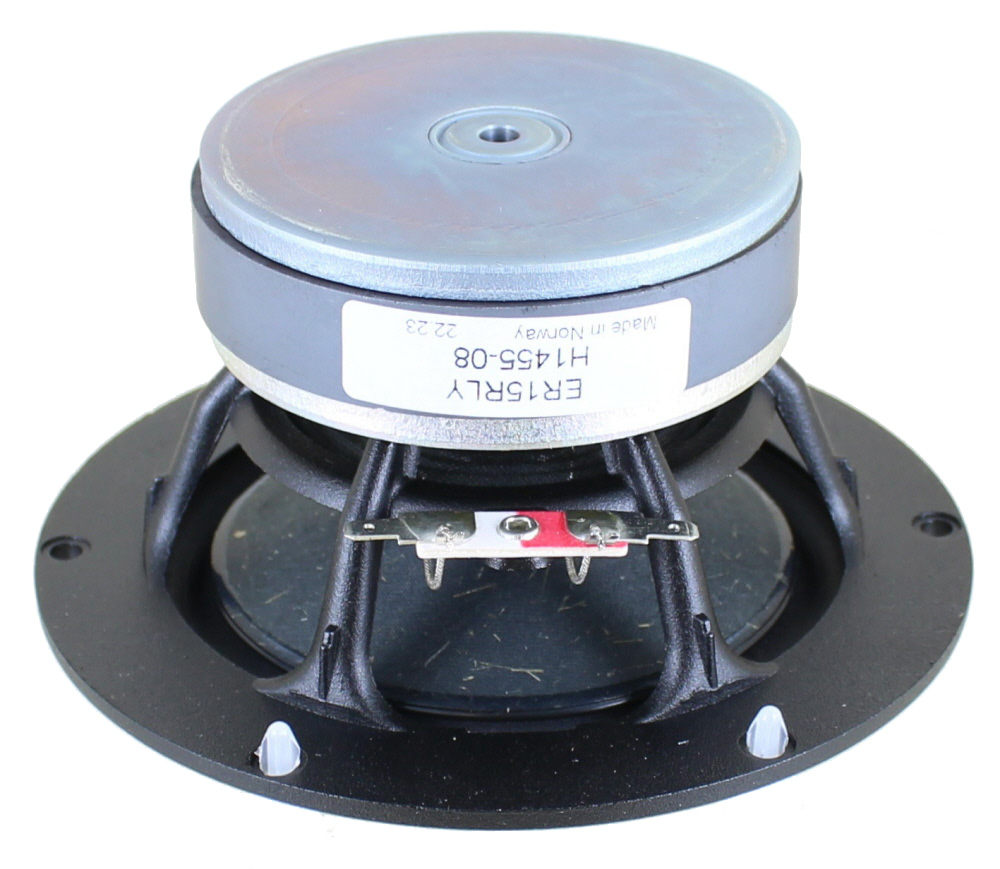

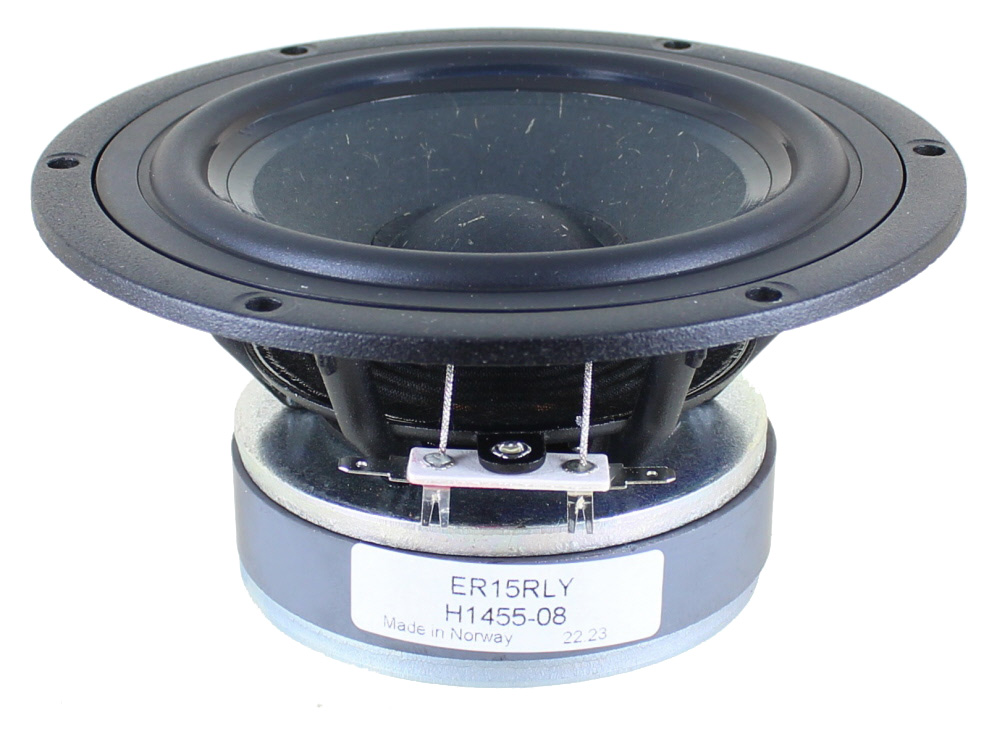

SEAS Prestige ER15RLY (H1455) 5.5" Reed Paper Cone Woofer

SEAS Prestige ER15RLY (H1455) 5.5" Reed Paper Cone Woofer- 146mm -8 ohm

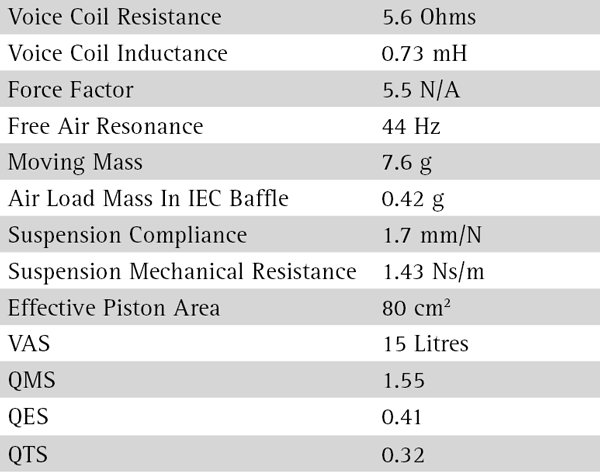

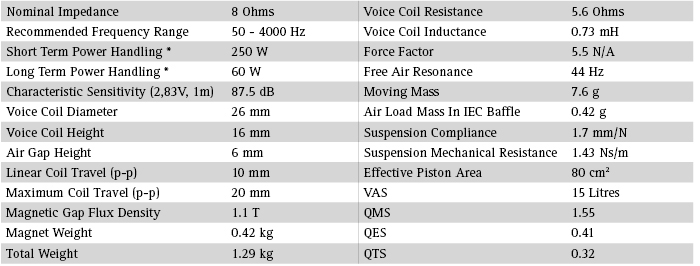

Spec Sheet PDF

15 cm (5.5’’) cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Smooth upper midrange, good for use as 2-way. Low Q good for small ported box.

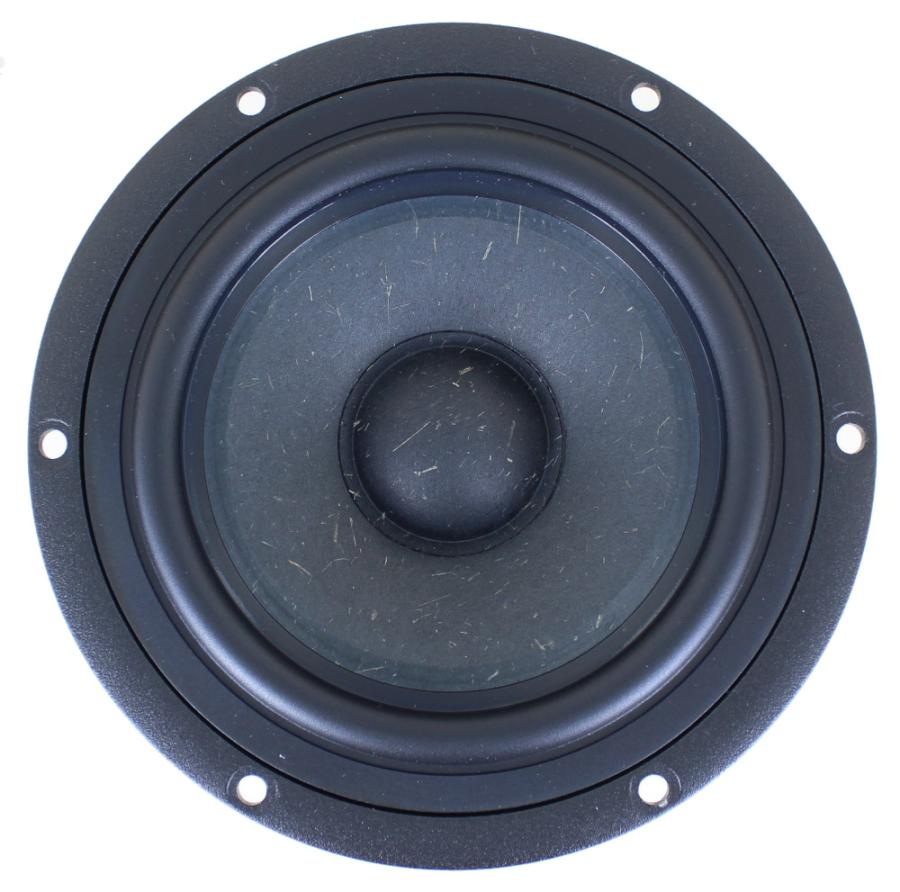

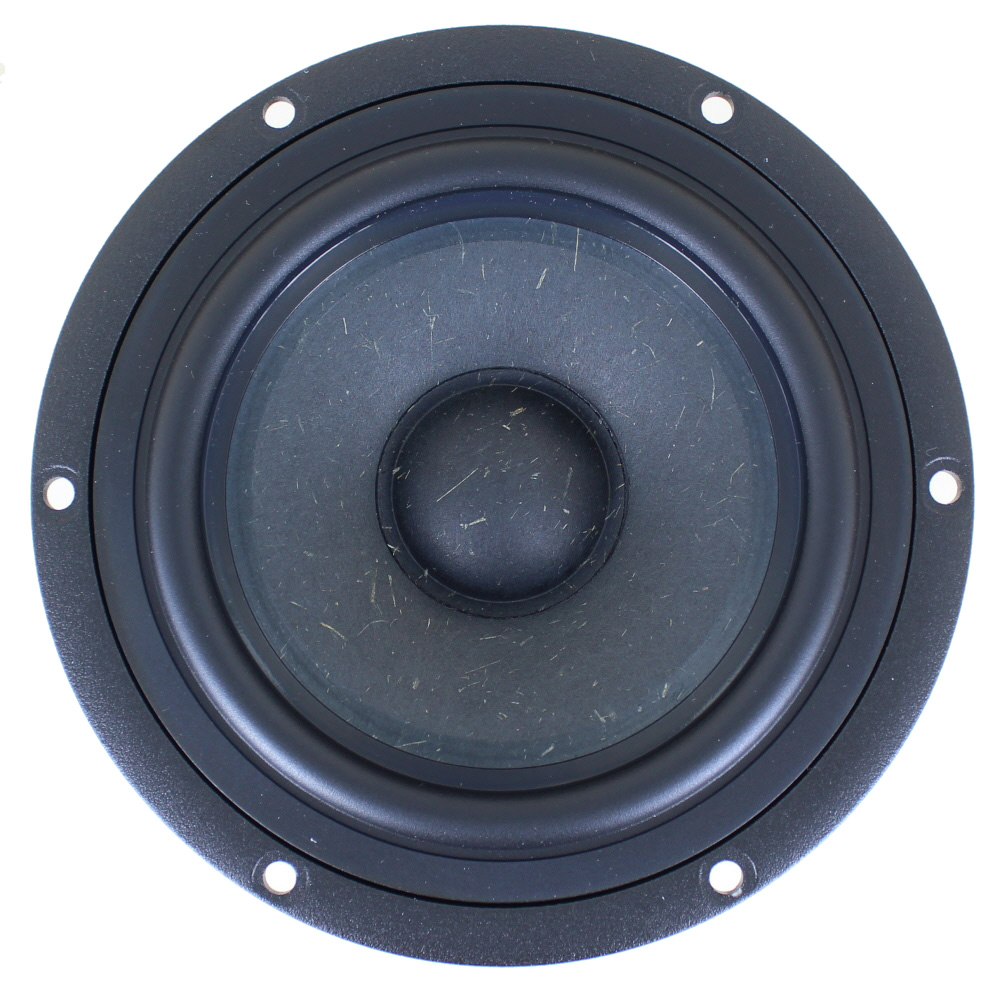

• Edge coated reed/paper pulp cone, together with perfectly matched moving parts gives a smooth, extended frequency response.
• Large magnet system, together with a very long and light weight copper clad aluminium voice coil allow good coil excursion with low distortion and good transient response.

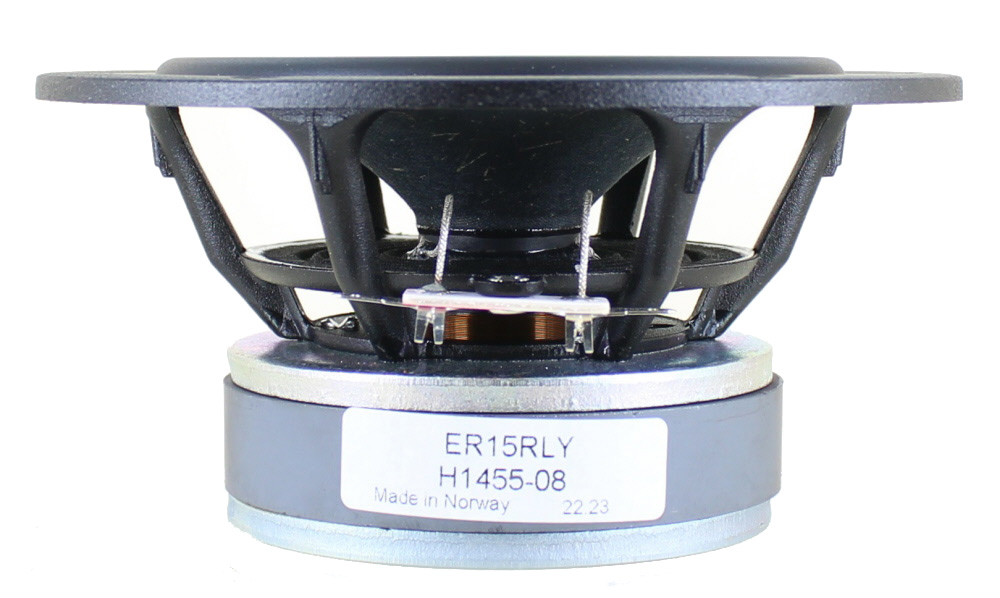

• Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.
• Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Enclosure Suggestions

• Sealed box of 0.15 cubic foot for F3 of 115Hz.
• Vented box of 0.25 cubic foot with a 1" diameter vent by 3" long for F3 of 68Hz
