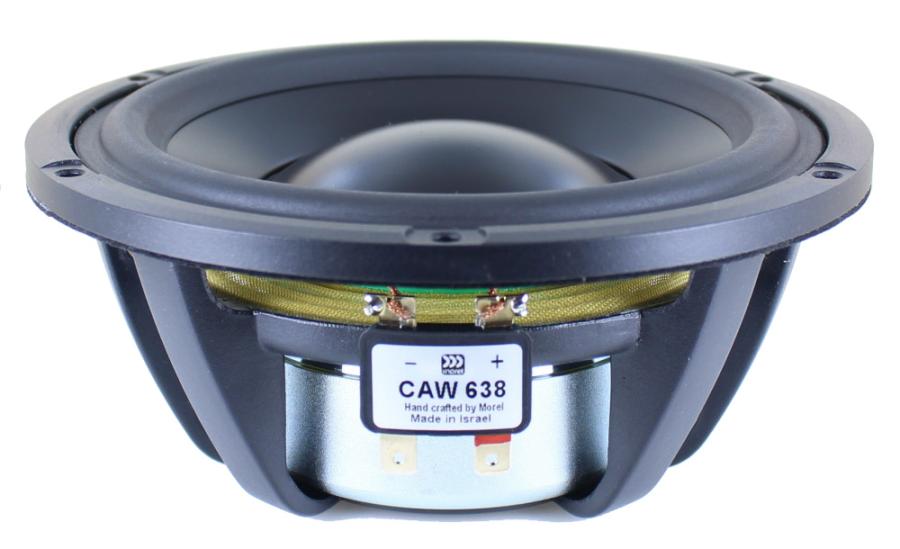

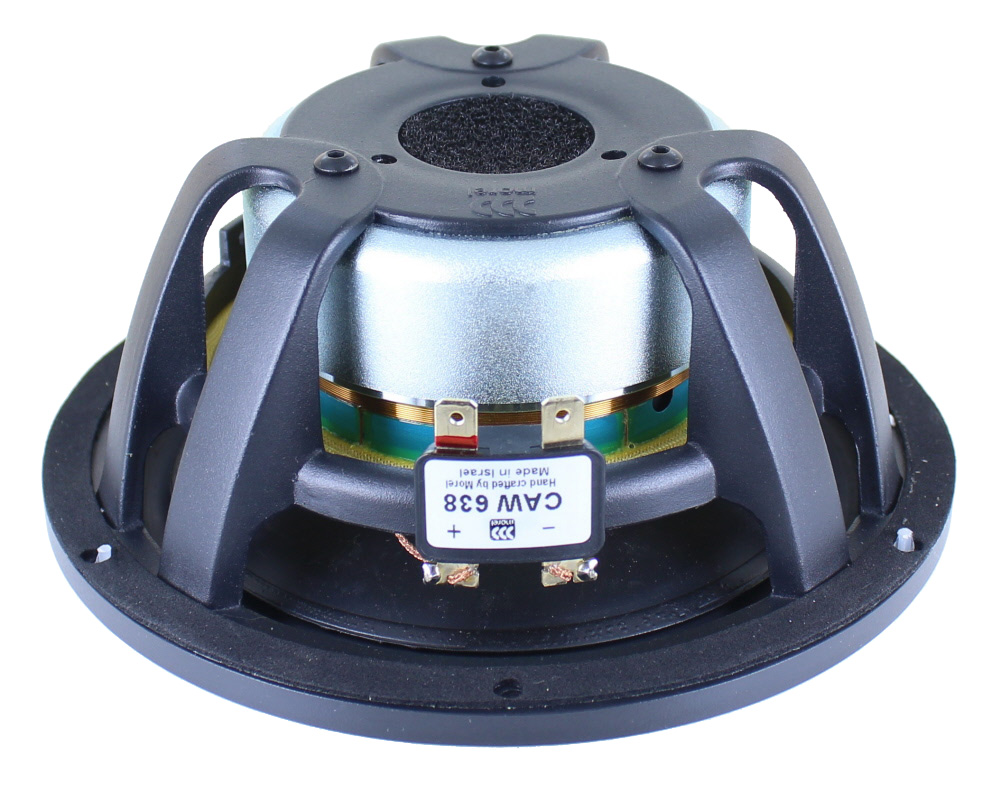

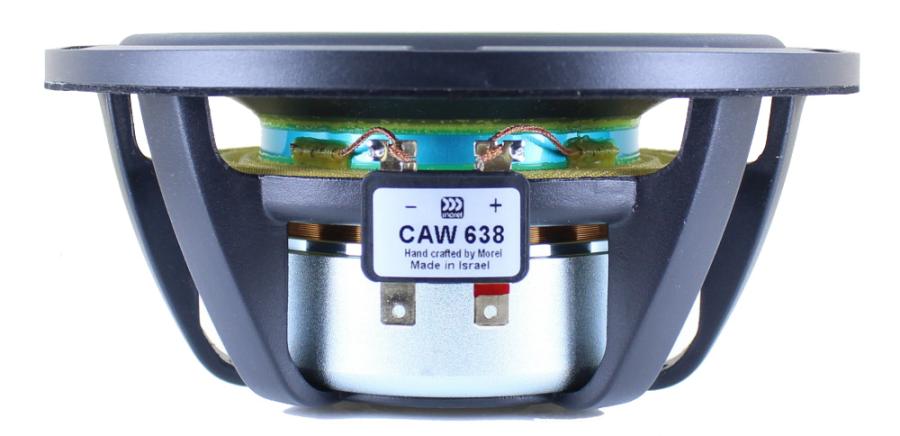

Morel CAW638 6" Classic Advanced Woofer

Morel CAW638 6" Classic Advanced Woofer

This woofer features an aerodynamic Uniflow™ open chassis, large diameter spider, reinforced ferrite magnet resulting in higher power handling, low resonance frequency, and high Qts good for sealed box or autosound. Also models well in small ported box.

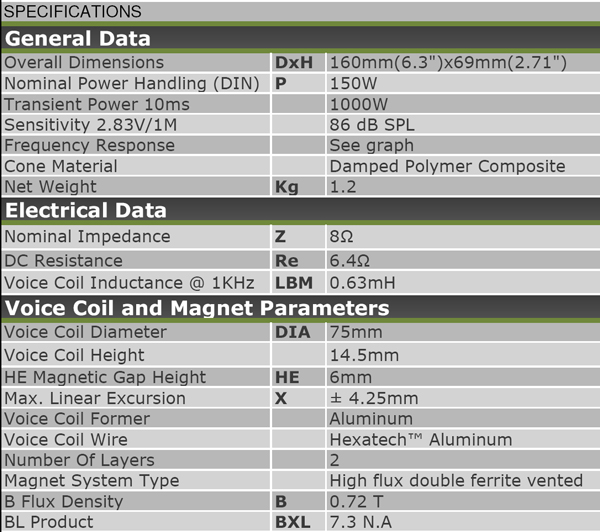

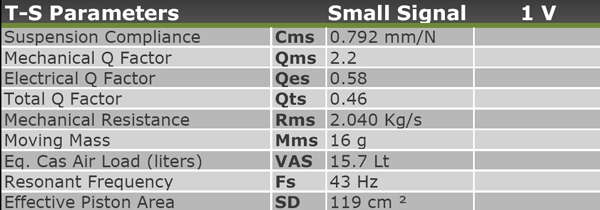

Spec sheet: Morel CAW638 Classic Advanced Woofer

• Classic Advanced Series
• Uniflow aluminum diecast chassis
• High flux double ferrite magnet system
• 3" Hexatech aluminum voice coil
• High power handling
• Shallow profile Damped Polymer Composite cone

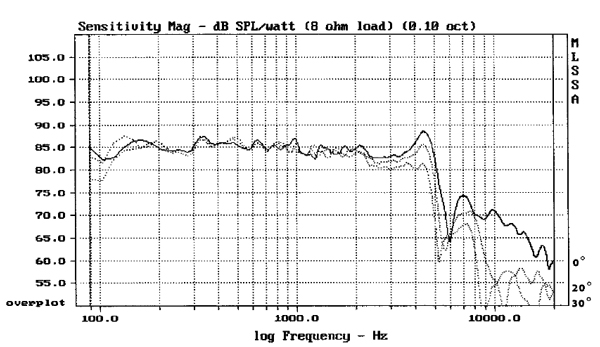

• Frequency response 45Hz to 5000Hz

Suggested box sizes:

• 0.4 cubic foot vented box with 1.5" diameter vent by 5.25" long for F3 of 48Hz
• 0.5 cubic foot vented box with 2" diameter vent by 7.2" long for F3 of 43Hz
• 0.6 cubic foot vented box with 2" diameter vent by 6.7" long for F3 of 41Hz
• 0.7 cubic foot vented box with 2" diameter vent by 6.2" long for F3 of 38Hz
• 0.25 cubic foot sealed box for F3 of 75Hz
