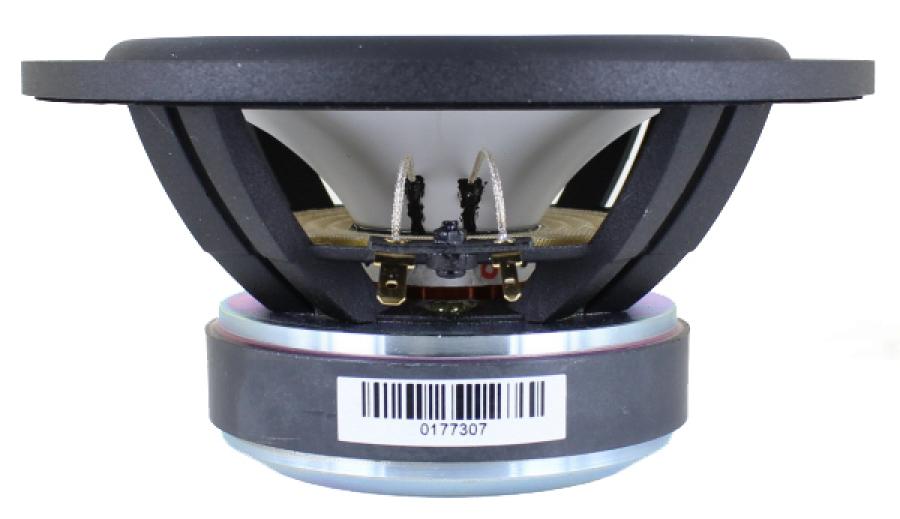

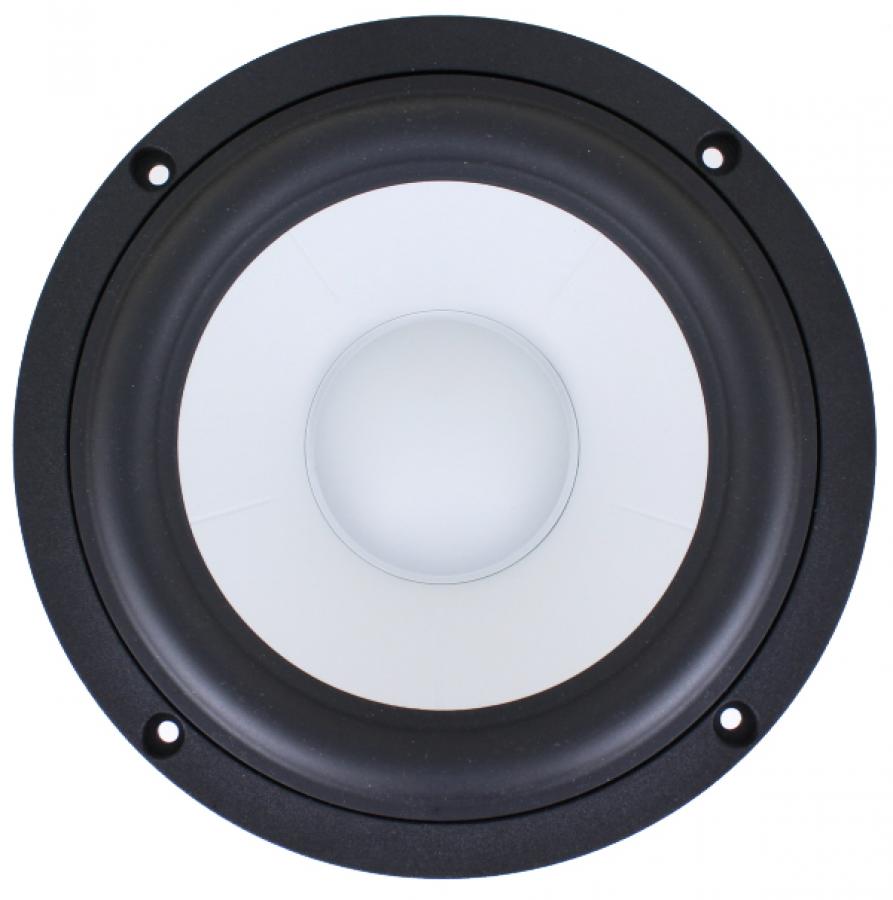

SB Acoustics SB17CAC35-8 6" ceramic woofer- 8 ohms

Manufacturer: SB Acoustics

Be the first to review this product

Product ID: SB17CAC35-8

$113.60

Volume Pricing

10 - 99
10% off

Add to wish list E-mail to a friend

Overview

SB17CAC35-8 6" Ceramic Cone Mid-bass- 171mm- 8 ohm

SB17CAC35-8 6" Ceramic Cone Mid-bass- 171mm- 8 ohm

Spec Sheet PDF

SB Ceramic cones consist of an aluminum/ceramic dual layer cone. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance.

Vented cast aluminum chassis for optimum strength and low compression
Geometrically reinforced ceramic cone for optimum piston operation and reduced
break-up
Soft low damping rubber surround for improved transient response
Non-conducting fibre glass voice coil former for minimum damping
Extended copper sleeve on pole piece for low inductance and low distortion
CCAW voice coil for reduced moving mass
Long life silver lead wires
Vented pole piece for reduced compression

Why Ceramic? Ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide:

Significantly higher stiffness to weight ratio.
More consistent performance over a wide range of temperature and humidity. For example, polypropylene's performance changes dramatically with temperature, while paper can be significantly affected by humidity.
Superior immunity to UV light and sunlight.
Superior immunity to water and salt water.
Superior immunity to combustibility

Suggested Box Alignments:

0.35 to 0.40 cubic foot sealed for F3 of 60Hz
0.50 cubic foot with 2" x 6.7" long port for F3 44Hz
0.70 cubic foot with 2" x 6.7" long port for F3 38Hz
0.90 cubic foot with 2" x 6.5" long port for F3 34Hz
