SB Acoustics SB17CRC35-8 6" Woven Carbon Fiber Cone Woofer - 8 ohm

Price: $93.95

Purchase

Manufacturer: SB Acoustics
Product ID : SB17CRC35-08
Weight: 5.00 lbs
Manufacturer: SB Acoustics
E-mail to a friend

Description

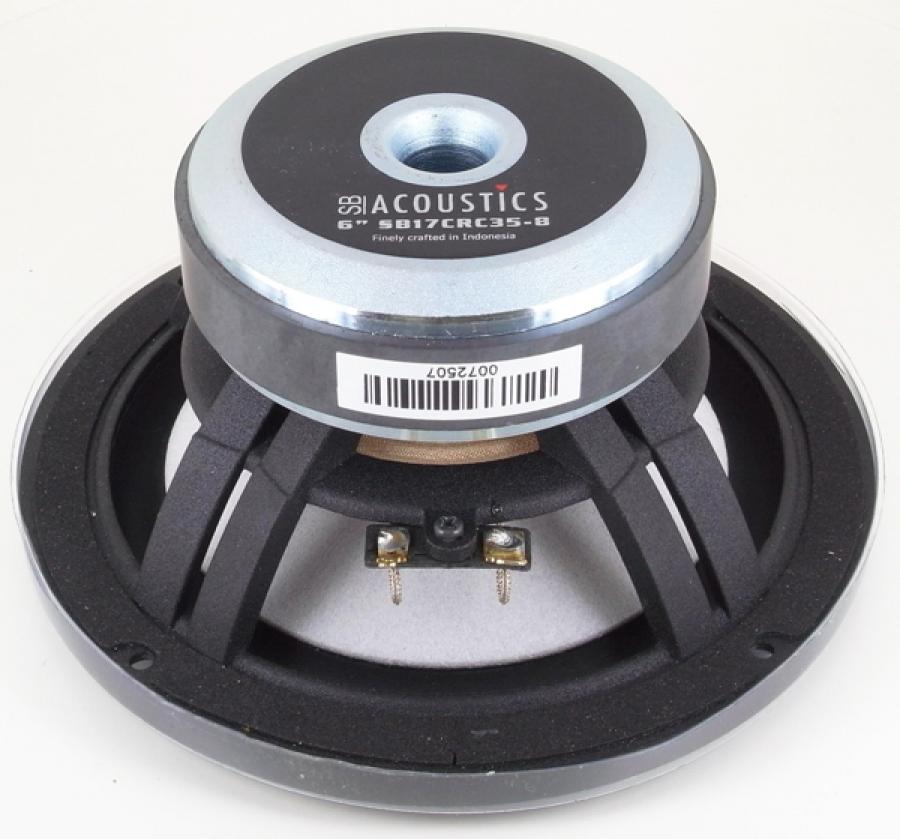

SB Acoustics SB17CRC35-8 6" Woven Carbon Fiber Cone Woofer - 8 ohms

Manufacturer Specifications PDF
  • Rohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratio
  • Vented cast aluminum chassis for optimum strength and low compression
  • Low damping rubber surround for improved transient response
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression

Suggested Box Alignments:

Sealed box of 0.25 to 0.3 cubic foot for an F3 of 74Hz
Vented box of 0.5 cubic foot with 2" vent by 8" long for F3 of 47Hz
Vented box of 0.7 cubic foot with 2" vent by 6" long for F3 of 40Hz
