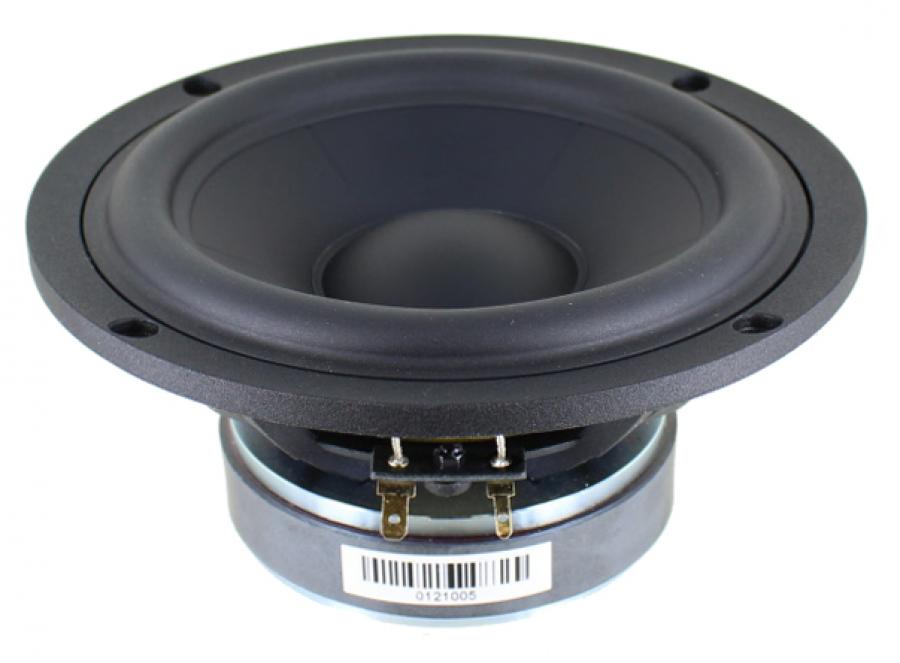

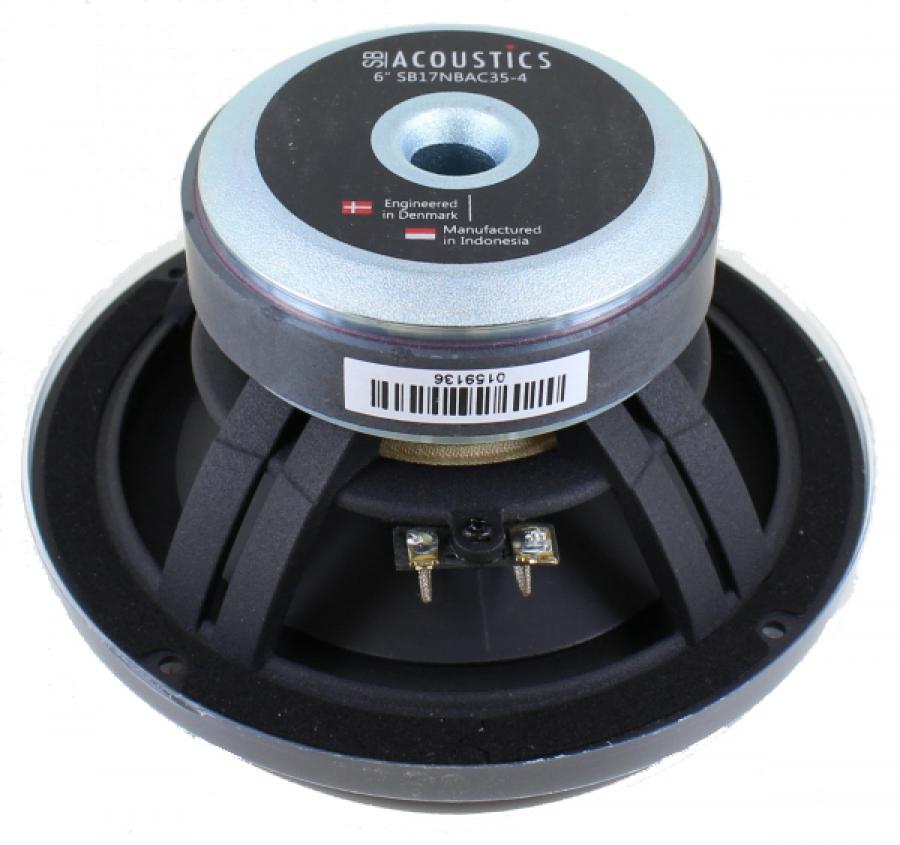

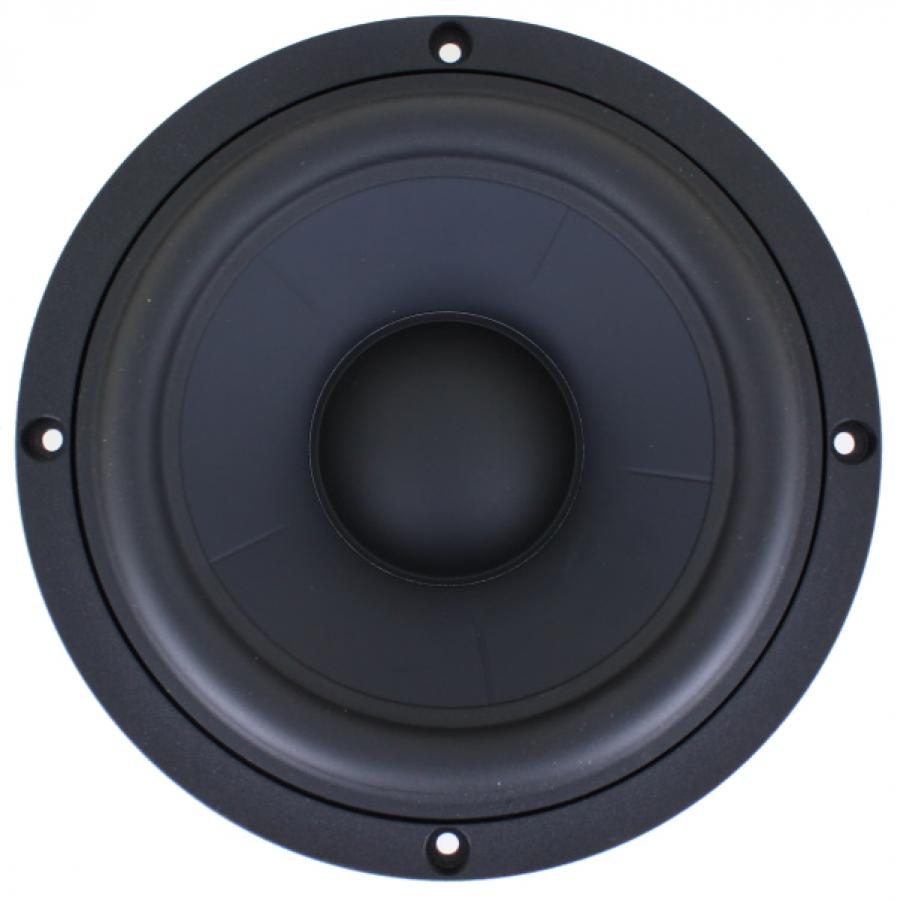

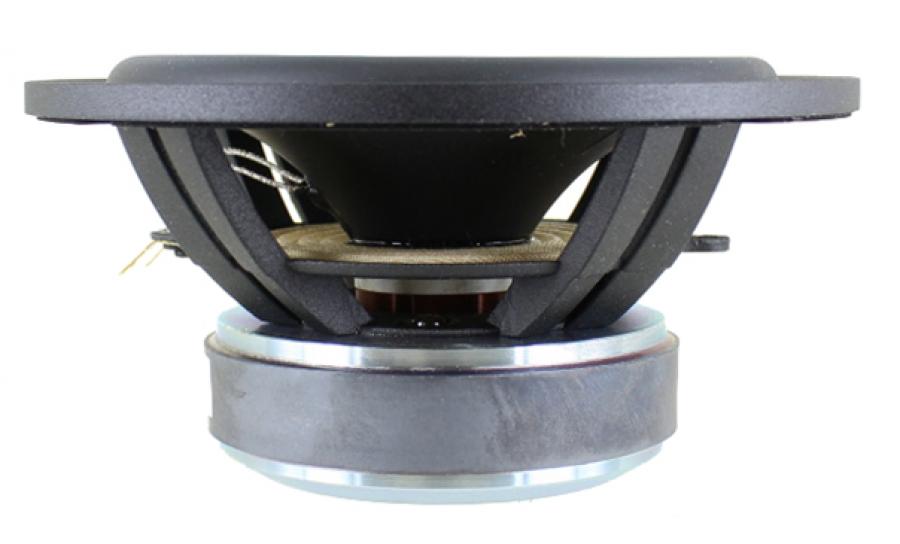

SB Acoustics SB17NBAC35-4 6" Black Aluminum Cone Woofer - 4 ohm
Manufacturer: SB Acoustics
Product ID: SB17NBAC35-4
Price:
$91.20
Volume Pricing
10 - 99
10% off
10% off
Overview
SB Acoustics SB17NBAC35-4 6" Black Aluminum Cone Woofer- 171mm- 8 ohm
SB Acoustics SB17NBAC35-4 6" Black Aluminum Cone Woofer- 171mm- 8 ohm
- Vented cast aluminum chassis for optimum strength and low compression
- Geometrically reinforced aluminum cone for optimum piston operation and reduced break-up.
- Soft low damping rubber surround for improved transient response
- Non-conducting fibre glass voice coil former for minimum damping
- Extended copper sleeve on pole piece for low inductance and low distortion
- CCAW voice coil for reduced moving mass
- Long life silver lead wires
- Vented pole piece for reduced compression
Suggested Box Alignments:
Sealed box of 0.15 to 0.25 cubic foot for an F3 of 89Hz
Vented box of 0.5 cubic foot with 2" vent by 8" long for F3 of 47Hz
Vented box of 0.7 cubic foot with 2" vent by 6" long for F3 of 40Hz
Manufacturer Datasheet PDF
Sealed box of 0.15 to 0.25 cubic foot for an F3 of 89Hz
Vented box of 0.5 cubic foot with 2" vent by 8" long for F3 of 47Hz
Vented box of 0.7 cubic foot with 2" vent by 6" long for F3 of 40Hz
Manufacturer Datasheet PDF
