Markaudio Alpair-10M Grey 6" Full Range Gen 3

Discontinued - No Longer Available

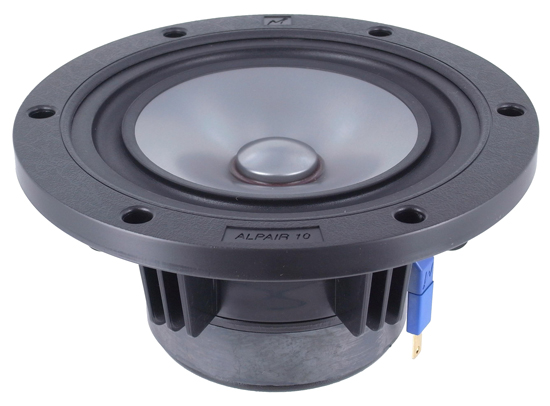

Markaudio Alpair-10M Gen 3 6" Grey Anodized Aluminum Cone Full Range with Excursion Arrestor- 164mm- 8 ohm

3rd Generation with new ultra-thin-wall coil. Mark Audio state-of-the-art 6.5" grey anodized aluminum cone.

• Link to MarkAudio PDF Enclosure Plans
• Link to Markaudio Webite Construction Plans
• Link to Planet10-hifi/Frugal-phile Website Construction Plans

This Alpair 10 Gen.3 is the latest model in a development line designed to extend the performance of mid-sized Markaudio full-range emitters. This generation of Alpair 10 utilises a new ultra thin wall coil. Together with further modifications to the cone, this latest model delivers usable frequency range up to 25-kHz while retaining its “purist” single cone design.

This driver retains the multi-form cone technology with a new more efficient profile giving improved high range performance. Design modifications to the Gen.3ʻs coneʼs neck, together with the lighter coil deliver a better off axis response in the 15 degree region. Central stereo imaging and box angle placements benefit from these improvements.

The Gen.3 version houses an “Arrestor” in the magnet sub-assembly, a device that helps to avoid damage from over-load situations. For those users who like to add low frequency gain, the Gen.3ʼs power-train (cone, coil and suspensions) design retains the “long throw” design feature. While this driver is not deigned for continuous heavy loads, the Gen.3 is capable of handling variable bass load outputs from from most typical and popular forms of music.

The Gen.3 retains the audible smoothness of its predecessors while adding usable bandwidth, improved SPL and additional scope for optimising room placement of the box system.

QC250-R Red Quick Connect 0.25 inch & QC250-B Black Quick Connect 0.25 inch fit this driver.

Small to medium sized speakers are usually lower power designs. The power rating is given in the technical data for each audio driver. For a reliable long service life, please operate your new speakers with care. For the first 100 hours, operate them at very low volumes. After this period, gradually increase the volume to a normal listening level. If you see the cone of the speakers making large movements, immediately turn the volume down. This will protect the speaker and your human hearing from damage. Factory mechanical defects for a period of 1 year. Excessive hard use (over-driving) and other damage caused during customer use is excluded from our warranty.

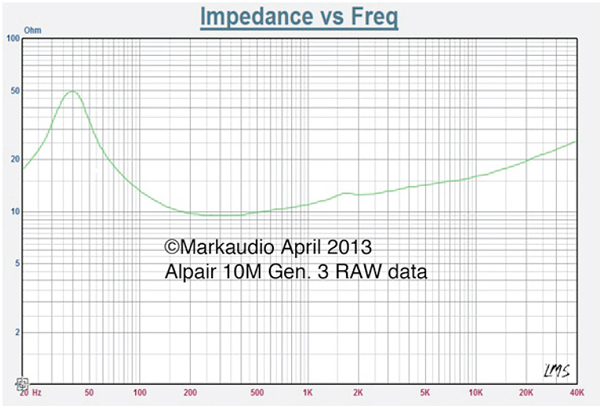

Alpair 10 Gen. 3 information:
