Markaudio Alpair-10P Paper Cone 6" Full Range

Manufacturer: Markaudio

Be the first to review this product

Product ID: ALPAIR-10P

$110.00

Product is out of stock

Add to wish list E-mail to a friend

Overview

6" Full Range featuring audiophile-quality paper and fiberglass cone; wide dispersion; 89 dB

Discontinued - No Longer Available

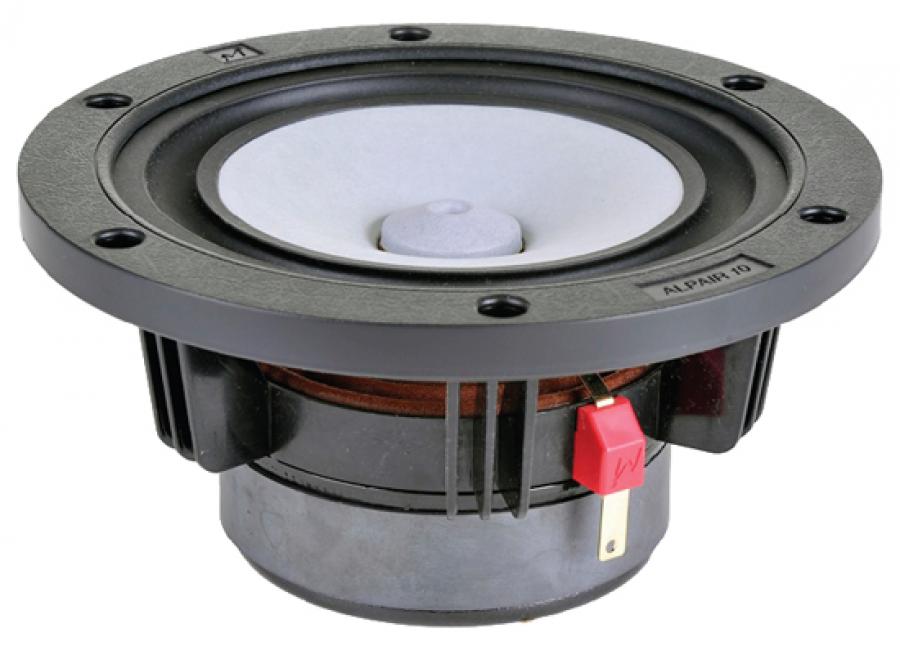

Markaudio Alpair 10P 6" Paper-GRF Cone Full Range- 164mm- 8 ohm

6" Full Range featuring audiophile-quality paper and fiberglass cone; wide dispersion; 89 dB

Link to MarkAudio PDF Enclosure Plans

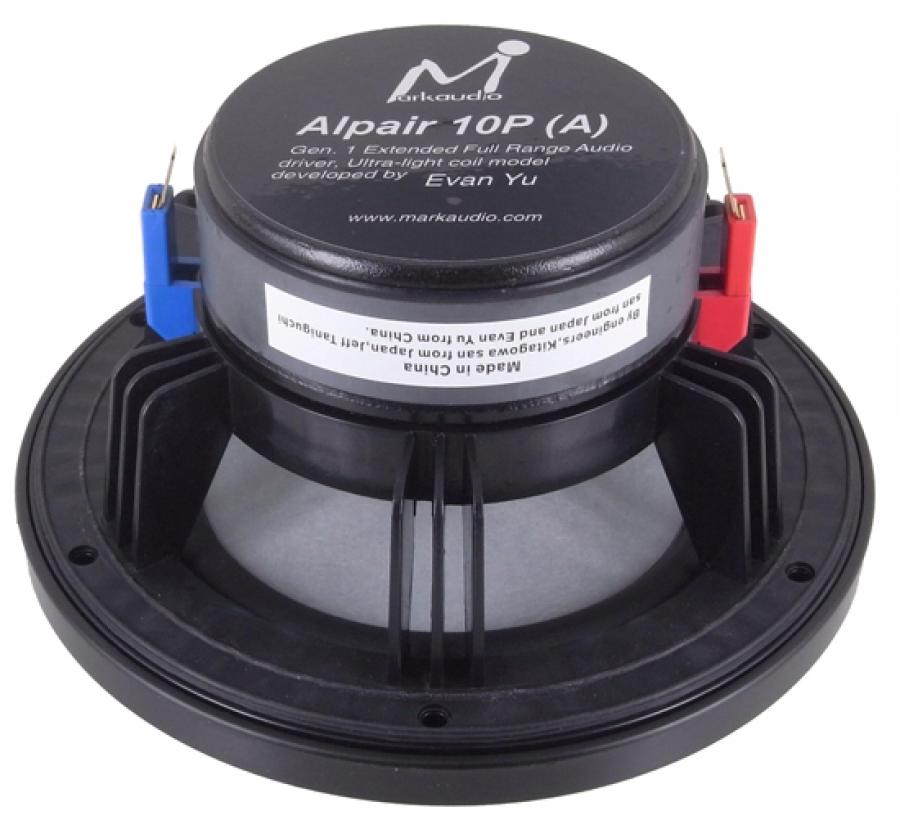

This Alpair 10P Gen.1 represents a significant development of Markaudio Full-range drivers. The production history of the Alpair 10 series is well known inside purist audiophile circles but this is the first time that a paper cone version has appeared in the 10 series.

The cone is the most radical shallow design Markaudio has produced for this size of driver. To maintain its stability, the materials used include an arrangement of glass reinforced fibres. The dispersion characteristic is ultra wide. The 10P is frequency range capable to +25-kHz with an efficiency of 89.5dB. These efficiencies were achieved by considerable design efforts to reduce mass. The 10Pʼs power train under moving mass conditions is less than 5.2g while retaining Markaudioʼs “long throw” design feature. The coil winding is “high stress” type forming the tight band arrangement on its body. The result is one of the lightest coils deployed is this size class, weighing under 2.2g.

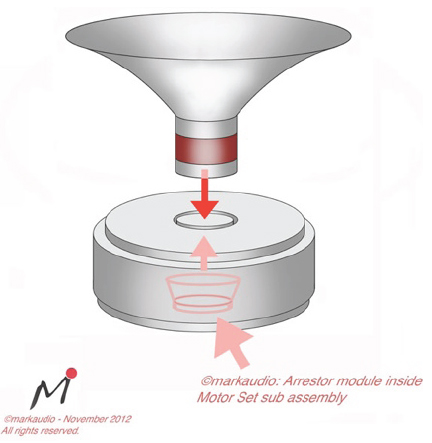

The power-train suspension compliance is extremely sensitive. It is capable of large extension for this class of Full-Range audio driver (7-mm 1 way, limited by the Arrestor).

The Alpair 10P is a “purist” technical driver. Its purpose is to serve the audiophile and experimental markets. Due to the highly emittance-sensitive power-train, this driver will need users to take note of the need for high quality lower power amplification and audiophile level source. The Alpair 10P should not be considered as a “general purpose” emitter.

QC250-R Red Quick Connect 0.25 inch & QC250-B Black Quick Connect 0.25 inch fit this driver.

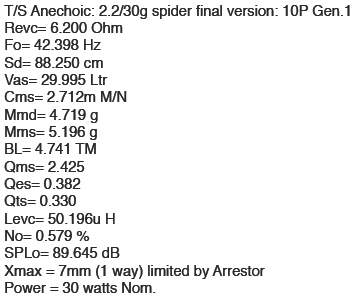

Specifications

Madisound suggested box alignments:

0.15 - 0.25 cf sealed for a F3 of 103Hz, F6 of 76HZ, F10 of 55Hz
0.5 cf with 2" diameter vent by 5" long for a F3 of 54Hz
0.65 cf with 2" diameter vent by 4" long for a F3 of 49Hz

Small to medium sized speakers are usually lower power designs. The power rating is given in the technical data for each audio driver. For a reliable long service life, please operate your new speakers with care. For the first 100 hours, operate them at very low volumes. After this period, gradually increase the volume to a normal listening level. If you see the cone of the speakers making large movements, immediately turn the volume down. This will protect the speaker and your human hearing from damage. Factory mechanical defects for a period of 1 year. Excessive hard use (over-driving) and other damage caused during customer use is excluded from our warranty.
