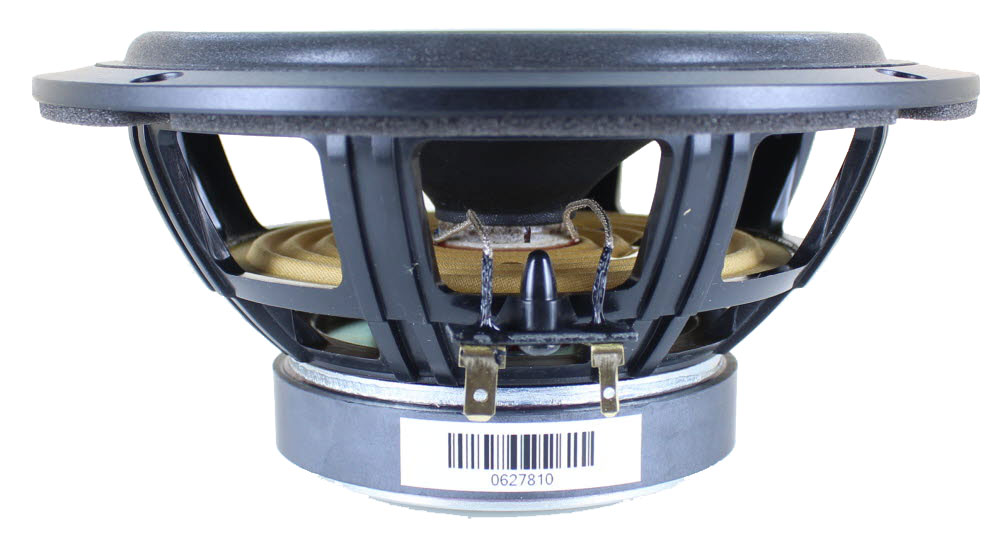

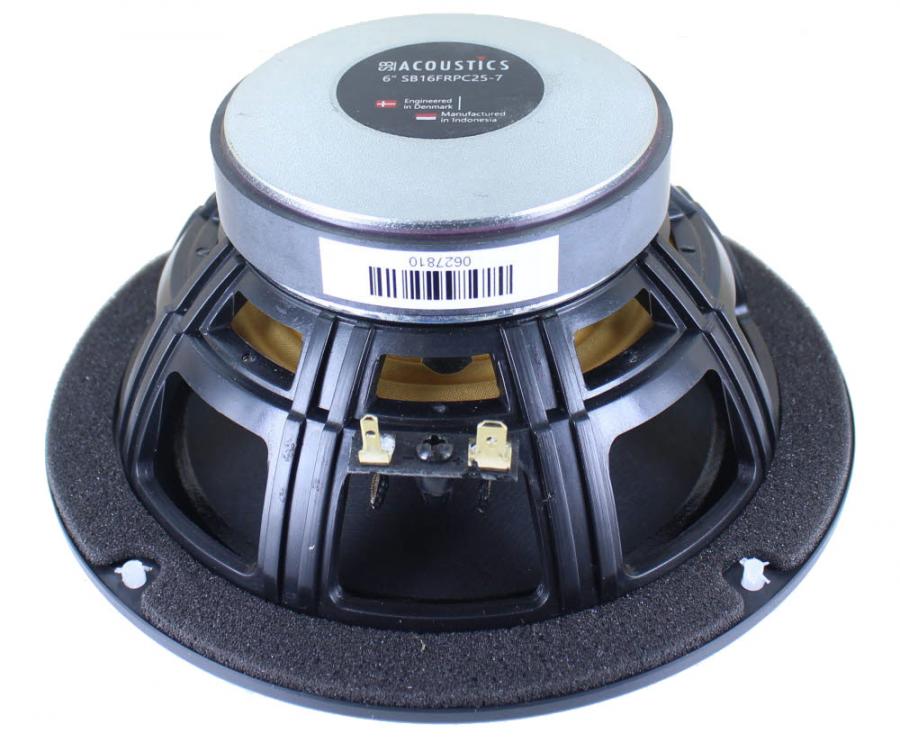

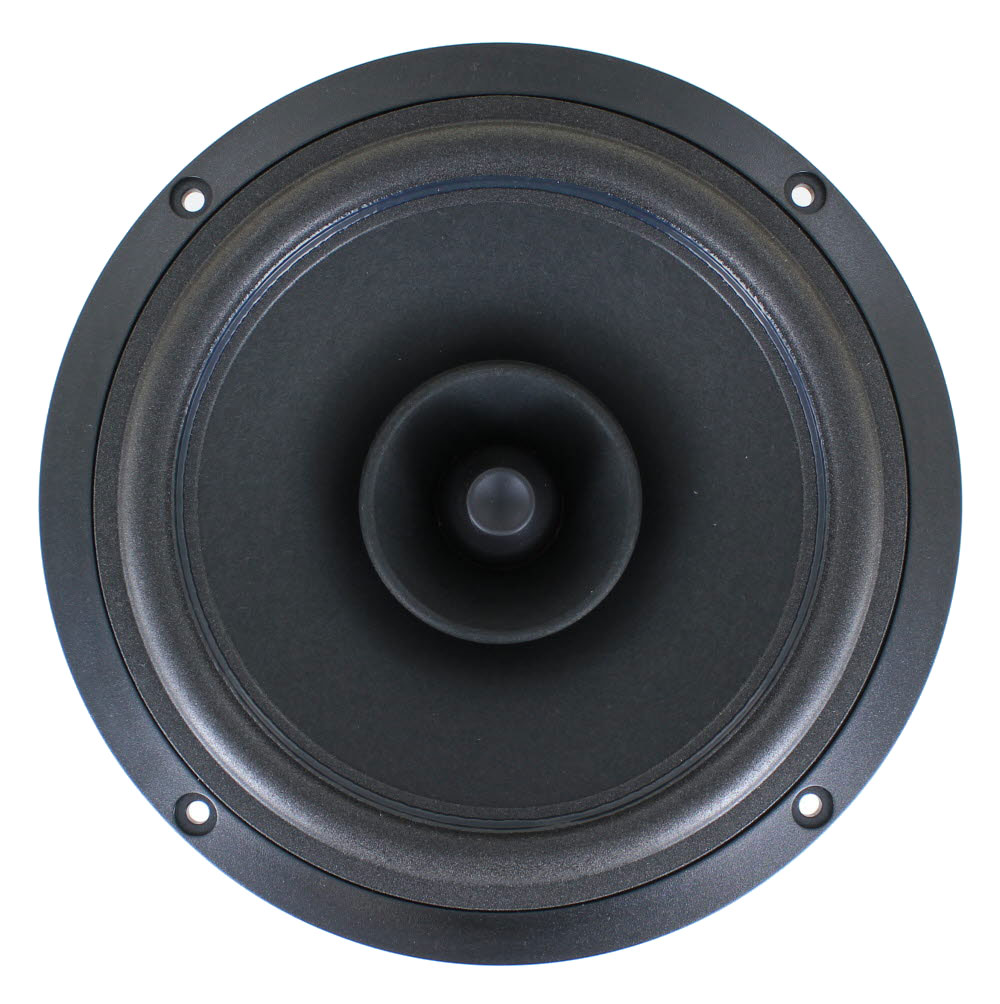

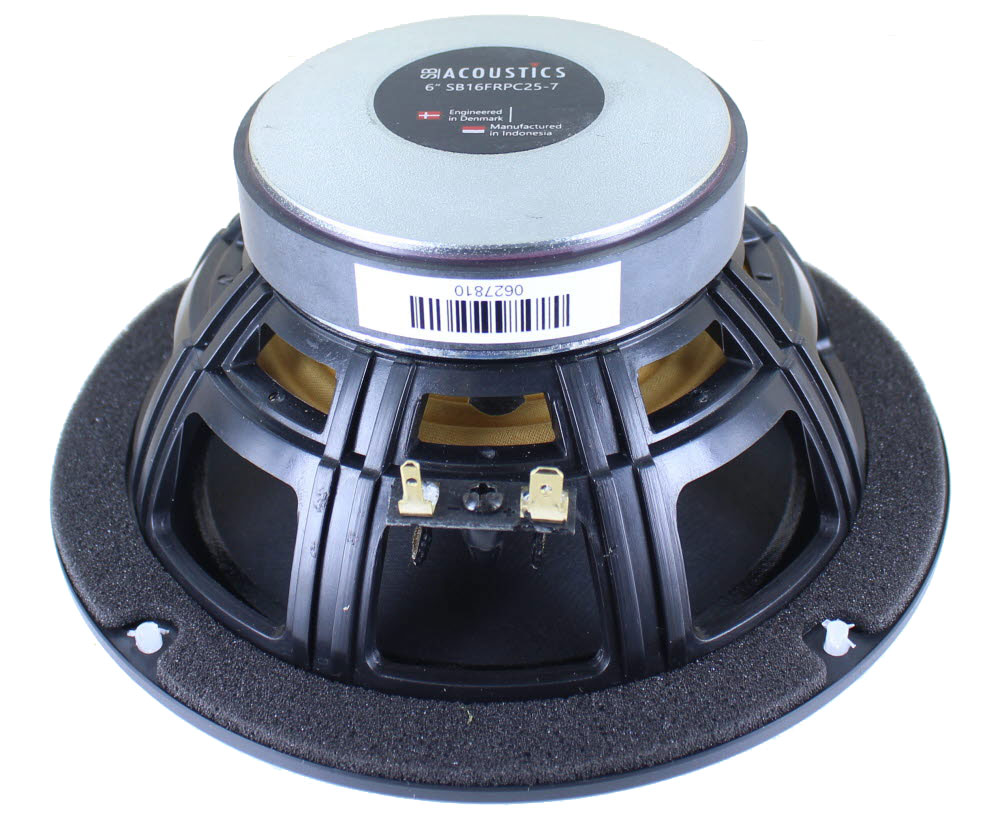

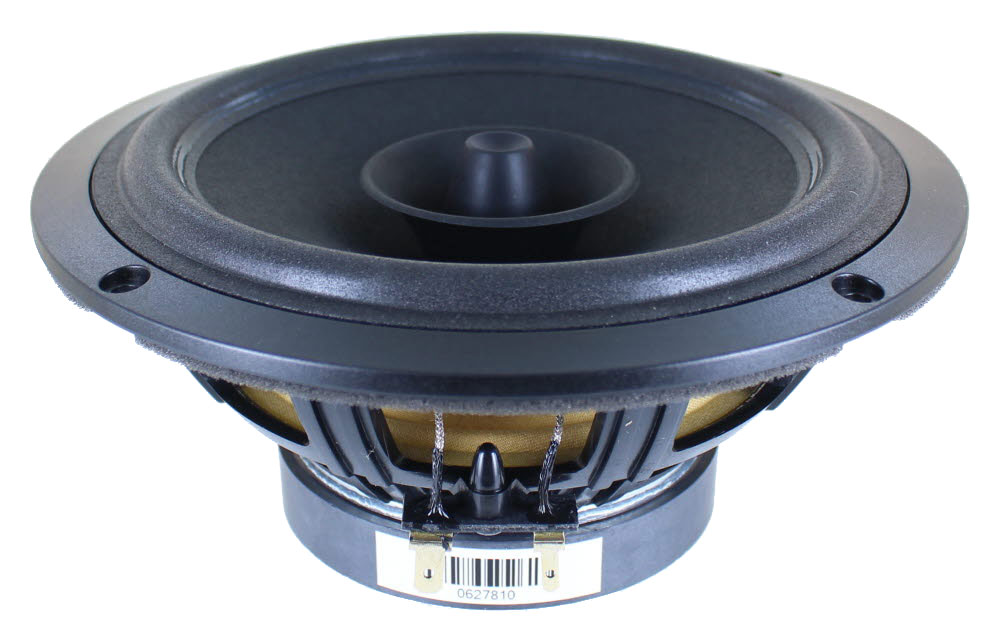

SB Acoustics SB16FRPC25-7 6" Natural Paper Cone Full Range

SB Acoustics SB16FRPC25-7 6" Natural Paper Cone Full Range- 7 ohm nominal

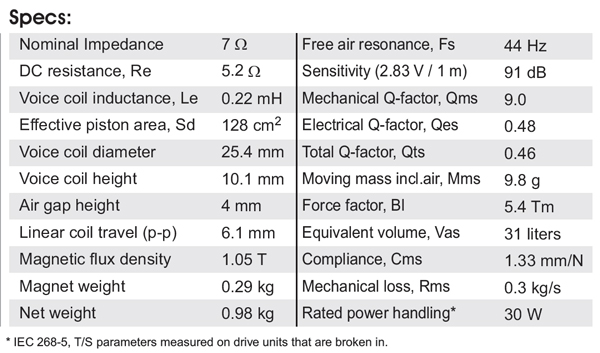

Spec Sheet PDF

The SB Acoustics SB16FRPC25-7 provides high-fidelity full-range reproduction with no need for a crossover. Some box suggestions below.

• Proprietary cone material with natural fibers made in-house
• Light weight foam surround
• Optimized whizzer cone for smooth high frequency extension
• Phase plug for controlled radiation
• Vented spider with flexibility control
• Optimized motor system
• Vented reinforced plastic chassis
• Non-conductive coil former
• Long life lead wires
• Extended copper sleeve on pole piece

Possible box alignments:

Sealed box of 0.25 to 0.4 cubic feet for F3 of 84Hz, F6 of 85Hz, and F10 of 50Hz

Vented box not recommended
