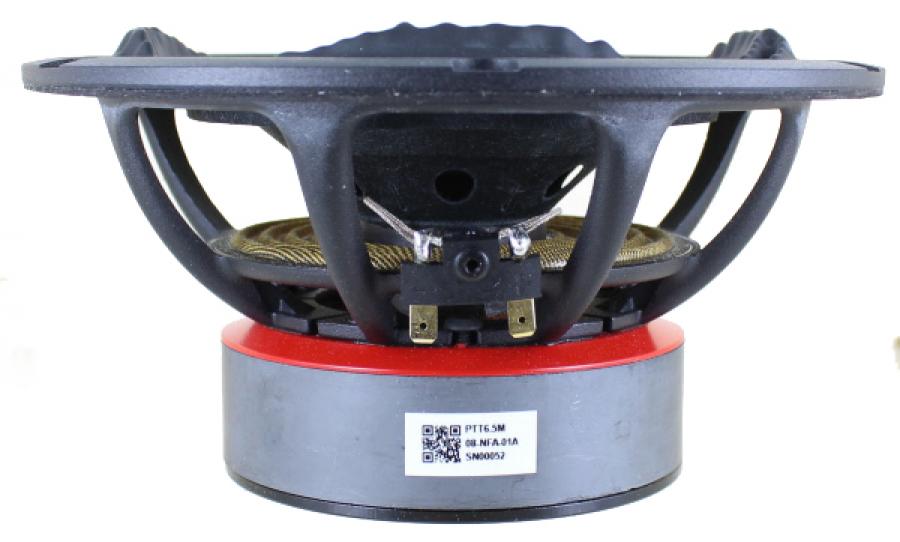

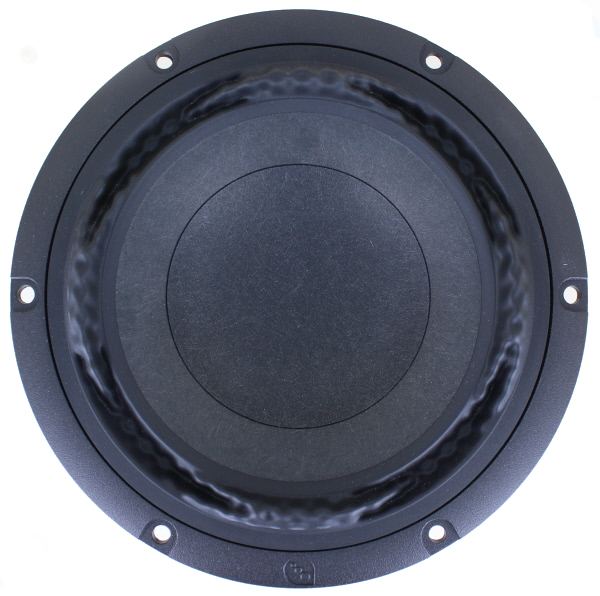

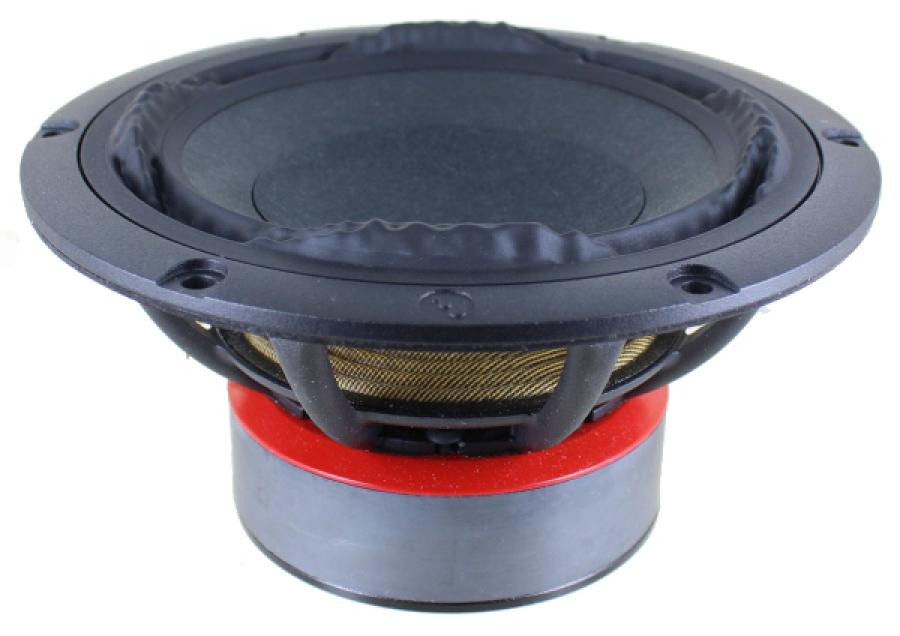

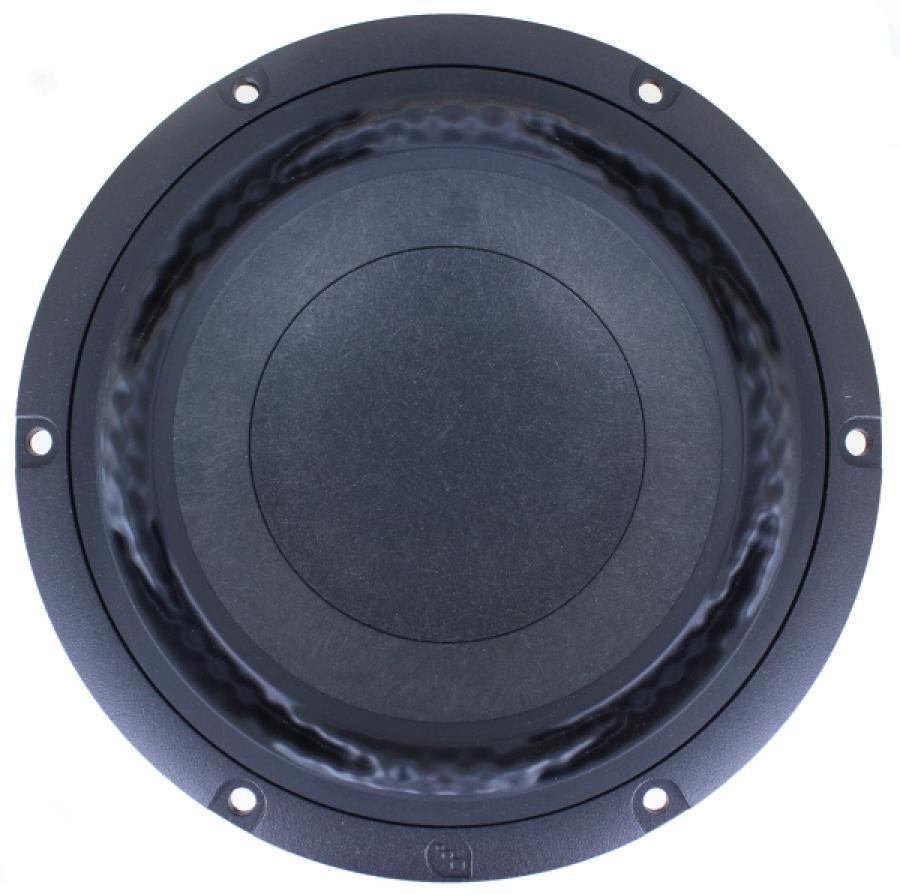

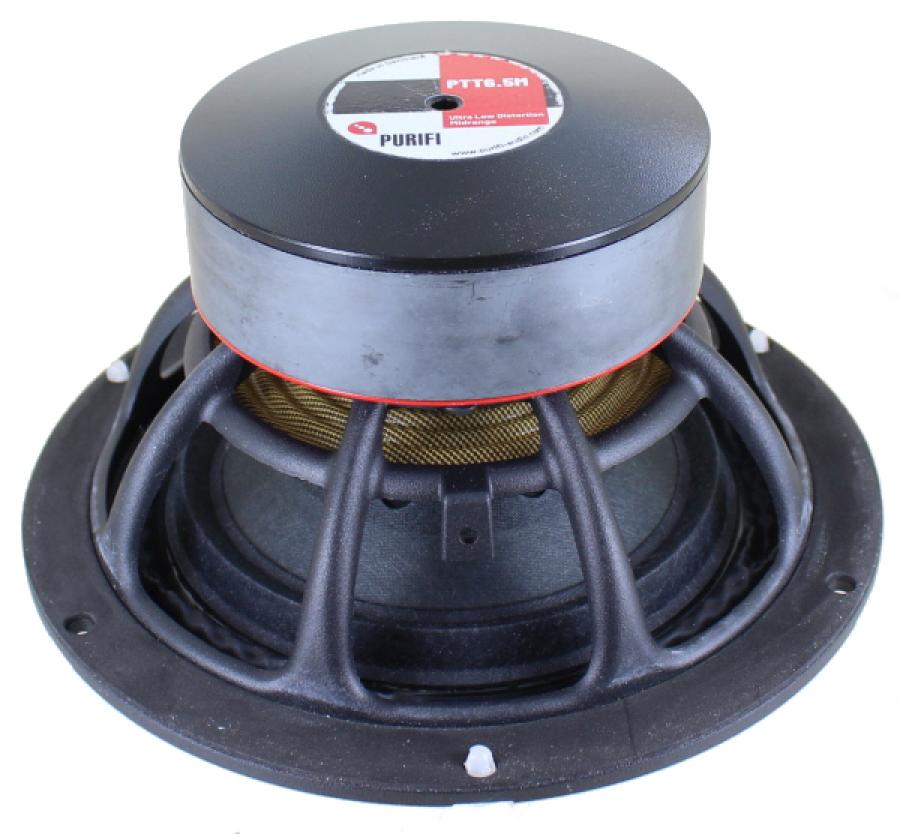

Purifi PTT6.5M08-NFA-01 6.5" Ultra Low Distortion Midrange - 8 ohm
Manufacturer: Purifi
Product ID: PTT6.5M08NFA01
Price:
$531.00
Product is out of stock
Overview
PTT6.5M08-NFA-01 6.5" Ultra Low Distortion Fiber Cone Midrange- 176mm- 8 ohm
PTT6.5M08-NFA-01 6.5" Ultra Low Distortion Fiber Cone Midrange- 176mm- 8 ohm
The PTT6.5M08-NFA-01 has been optimized for midrange use and achieves higher sensitivity as compared to the X- and W- versions of the PTT6.5 product family. Furthermore the M-version has a slightly redesigned chassis. Please observe the 2D drawings in the data sheet.
PTT6.5M08-NFA-01 – Data Sheet

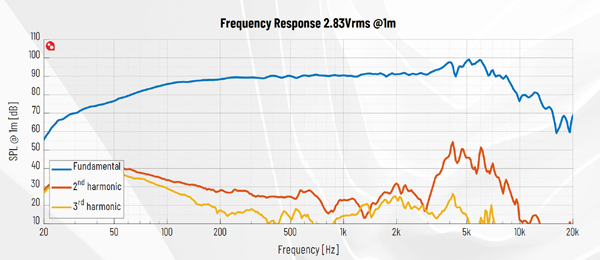

The driver achieves astounding performance with ultra clean distortion specifications.
The PTT6.5M08-NFA-01 has been optimized for midrange use and achieves higher sensitivity as compared to the X- and W- versions of the PTT6.5 product family. Furthermore the M-version has a slightly redesigned chassis. Please observe the 2D drawings in the data sheet.
PTT6.5M08-NFA-01 – Data Sheet
The driver achieves astounding performance with ultra clean distortion specifications.
- Dedicated Midrange Driver with Enhanced Efficiency
- Negligible Force Factor Modulation
- Utilizes PURIFI’s Neutral Surround Technology
- Ultra Low Magnetic Hysteresis Distortion
- Designed and Manufactured in Denmark

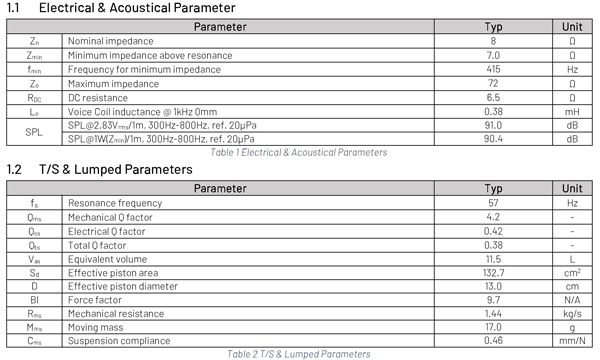

KEY SPECIFICATIONS
| Driver size | 6.5” |
| DC resistance, RDC | 6.5 Ω |
| Resonance freq., fs | 57 Hz |
| Total Q factor, Qts | 0.38 |
| Effective area, Sd | 133 cm2 |
| Eq. volume, Vas | 12 L |
| SPL@2.83Vrms/1m | 91.0 dB |

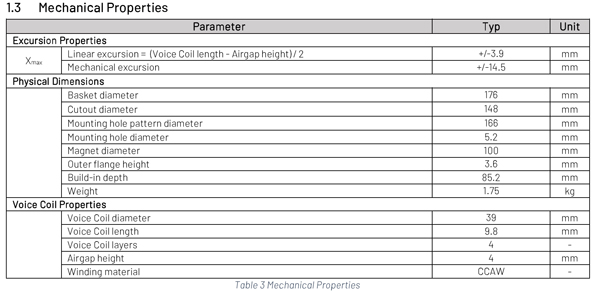

| Linear Xmax | +/- 3.9 mm |
| Mechanical Xmax | +/- 14.5 mm |
| IEC Power handling | 200 W |
| Cone material | Proprietary Fibre Mix |
