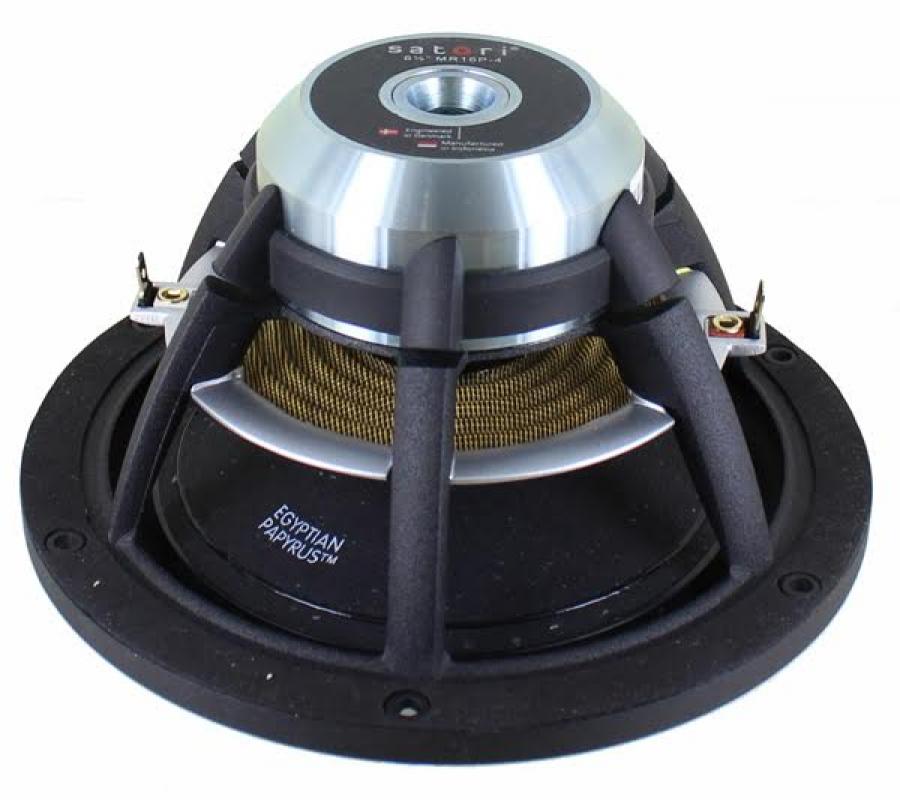

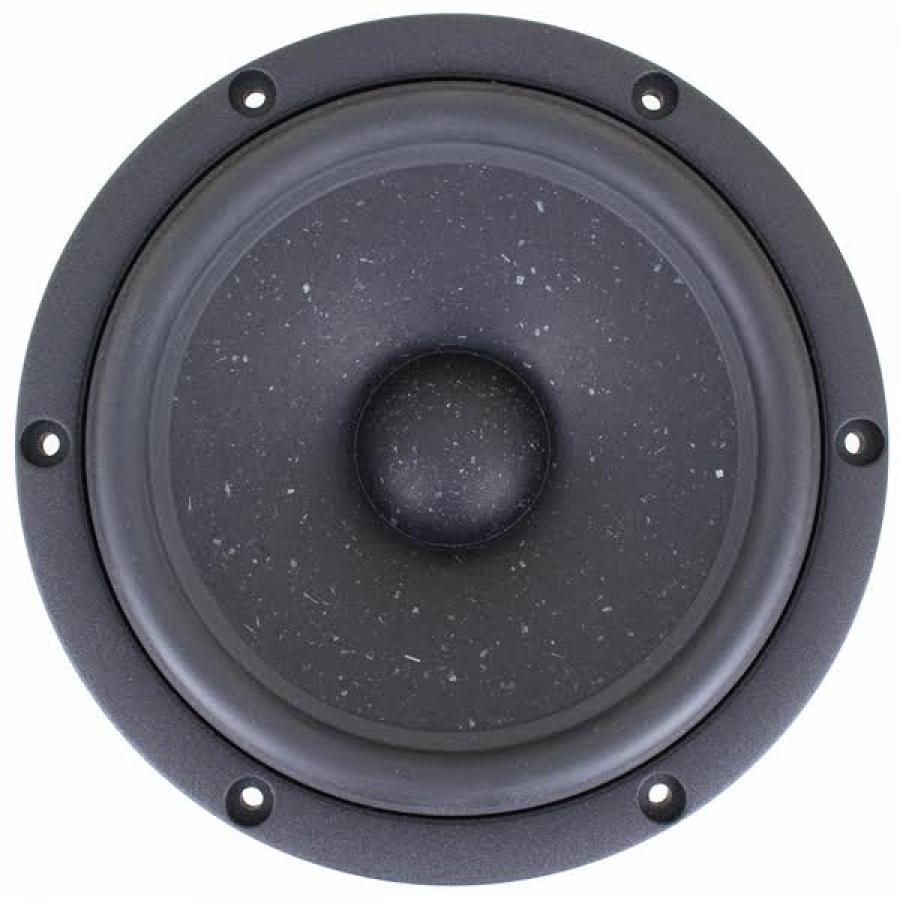

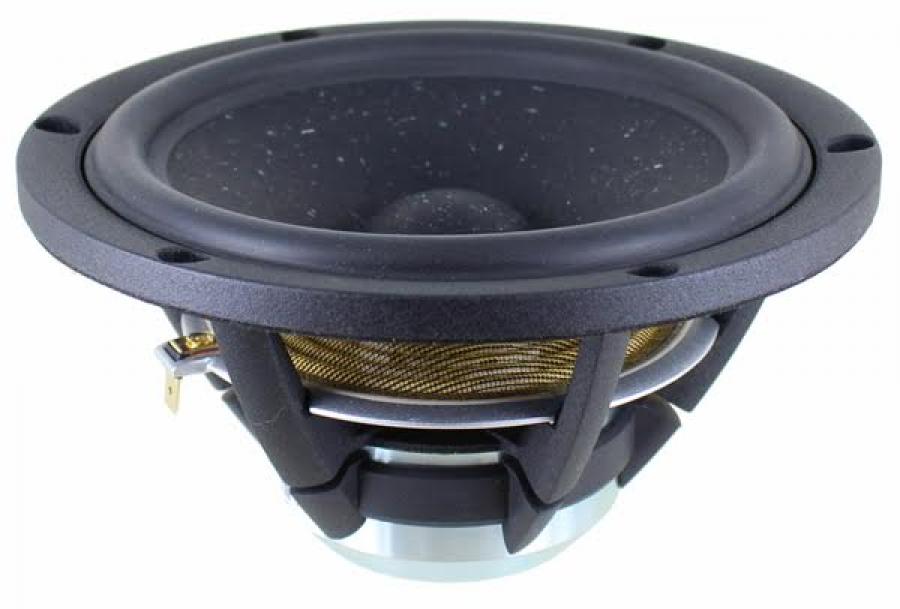

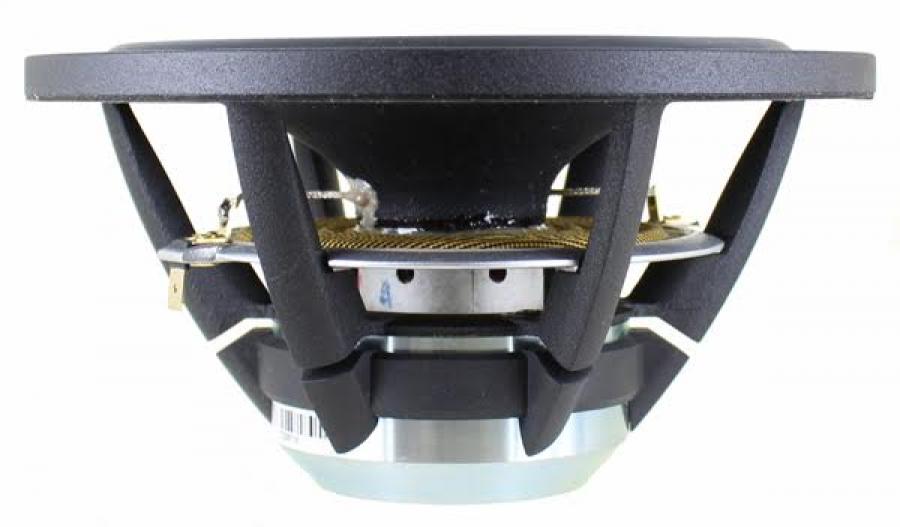

Satori MR16P-4 6" Egyptian Papyrus Cone Midrange - 4 ohm

Satori MR16P-4 6" Midrange 4 ohm

PDF Specification Sheet

• Vented aerodynamic cast aluminium chassis for optimum strength and low compression.
• Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house.
• Soft low damping rubber surround for optimum transient response.
• Advanced BIMAX spider for improved linearity.
• Powerful optimized low distortion neodymium motor system.
• Non-conducting fibre glass voice coil former for minimum damping.
• Extended copper sleeve on pole piece for low inductance and reduced distortion.
• CCAW voice coil for reduced moving mass.
• Long life silver lead wires attached 180° apart for improved stability.
• Vented pole piece and coil former for reduced compression.
• High piston to chassis diameter ratio.
• Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.
• Mode balanced cone for reduced break-up.

Enclosure Recommendation:
0.15 - 0.20 cubic foot sealed and filled with damping material for an F3 of 110 Hz. You will most likely be crossing this midrange over higher than this natural roll-off.













About SB Acoustics

Built from the foundation of a company with decades of manufacturing experience and partnered with an engineering group touted for their revolutionary designs.

SB Acoustics was formed to bring an alternative to the hi-end transducer market. Marrying the design talents of Danesian Audio(Denmark), a company filled with industry veterans, responsible for many well known and revolutionary designs, and manufacturing partner Sinar Baja Electric (Indonesia), a vertically integrated company with more than 27 years of transducer manufacturing experience.

We feel we have been able to create an affordable line of products, without compromising acoustic performance for cost. Ultimately, we invite you to judge.
