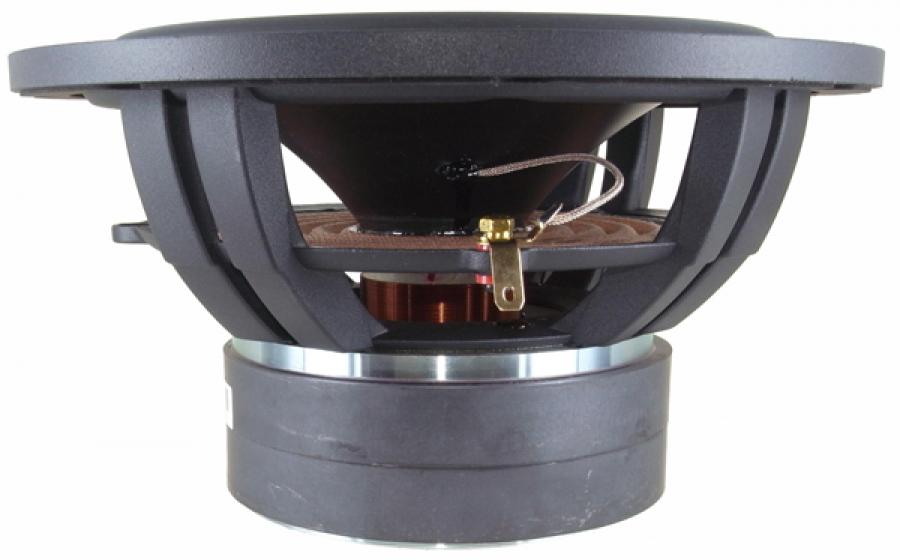

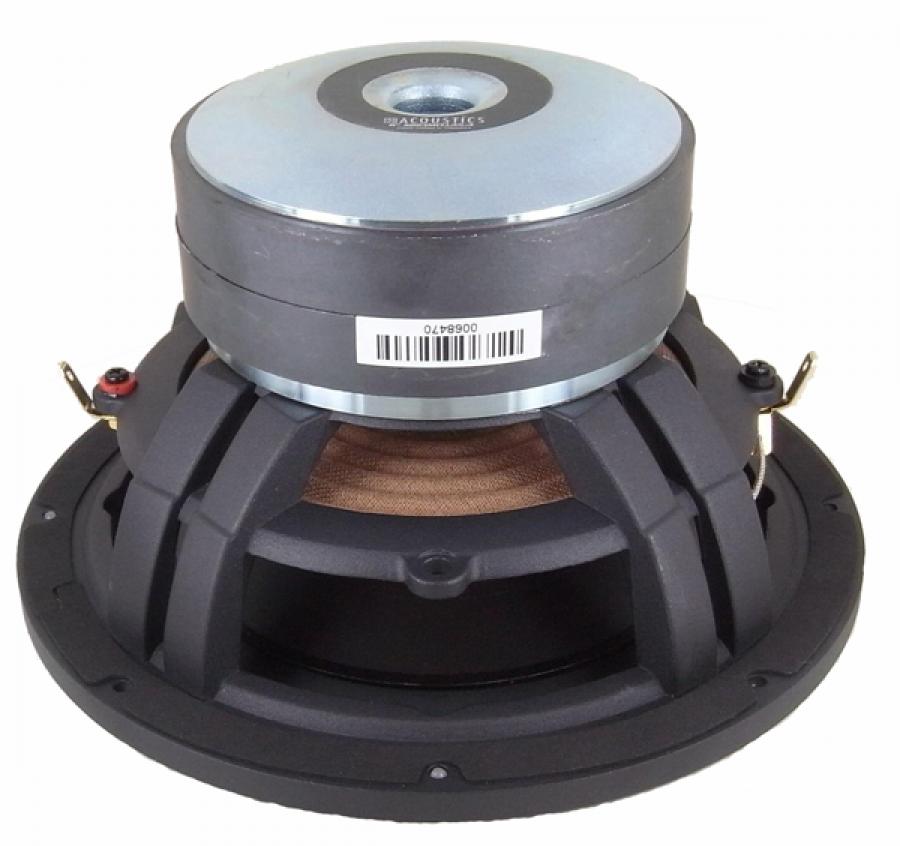

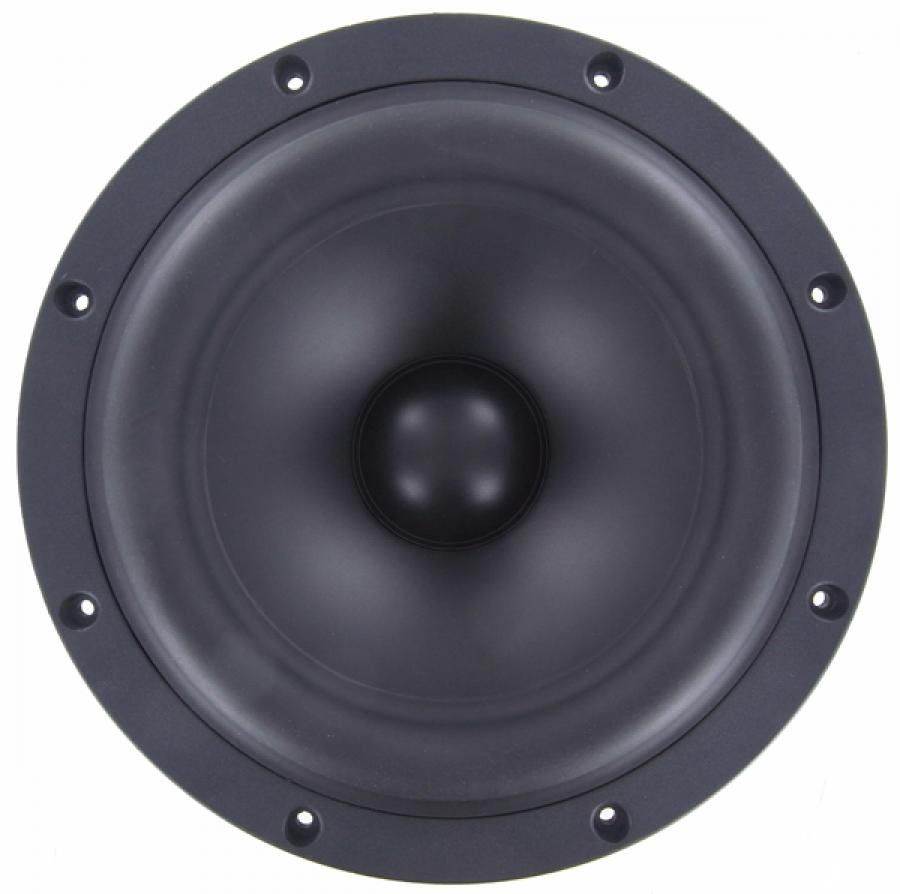

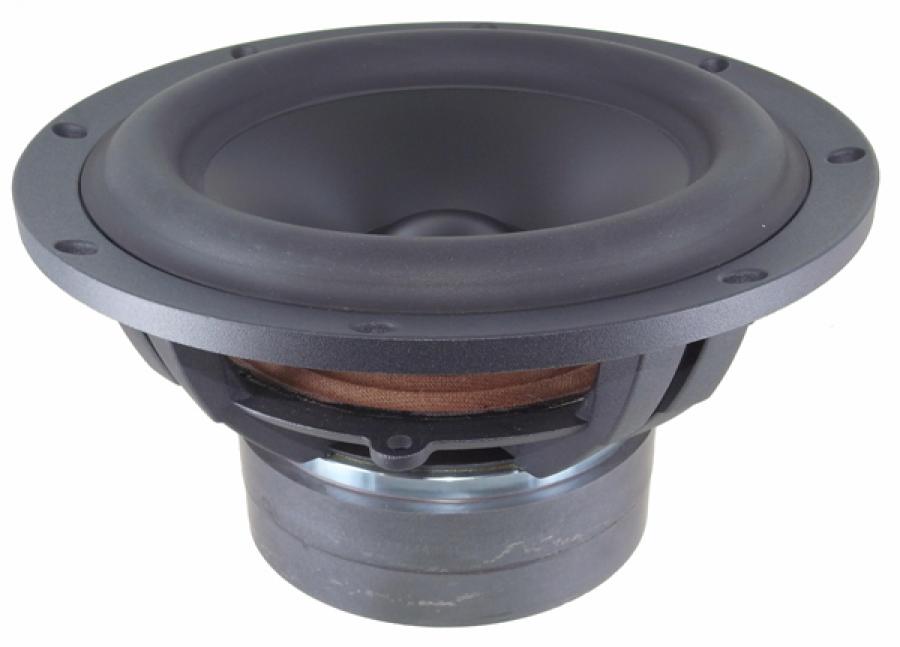

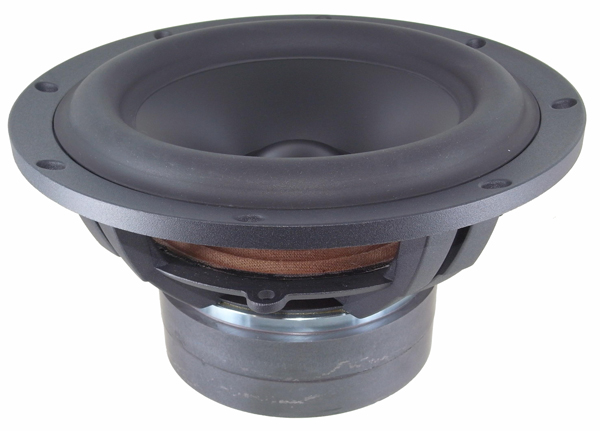

SB Acoustics SB23MFCL45-8, 8" Polypropylene Cone Sub Woofer - 8 ohm

Manufacturer: SB Acoustics

Be the first to review this product

Product ID: SB23MFCL45-8

$158.80

Product is out of stock

Add to wish list E-mail to a friend

Overview

SB Acoustics SB23MFCL45-8 8" Polypropylene Cone Subwoofer -234mm- 8 ohm

SB Acoustics SB23MFCL45-8 8" Polypropylene Cone Subwoofer -234mm- 8 ohm

Spec Sheet PDF

High Q, good for small sealed box sub. 10.5mm xmax!

Long stroke design
Linear high stability suspension
Low damping rubber surround
Long copper voice coil
Non-conducting reinforced fibre glass coil former
Very stiff mineral filled Polypropylene cone
Vented cast aluminium chassis
Large vented motor system
Long life silver lead wires
Optimized for smaller enclosures

Box recommendations:

Sealed box of 0.45 to 0.55 cubic feet for F3 of 55Hz. You would need to use a bass boost or DSP to push the driver into lower frequencies. The F6 is 42Hz and F10 is 31Hz.

Vented box of 1.2 cubic feet with a 2" port by 8" long for F3 of 30Hz.

Not rated yet

Sounds good to me.

Reviewed by shawnkenessey on 02/10/2016

Generally I'd describe this sub as a sub-bass capable woofer with a wide usable range and possessing surprising clarity in the mids. I was able to cross it with a horn at 1.2khz (horn has an L-Pad) and the two blend together surprisingly well. It's cheaper than the other woofers (Aurum Cantus/Morel Hybrid Series) I tried and sounds better than them in all ways (subjectively). One especially nice improvement is the lack of cone breakup up to 1.2khz, that and the smooth response dispel any need for a Zobel network to control the top end.
