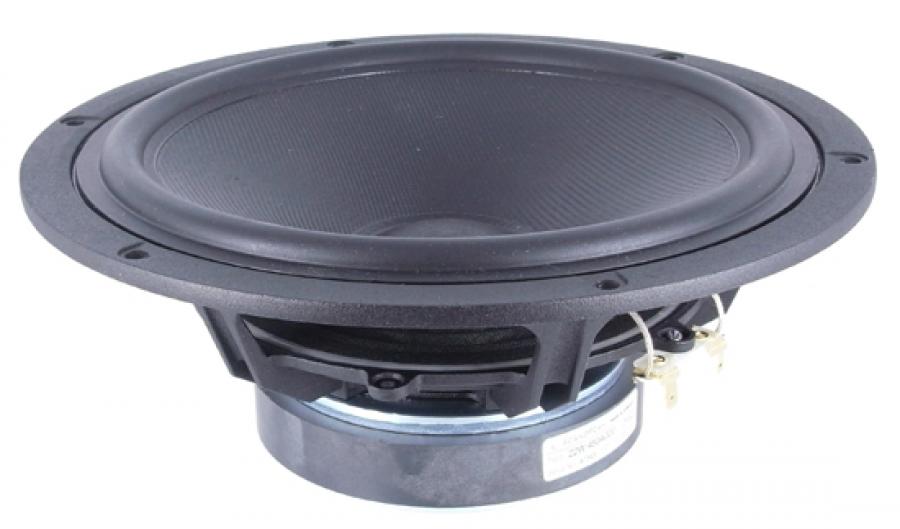

ScanSpeak Discovery 22W/4534G00 8" Fiberglass Cone Woofer, 4 ohm

Scan-Speak Discovery 22W/4534G00 8" Fiberglass Cone Midwoofer- 225mm- 4 ohm

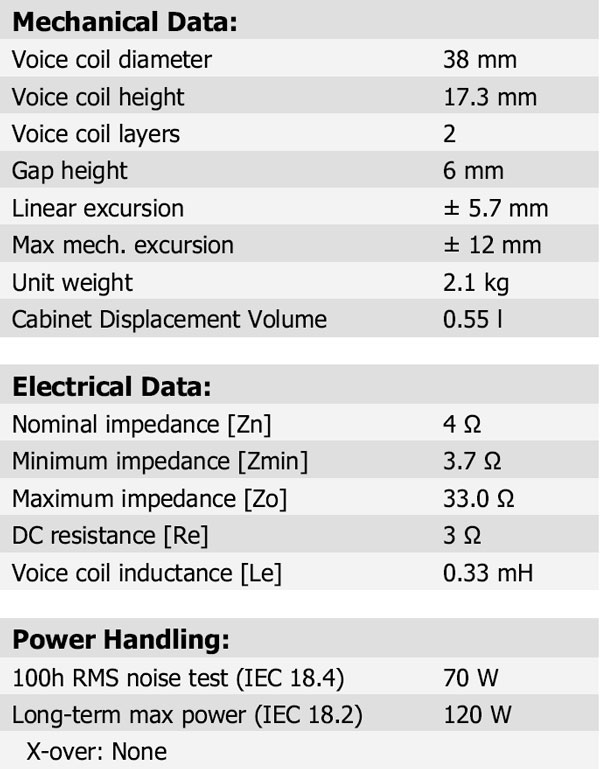

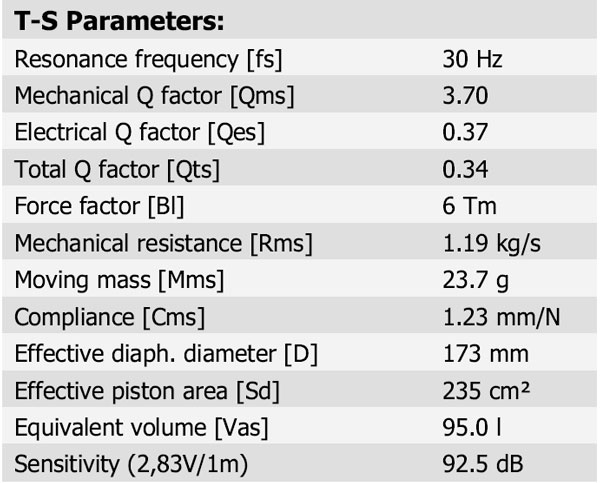

Spec Sheet PDF

Good for moderate-sized ported box (please see some Madisound suggestions below).

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point! The coated fiberglass cone reduces vibration and standing waves, and the vented motor system minimizes power compression. The combined result is a very open and dynamic sound.

The 22W/4434G has the same frame size and should be considered as a replacement for the Vifa PL22WO09-04 or the MG22WO09-04.

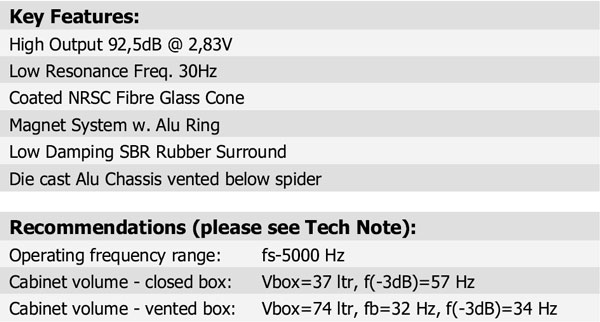

• NRSC Fibre Glass Cone; Scan-Speak Patented Technology
• Fibre Glass dust cap
• High sensitivity 92dB
• Long Linear excursion
• 30Hz Resonance Frequency
• Diecast Aluminium basket
• Vents below spider
• Low damping rubber surround

• 0.55 cubic foot (15.5 ltrs) sealed, F3 70
• 1 cubic foot (28 ltrs) vented, 2" x 6", F3 49

This product may be listed as: 22W4534G00, 22W4534G, 22W 4534G 00, 22W 4534G00, 22W 4534G
