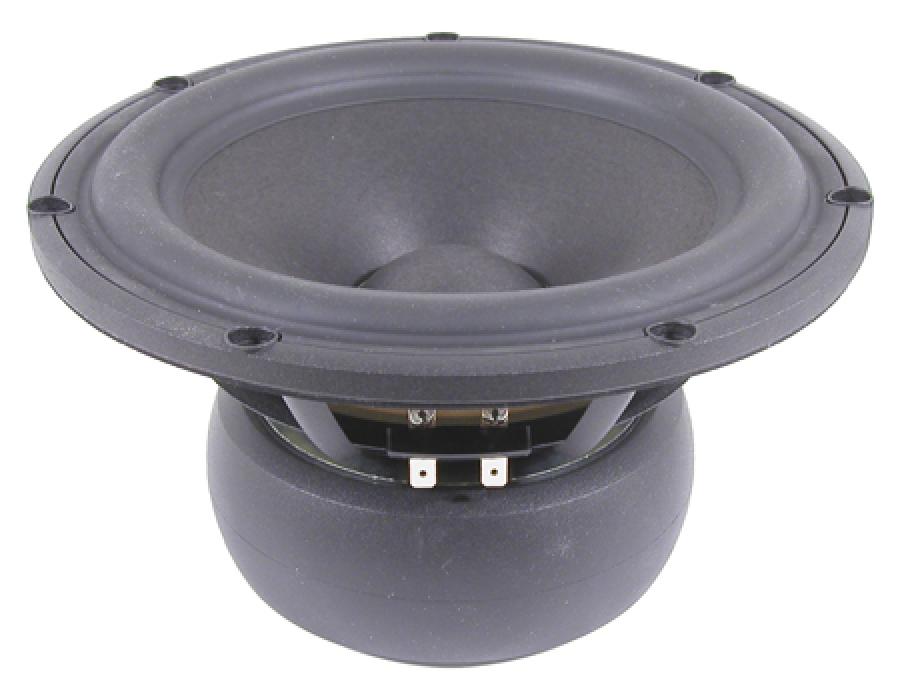

ScanSpeak Revelator 22W/8851T-00 8" Paper Cone Woofer

ScanSpeak 22W/8851T-00 8" Revelator Paper Cone Woofer- 222mm- 8 ohm

Spec Sheet PDF

Good for moderate-sized ported box, please see some suggestions below.

The Scan-speak 22W/8851T is a new addition to the Revelator line. This robust 8" woofer was designed to provide deep and accurate bass in a small enclosure. This woofer features a 2" voice coil on a titanium former, a low loss linear suspension and symmetric drive motor. The deep set hard paper cone is attached to the frame with a minimal reflection rubber surround. The 9mm X-max ensures good linear travel. The Revelator woofers and subwoofers feature very rigid cones in paper or aluminium that operate as a piston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-1) results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.

Some boxes to try:

• 1.2 cubic foot enclosure with a 2.5"Ø vent by 8" long for F3 of 38Hz
• 1.5 cubic foot enclosure with a 3"Ø vent by 9" long for F3 of 34Hz
