Special Order. Lead time is about 2-4 weeks.

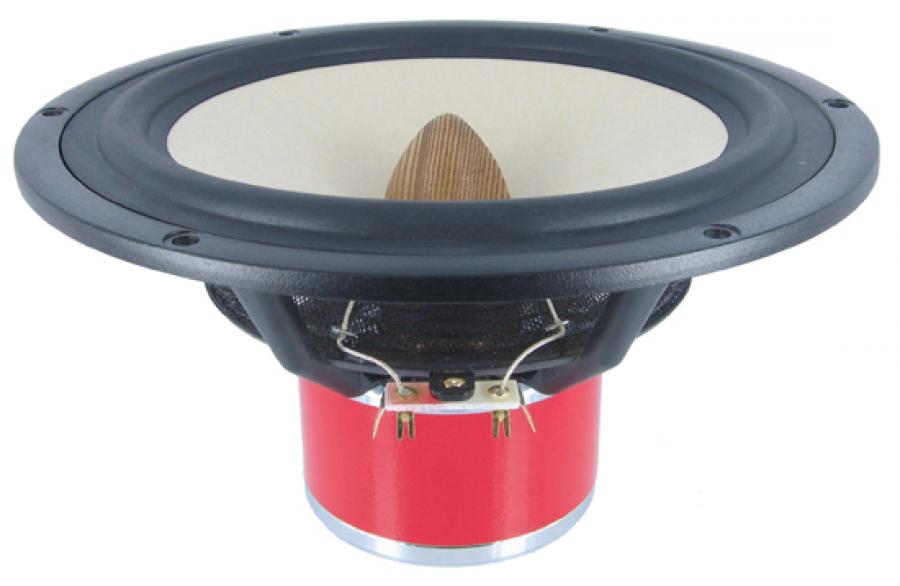

SEAS Exotic W8 X2-08 8" Woofer - Alnico Magnet- 220mm - 8 ohm- 94 dB
Spec Sheet PDF
Alnico magnet. Real wood (ash) phase plug. Woofer-midrange driver designed for smooth, wide frequency response, high sensitivity and low distortion. Designed for use with T35 Exotic tweeter. Special paper cone embedded with papyrus fibers to optimize stiffness and damping.
Seas Exotic Kit Plan
PDF includes:
- Spec sheets Seas Exotic T35 X3-06 and Exotic W8 X2-08
- Kit manual
- Kit crossover diagram
- Kit frequency chart
- Kit enclosure plan
The special paper cone is embedded with papyrus fibers to optimize stiffness and damping. A special foam rubber surround reduces mass by 40% compared to conventional rubber surrounds, resulting in higher sensitivity and excellent damping properties. Unlike most plastic foam materials, this material is stable and will offer decades of trouble-free operation.
A new and proprietary spider design dramatically improves the performance of this critical suspension part. By combining an extremely open weave with a new resin formulation, all noises normally generated by the friction of the threads rubbing together are virtually eliminated. Additionally, the open weave is highly acoustically transparent, minimizing the refl ections and resonances associated with conventional spider designs. A high temperature copper voice coil is wound on a rigid, non-conductive glass fiber former. High quality H2 lead-out wires eliminate noise due to roping and resonances. The magnet system uses an Alnico V ring magnet for high sensitivity and excellent stability.
Massive copper rings above and below the magnet gap lower distortion due to eddy currents and flux modulation. A hand-turned phase plug made from ash offers optimal radiation conditions for the critical mid frequency band. A stiff and stable injection moulded zinc basket keeps the critical components in perfect alignment. Generous windows both above and below the spider reduce sound reflection, air flow noise and cavity resonances to a minimum.
