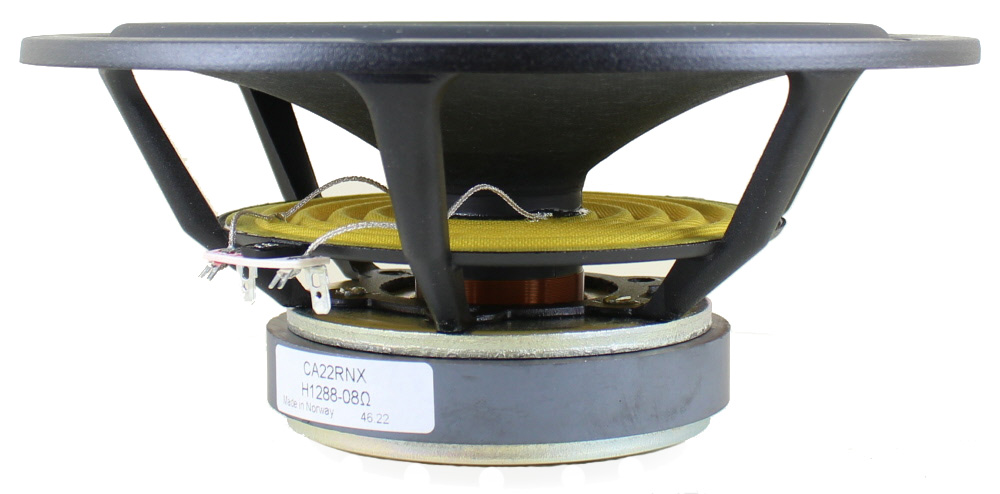

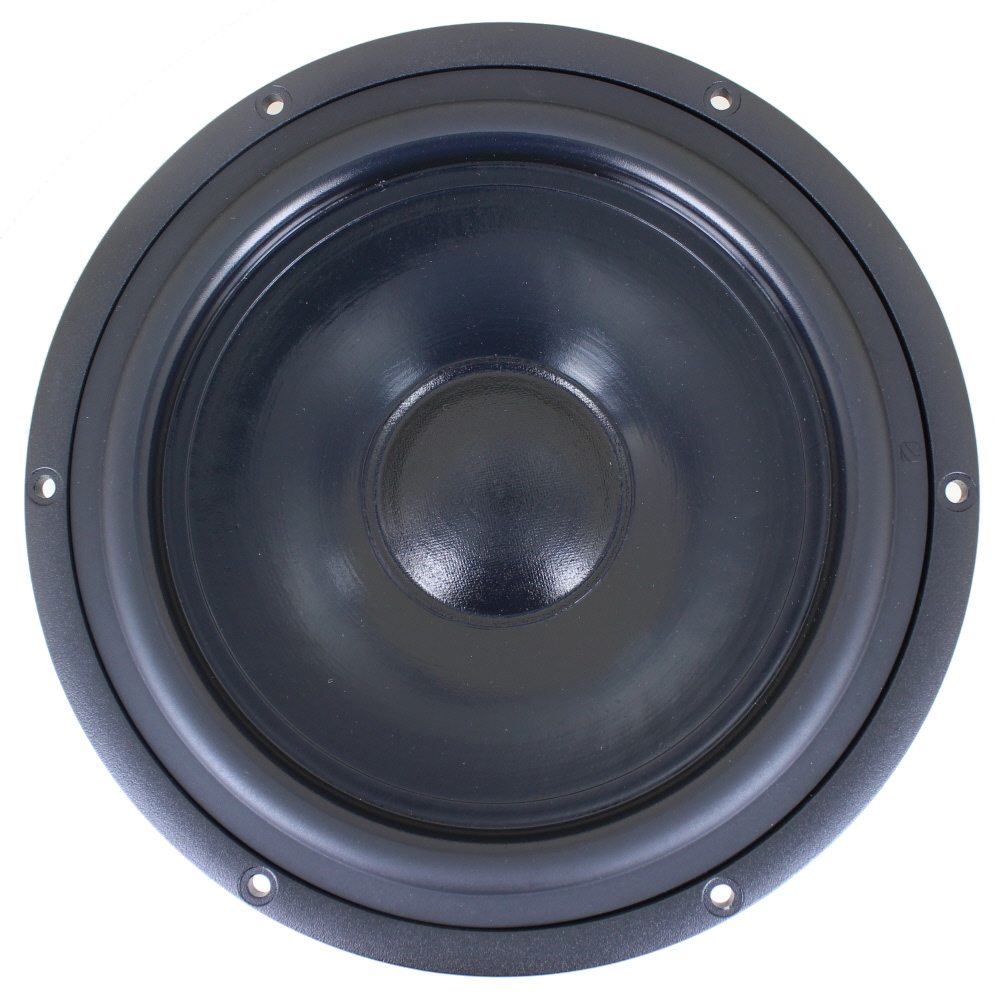

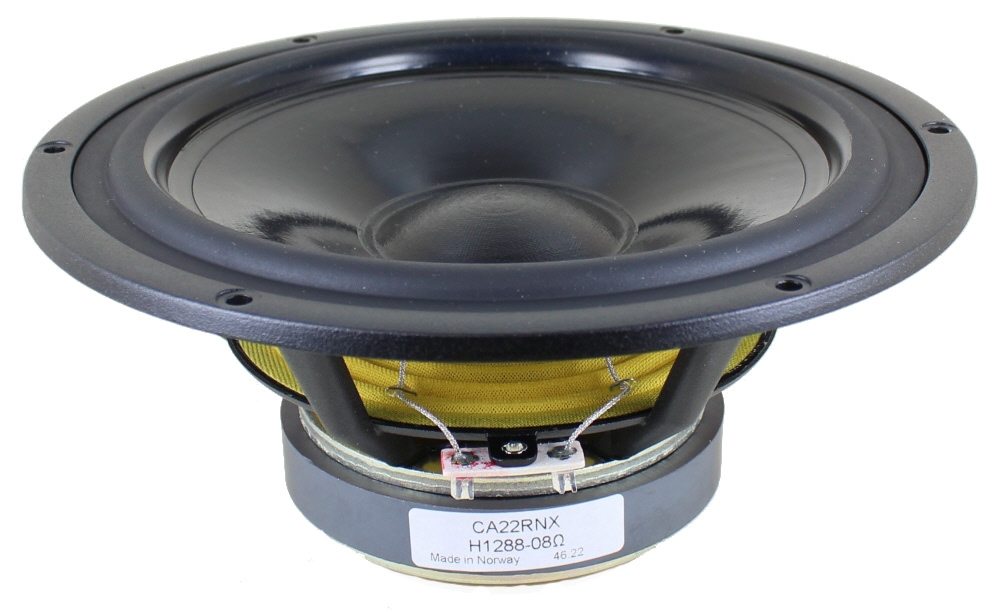

SEAS Prestige CA22RNX (H1288) 8" Coated Paper Cone Woofer

SEAS Prestige CA22RNX (H1288) 8" Coated Paper Cone Woofer- 220mm- 8 ohm

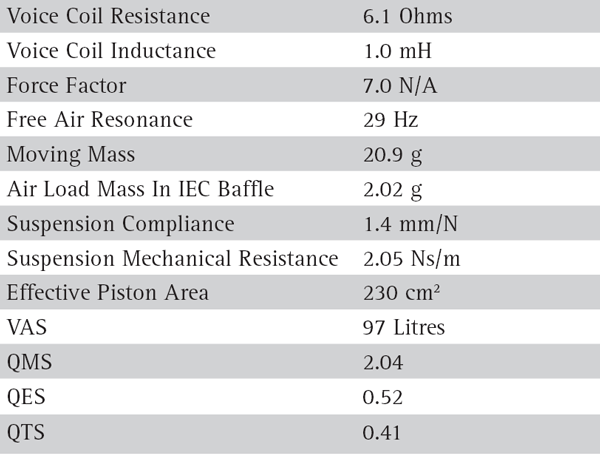

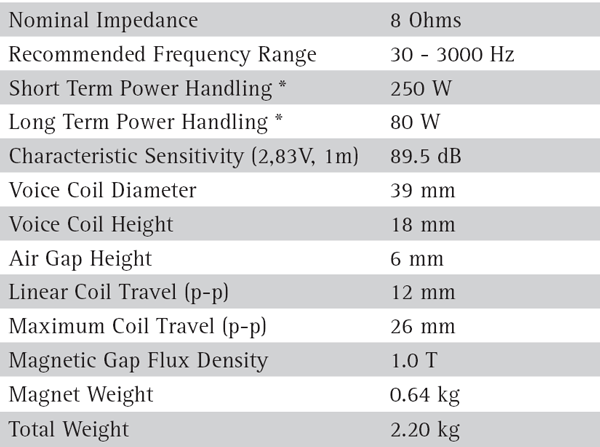

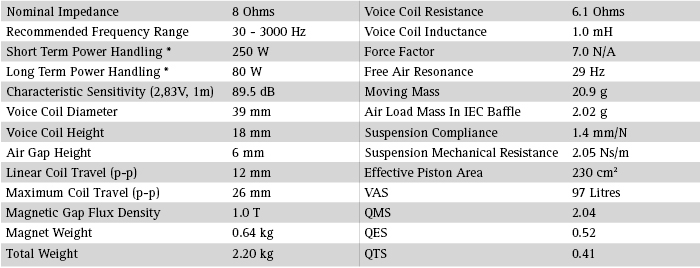

Spec sheet: Seas Prestige CA22RNX H1288 Woofer

Classic handcoated paper cone and matching natural rubber surround produce a well behaved roll off characteristic and reduce potential resonance problems. High Q, good for sealed box.

Passive Crossover Design for H1288 + MDT30S

Passive Crossover Design for H1288 + H1216 + H0737 3way

• Long, high temperature voice coil wound on an aluminium voice coil former gives low distortion and high power handling capacity.
• Large magnet system provides high efficiency and good transient response.
• Bumped backplate in the magnet system allows maximum utilization of the long voice coil without mechanical limitation.
• Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.
• Large windows in the basket both above and below the spider reduce sound reflexion, airflow noise and cavity resonance to a minimum.

Enclosure Suggestions

• Sealed box of 0.70 - 1.0 cubic foot for F3 of 60Hz and F6 of 45Hz
• 1.5 cubic feet with a 3" vent by 7" long for F3 of 40Hz
• 2.0 cubic feet with a 4" vent by 6.5" long for F3 of 37Hz
