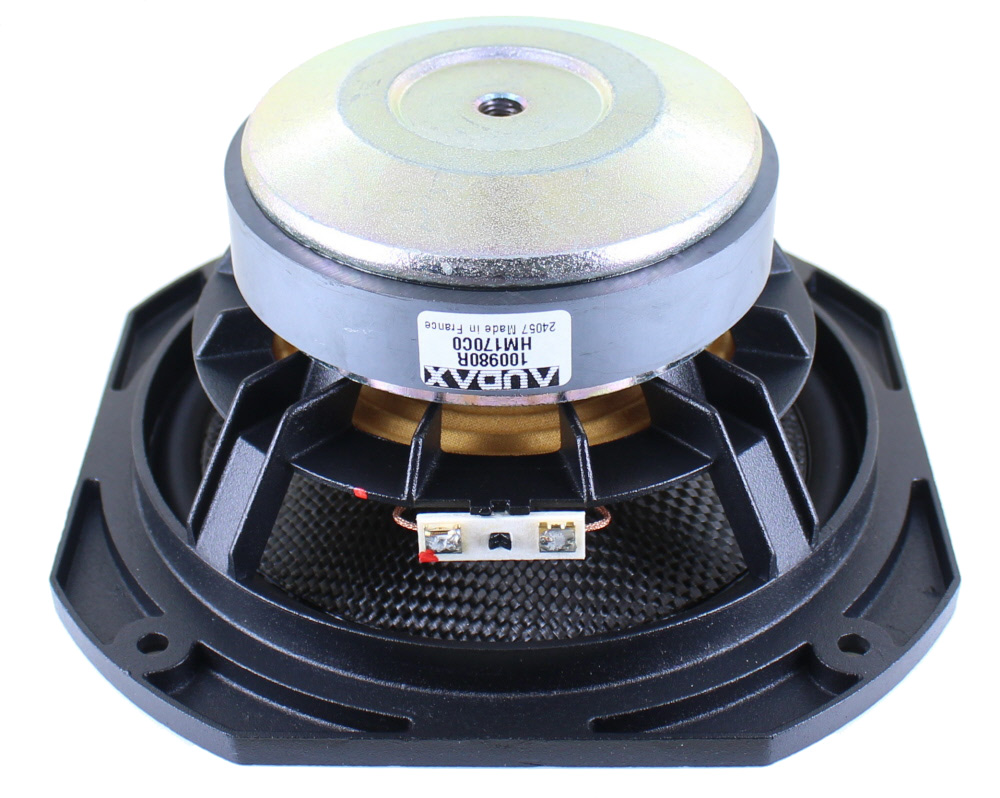

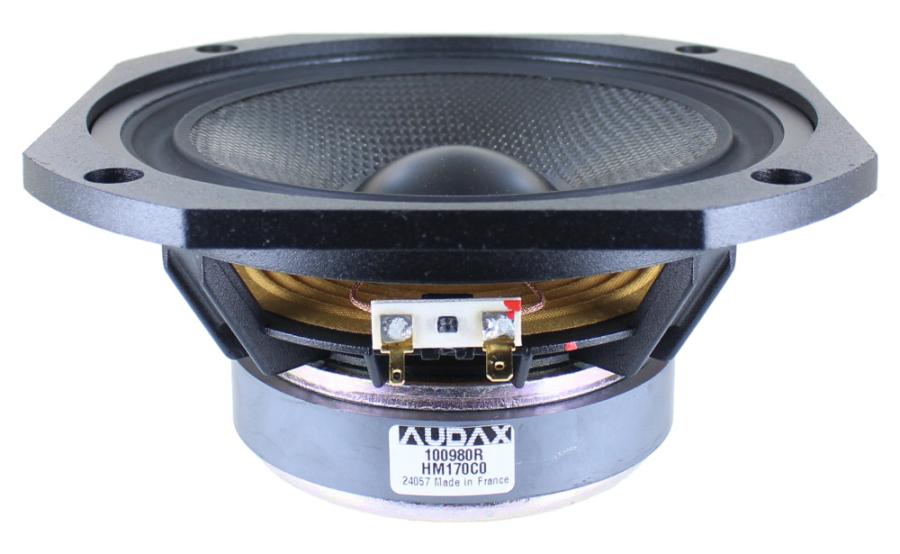

Audax HM170C0 6.5" Woven Carbon Fiber Woofer
Designed for high-end systems, this driver utilizes a very stiff and lightweight woven carbon fiber cone. The use of this material results in a dynamic bass response, superb midrange clarity and an extremely natural top end roll off. Unobstructed venting of the Zamak die cast chassis, plus the use of a vented pole piece contributes to the dramatic transient response. Other features include a high compliance rubber suspension, soft polymer dust cap, edge-wound copper voice coil on a fiberglass reinforced Kapton former, and gold plated terminals. The HM170CO provides a very natural midrange quality and excellent off-axis performance. Made in France.
- Non-resonant cast frame
- High loss rubber surround
- High-temperature voice coil
- Ventilated spider
- Flat and extended response to 5kHz

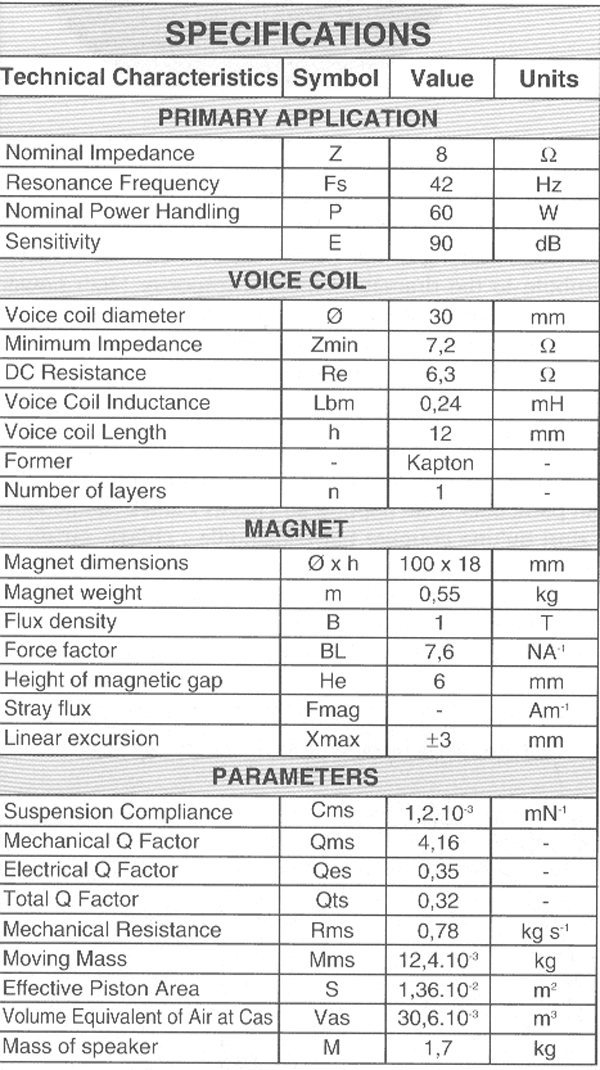

Specifications:
- Power handling: 60 watts RMS/85 watts max
- Voice coil diameter: 1-1/8"
- Voice coil inductance: 0.24 mH
- Impedance: 8 ohms
- DC resistance: 6.3 ohms
- Frequency response: 42-6,500 Hz
- Magnet weight: 20 oz.
- Fs: 42 Hz • SPL: 90 dB 1W/1m
- Vas: 1.08 cu. ft.
- Qms: 4.16
- Qes: 0.35
- Qts: 0.32
- Xmax: 0.3.0mm
- Net weight: 3.75 lbs.

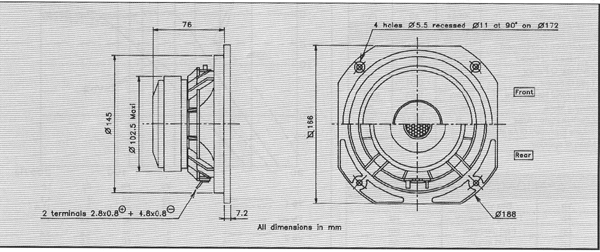

- Dimensions: Overall Diameter: 6-1/2", Cutout Diameter: 5-3/4", Mounting Depth: 3-1/4", Magnet Diameter: 3-7/8", Magnet Height: 1-1/8"
- 0.25 cubic foot sealed box has an F3 of 105Hz
- 0.4 cubic foot box with 2" diameter port by 7" long has an F3 of 65Hz
- 0.7 cubic foot box with 2" diameter port by 3" long has an F3 of 55Hz
Made in France
