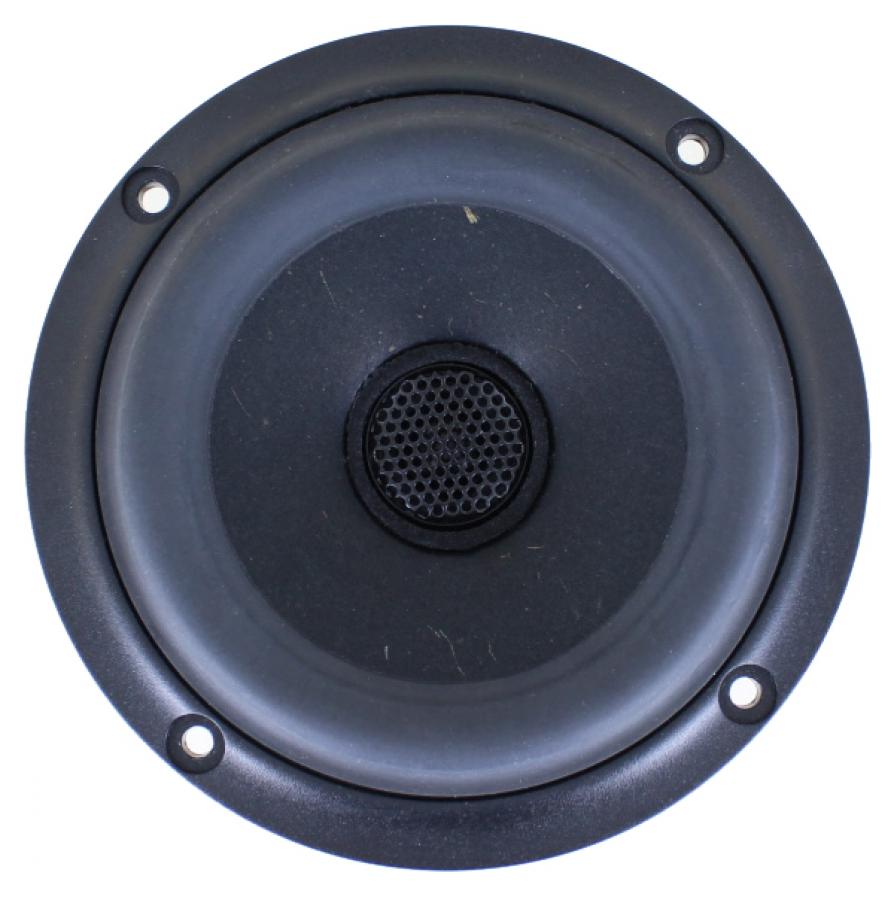

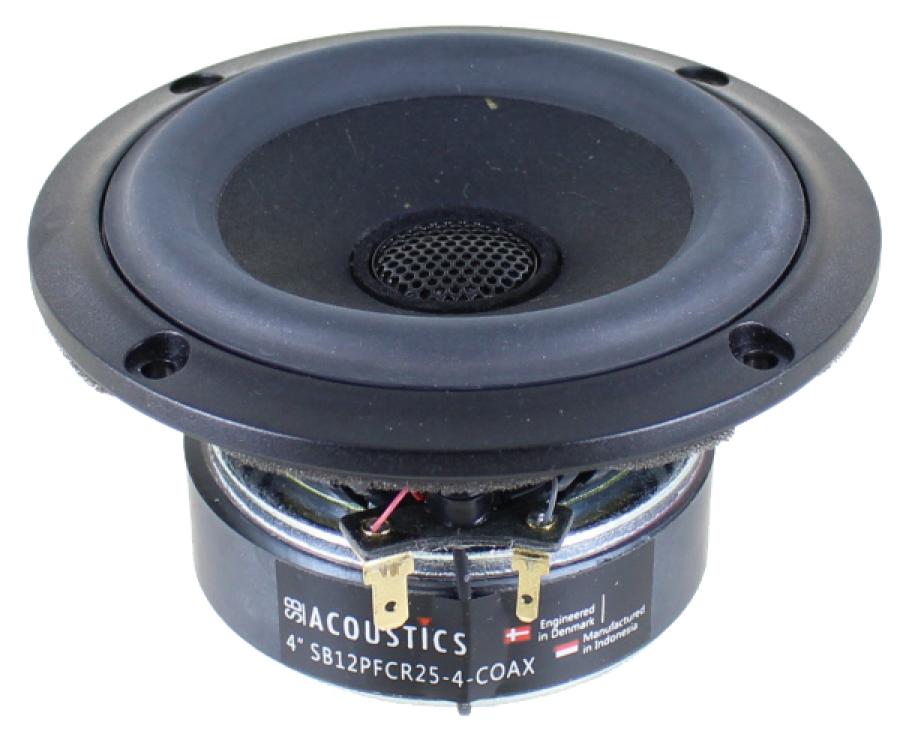

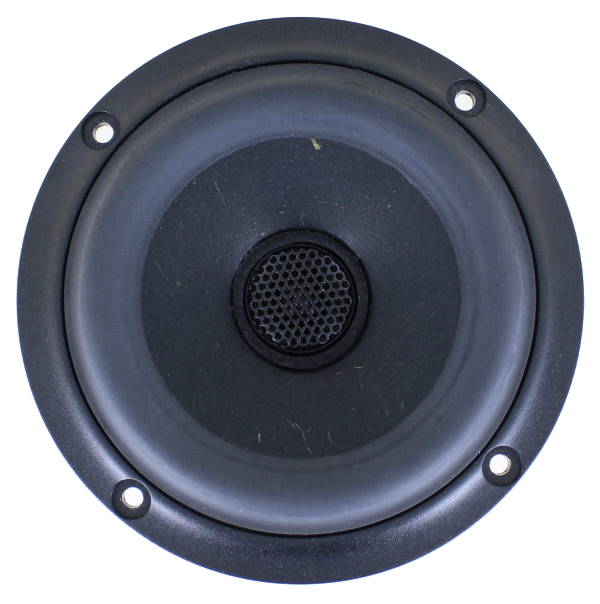

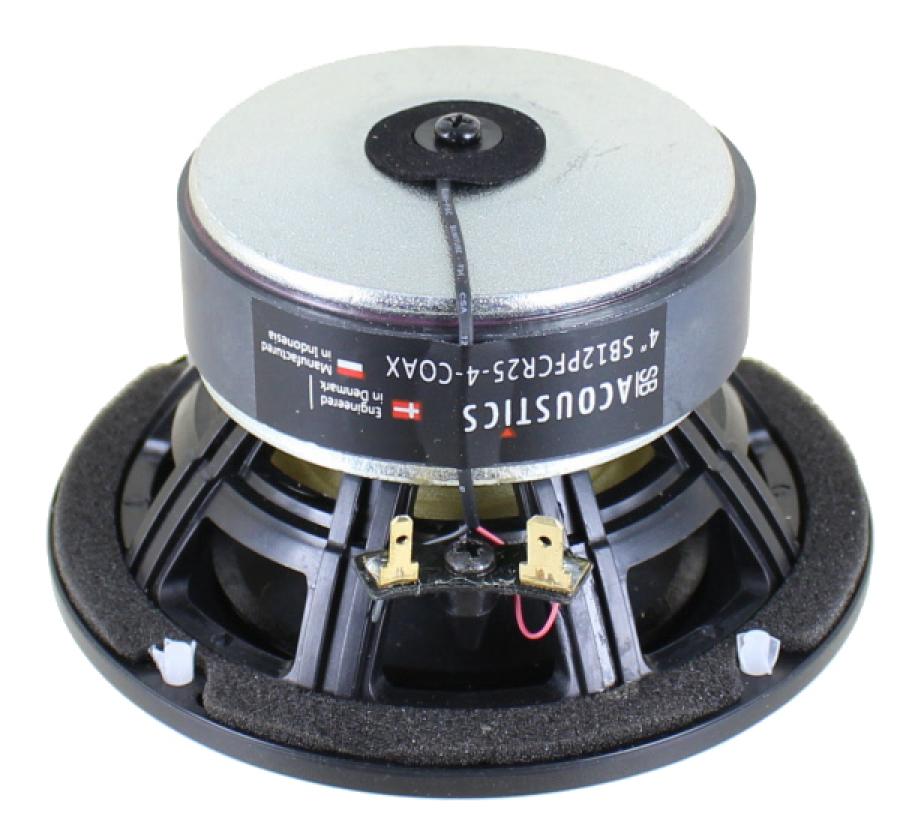

SB Acoustics SB12PFCR25-4-COAX 4" Coaxial- 4 ohms-ROUND
Manufacturer: SB Acoustics
Product ID: SB12PFCR25-4-COAX
Price:
$65.70
Overview
SB Acoustics SB12PFCR25-4-COAX 4" Coaxial- 4 ohms- ROUND

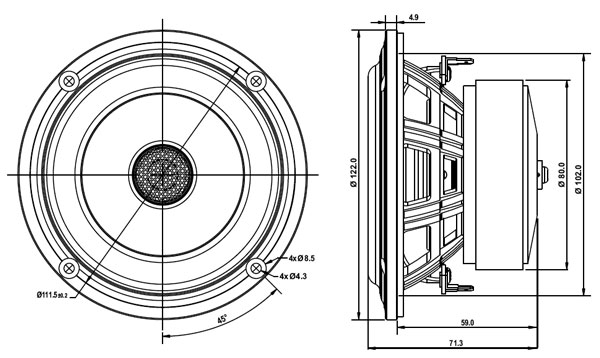

SB Acoustics SB12PFCR25-4-COAX 4" Coaxial- 4 ohm- ROUND- 122mm
Spec Sheet PDF

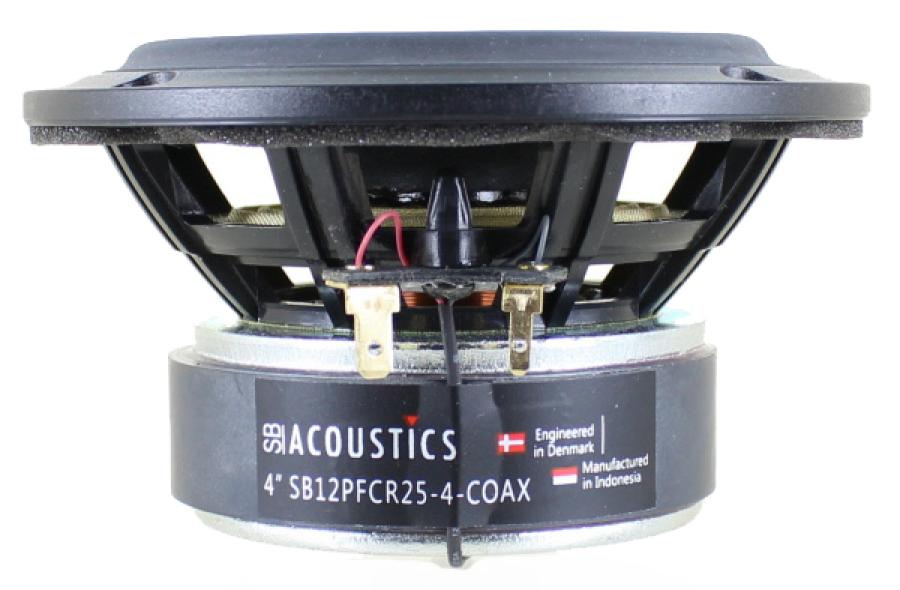

- Vented reinforced plastic chassis
- Proprietary cone material with natural fibers made in-house
- Soft low damping rubber surround for improved transient response
- Optimized motor system
- Non-resonant long life lead wires
- Compact large surround dome tweeter
Suggested Box Alignments:
- Sealed box of about 0.1 cubic feet (2.8 liters) for F3 of 145Hz
- Vented box of 0.1 cubic feet (2.8 liters) with 1" diameter vent by 4" long for F3 of 70Hz
For this SB12 you'd use the first row- the 5.6mfd and a 15mfd in series.
Crossover Schematic PDF
