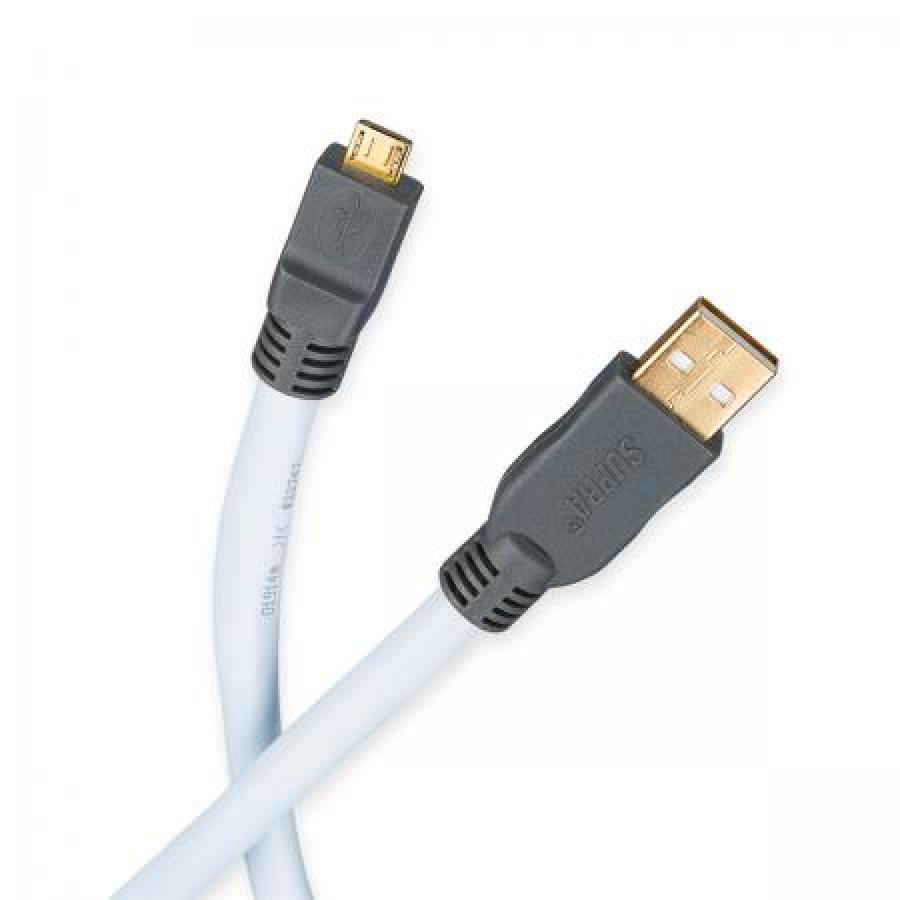

SUPRA USB 2.0 High-Speed A - Micro B USB Cable
Please use the pull-down menu to select length from 1 to 3 meters.
The sales of USB devices have increased exponentially and we are proud to offer our new cable for: digital audio convertors, music streaming from computers, multimedia players, among other devices providing a USB interface. There is a great need for better cables since the failed bit transmissions will undoubtedly be detected when listening to your music, since the error correction and number of re-tries will leave audible traces.
Features & Benefits:
- Correct data transfer - utmost sound capabilities
- Perfect shielding and twinning - minimum signal degradation
- Robust type A and type B connectors - reliable, long mobile life
- Made in Sweden - Modern research, production and quality
Mechanical Specifications
| Standard |
USB 2.0, Hi-Speed |
|
|
| Connectors |
USB A Male to Micro USB Male |
|
|
| Signal Direction: |
Bi-directional |
|
|
| Application Examples: |
Computer, DAC |
|
|
| Data transfer rate: |
480 Mbit/s |
|
|
| Solder Tin: |
Almit SR-34 Super |
|
|
| Cable clamping: |
Molded |
|
|
| Number of pairs: |
2 |
|
| Cross Area: |
0.24 / 23 |
mm2/AWG |
| No. Wires/Conductor: |
19 |
|
| Wire diameter : |
0.127 |
(mm) |
| Wire Material: |
Tin Plated OFC |
|
| Insulation: |
PE |
|
| Screen: |
Aluminium/Pet Foil |
|
| Jacket: |
PVC |
|
| Flameretardancy: |
No |
|
| Ext. Size |
7.5 |
(mm) |
| Weight |
56 |
(g/m) |
Electrical performance
| Resistance: |
72 |
(Ohm/km) |
| C: |
52 |
(pF/m) |
| Imp. Z: |
90 |
Ohm |
| Velo. Factor |
0.66c |
|
