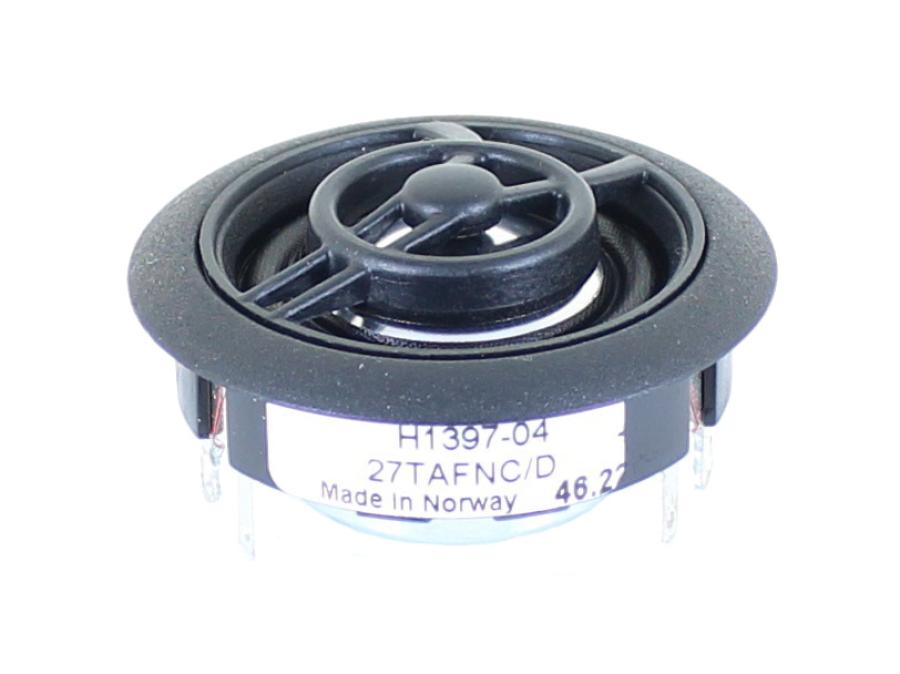

SEAS Prestige 27TAFNC/D (H1397) 1" Aluminum Dome Tweeter

SEAS Prestige 27TAFNC/D (H1397) 1" Aluminum Dome Tweeter- 53mm- 4 ohm

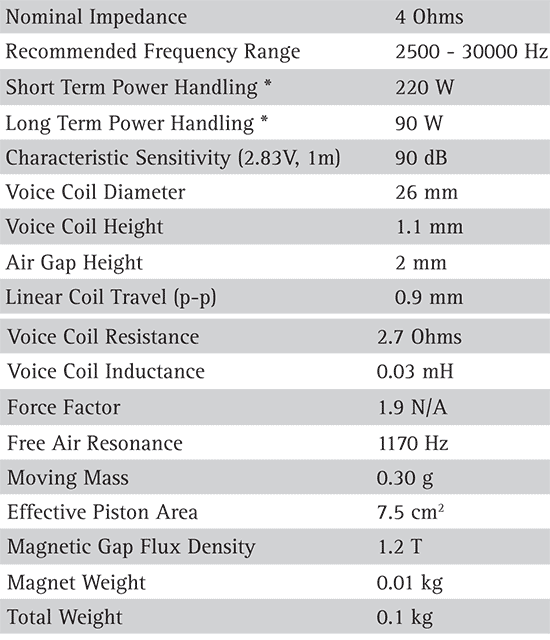

Spec Sheet PDF

Perfect for autosound. Compact neodymium magnet tweeter for high quality speaker design in small cabinets and automobiles. Aluminum/magnesium alloy diaphragm with pistonic behavior throughout the audible frequency range, resulting in a good dispersion also above 10kHz. Wide roll Sonomex surround together with a double chamber magnet system results in a low resonance frequency.

The critically designed diffusor compensates for a slight axial roll off towards 20 kHz and reduces resonances above 20kHz. Very low magnetic stray fields makes this unit suitable for A/V systems. Voice coil immersed in magnetic fluid, allowing high power handling capacity and simplified crossover design.

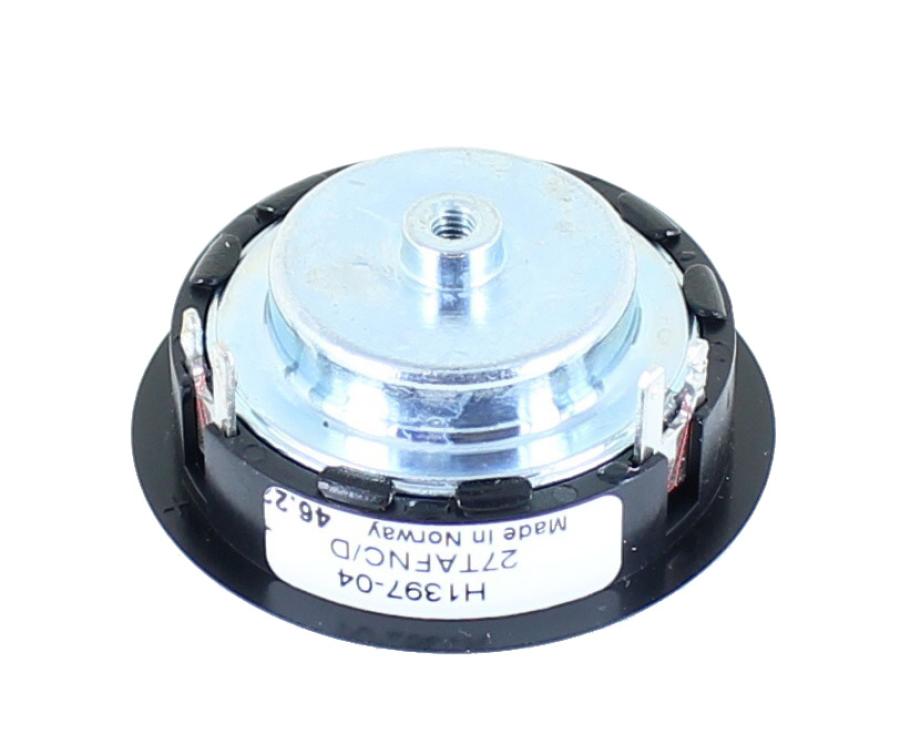

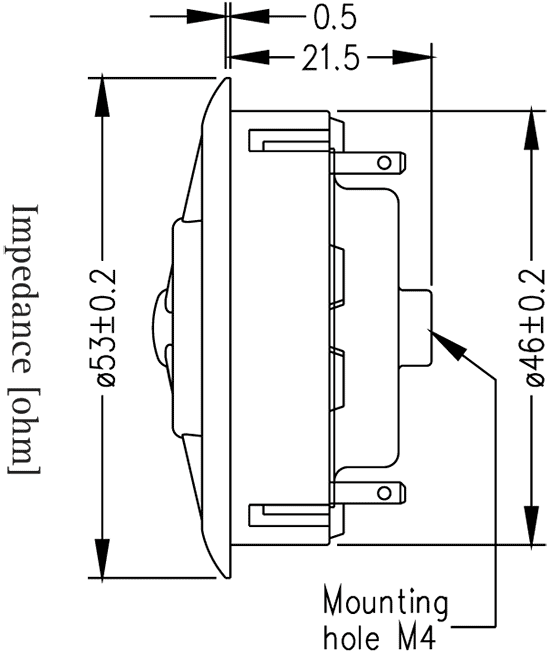

Seas does not provide mounting hardware for this tweeter. It can be mounted by press fit, mounting from behind or using a modified mounting cup. The back of the tweeter is threaded for an M4 bolt for fastening from behind. LPG tweeter mounts will also work with slight modification. You will have to drill a couple holes through the back of the plastic mount for proper fit. Use an adhesive to glue the tweeter into the mount. The Vifa tweeter mounts will not work for this tweeter.
