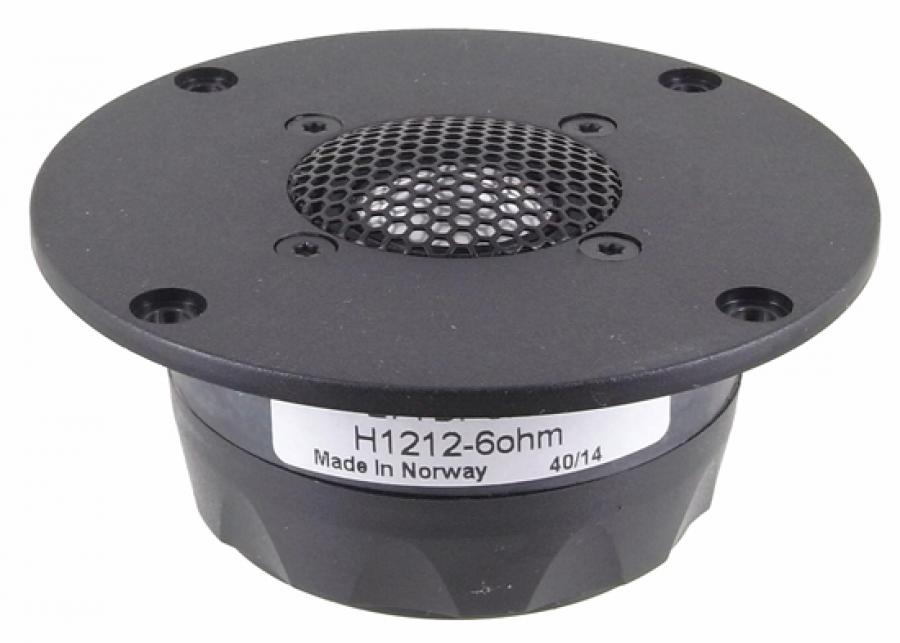

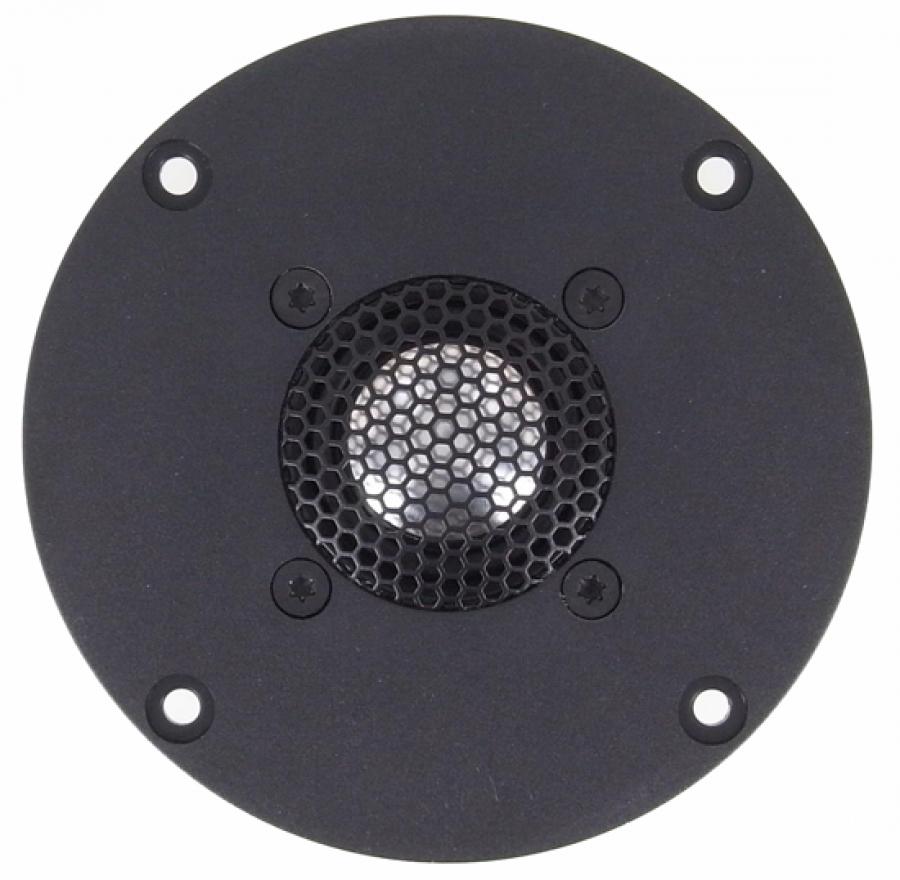

SEAS Prestige 27TBFC/G (H1212) Aluminum/Magnesium Dome Tweeter

Volume Pricing
10% off
Overview
SEAS Prestige 27TBFC/G (H1212) Aluminum/Magnesium Dome Tweeter- 104mm - 6 ohm
High Definition metal dome tweeter with a wide, soft polymer surround and rear chamber. Very popular High Definition metal dome tweeter with a wide, soft polymer surround and a rear chamber. Aluminum/magnesium alloy diaphragm with pistonic behavior throughout the audible frequency range, resulting in a good dispersion also above 10kHz.
Aluminium/magnesium alloy diaphragm with pistonic behaviour throughout the audible frequency range, resulting in a good dispersion also above 10kHz. A Hexagrid protects the diaphragm, and supports a phase plate which compensates for a slight axial roll off towards 20 kHz. Sonomax surround for low resonance and excellent mechanical linearity. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. Stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies. Precision moulded chassis from glass fibre reinforced plastic, and its front design offers optimum radiation conditions.
These tweeters are the best known upgrade & replacement for the Vifa D25AG Aluminum dome tweeters. It has nearly identical specs, no changes to the crossover are required. Please note that the + & - male tabs are spaced 180 degrees on the new tweeter, so you will most likely have to notch out the through hole to accommodate the new tweeter tabs. That will be covered back up once you mount the tweeter back into your cabinet.
Works for Vifa D25AG05, D25ASG05, D25AG35, D25AG68 (Thiel CS 1.5). This will work for any Vifa tweeter with "25AG" in the number that is on a 104mm circular flange.
Also the logical replacment for older Seas Alumiunum dome tweeters with 25TA or 25TAF in the product number and also on a 104mm circular flange. The tabs are spaced differently on the old tweeters, so you need to notch out the cabinet for the location of the tabs on the new tweeters.
Uses QC110 quick connect for both tabs.
Replacement voice coil H9932
Drop-in replacement for Thiel 1.5s
They fit eventually perfectly (same depth and outer diameter). The only complication was that I had to cut new notches for the tweeter's tabs-- no small feat given the 2.5 inch thick baffles on the Thiels.
Loving the H1212
Nice performance without harshness
So it doesn't seem fair to be too hard in my review, since the Seas cost less than half that of the Focals. This driver has a lot of the right stuff, especially for an 8 inch two way system. Such a system requires that the tweeter be crossed as a very low frequency since nearly all 8 inch drivers start to come apart above 1000 cycles. Since this tweeter has such a low fs due to its rear chamber design, it can be crossed as low as 1500 and still function quite well. I am crossing it over at 2 khz with no problems, and I also played it through an alternate system crossed at 1.5 khz, and it still performed well.
I am a fan of hard dome tweeters, and various metals seem to be the material of choice for designers in this school. The potential drawback to such materials involves potential harshness in the very upper range. My TC120's do not exhibit any of this, but my Focal TC 90's do indeed suffer this problem.
These Seas tweeters do not have any of this harshness at all, even in an active design with the absence of passive crossover parts that might dampen that harshness down a bit, as is the case with my TC 90's.
Having said that, these tweeters also do not come close to offering the level of upper range clarity that I am used to with the Focals, and that I was hoping for. In comparison to the Focals (and this comparison was done by swapping out just the tweeters, leaving everything else exactly the same, which one can do easily in an active system), these Seas tweeters sound like someone placed a cloth over the tweeters.
Please don't misunderstand, in my very clean, active two way system that I built, the Seas performed very well, and most folks would likely be very happy with them. So the problem is due more to my expectations and demands than to these tweeters. They will be getting a new home in a future active, two way system I will be building in the coming months for my truck, and their protective screen will serve in this setting very well.
