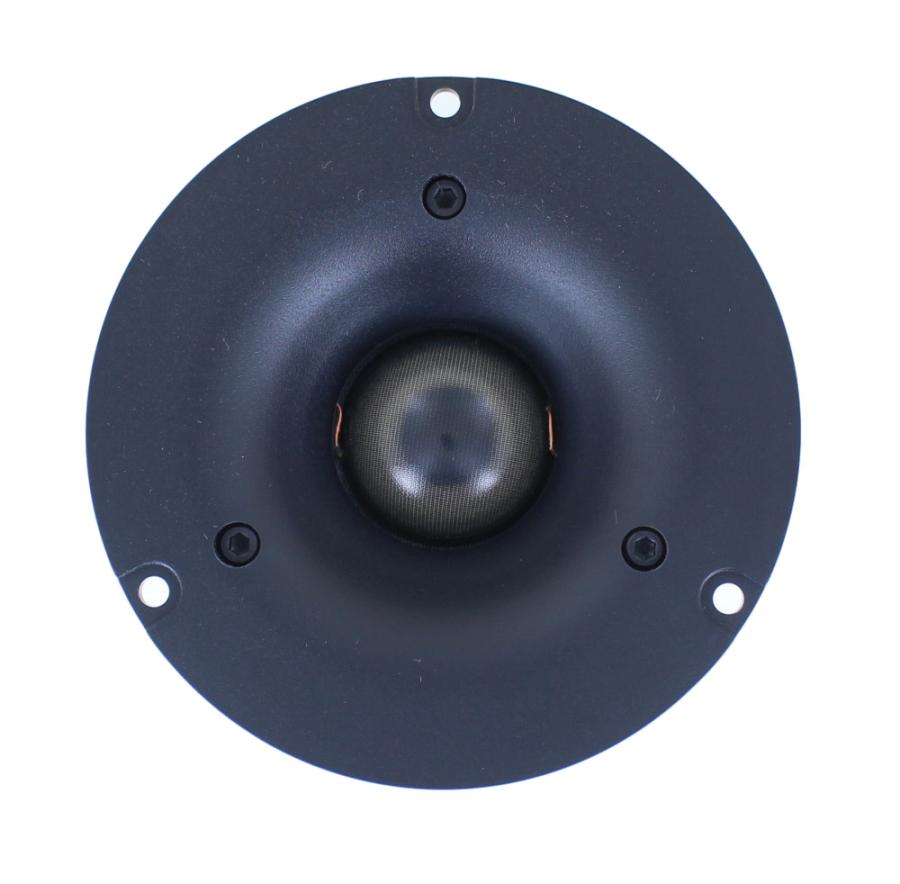

Morel CAT378 Classic Advanced Series Horn Tweeter

Morel CAT378 Classic Advanced Series Horn Tweeter -94mm- 8 ohm- 93dB

Replaces the older MDT-37. High-output with 28mm textile dome, large ferrofluid-cooled Hexatech aluminum voice coil, ferrite magnet, damped rear chamber for low Fs, and gold-plated terminals. Smooth frequency response and excellent power handling.

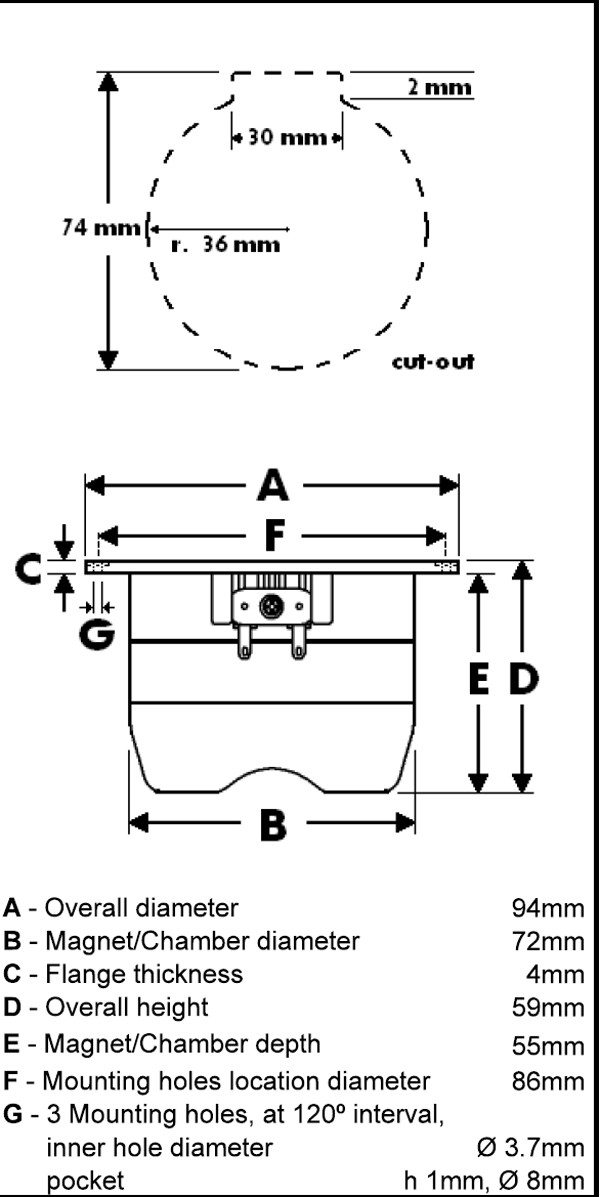

Spec sheet: Morel CAT378 Classic Advanced Tweeter

• 94mm Horn Loading Face Plate
• Hand coated fabric dome
• Hexatech aluminum voice coil
• Replaceable dome/coil assembly
• High sensitivity (93dB)
• Gold plated terminals
• Nominal Impedance 8 ohm
• Frequency range 2000 to 22,000Hz
• Voice coil replacement code: R-37

 if not soldering.
