miniDSP 4x10 Hd Digital Signal Processor

On extended backorder, ETA unknown

MiniDSP 4x10 Hd Digital Signal Processor

*Used as the DSP for the Linkwitz Lab LX521 and LXstudio speaker kits*

miniDSP 4x10 Hd is a versatile multi-channel Digital Signal Processor (DSP) for analog and digital audio sources. Combining high quality audio algorithms along with a flexible software configuration, this platform follows the footsteps of our successful line of processors. With its balanced & un-balanced analog & digital audio I/O, the platform easily fits in the audio chain of most systems. Engineered for durability, the platform is packaged in a sturdy powder coated steel enclosure. The removable rack ears and thick brushed aluminum front panel match the needs of consumer (Home AV) or commercial (ProAV) installs.

Finally, miniDSP 4x10 ranks high on versatility thanks to our unique product concept of audio plug-ins: 'a single hardware platform for many applications'. From a multi-way speaker crossover unit to multi-channel equalizer, the unit is easily configured real time from the Mac/Windows control interface. Once the unit configured, no computer is required anymore and the control of presets, master volume and digital source selection is available from the front panel encoder or Infrared (I.R) receiver.

Technical Specifications

• 28/56bit DSP Engine
• 24 bit ADC/DAC IC with 114dB SNR
• 48/96kHz sampling rate depending on plug-in
• Digital (2 x IN, 2 x OUT over SPDIF/Toslink/AES-EBU) and Analog (2 x IN, 8xOUT balanced and unbalanced) connectivity
• Front panel rotary encoder and learning IR control
• Plug&Play USB driver and Software configurable for real time configuration by miniDSP plug-ins from Mac/Windows
• No computer required once configured
• CE/FCC certified - ROHS compliant

Please download for specific information

• miniDSP 4x10 Hd Datasheet
• miniDSP 4x10 Hd User manual

Application Notes

• Using the miniDSP 4x10 for 3 or 4way crossovers
• Linkwitz Lab LX521 design

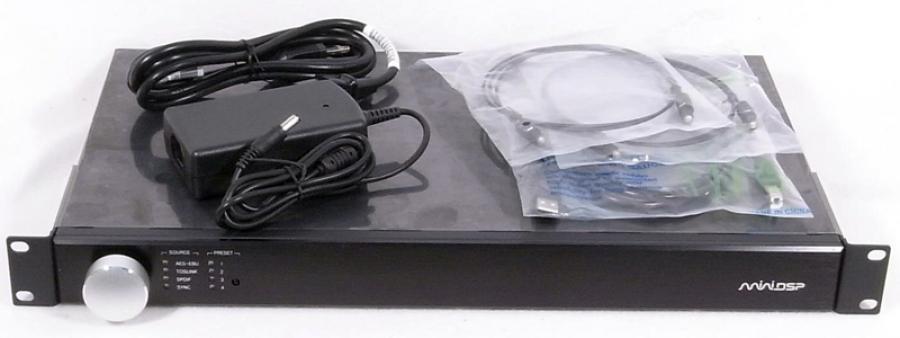

Each miniDSP 4x10 HD Purchase Includes:

• 1 x miniDSP 4x10 HD boxed in rackmount enclosure (removable ears)
• 1 x 12VDC universal power supply. IEC type removable plug
• 1 x Shielded USB cable (1.5m)
• 1 x Toslink audio cable
• 1 x miniDSP Plug-in code ~ a $10 value

  Your code is shipped with the miniDSP unit
  Redeem @ miniDSP.com (create a user account @ www.minidsp.com> log in > go to www.minidsp.com/coupon > select appropriate plug-in > enter code & click "Validate" > download to your computer from your account via "User Downloads at top right of screen)

Protective cling plastic on chasis
