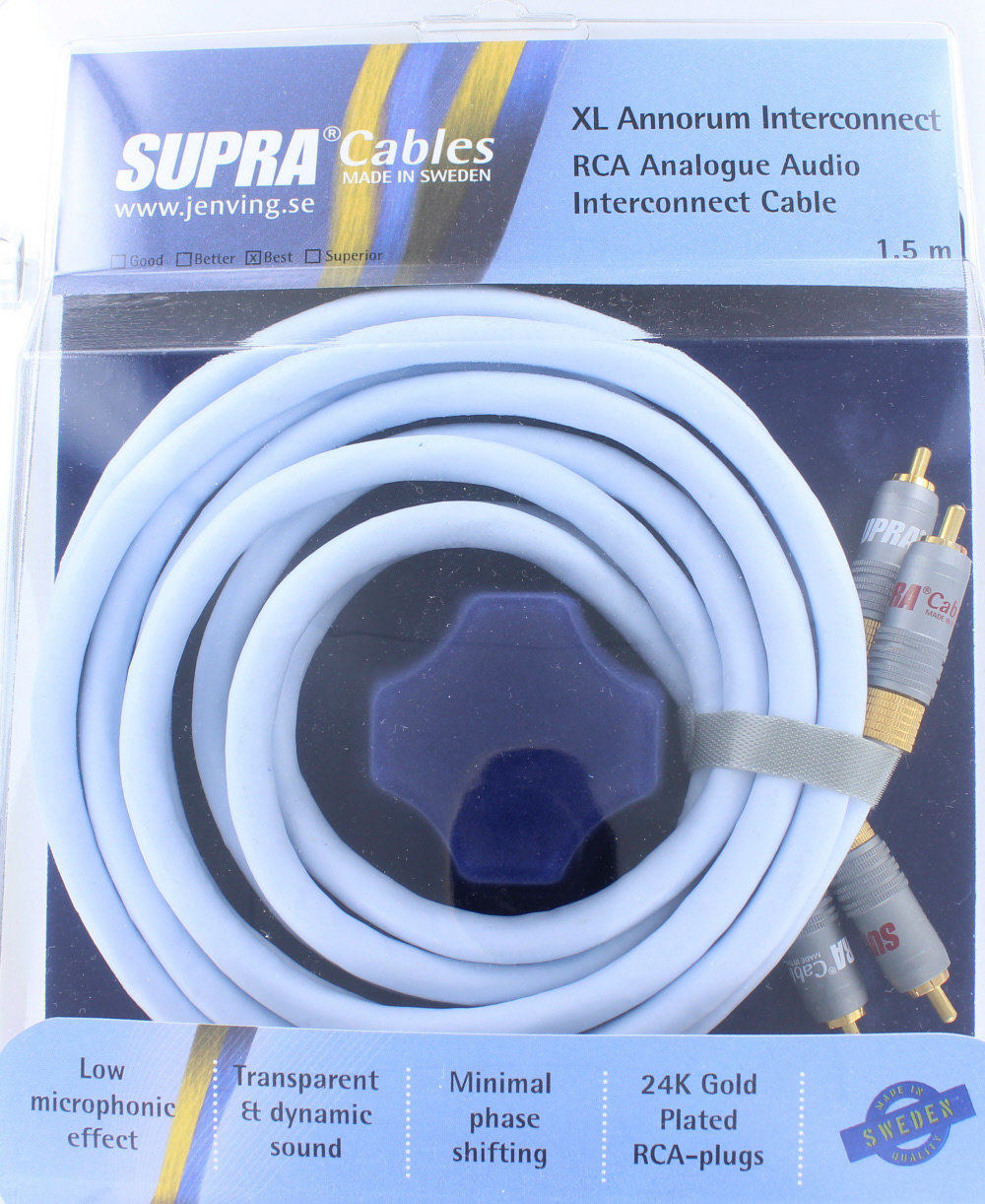

Supra XL Annorum RCA Interconnect - Pair
Spec Sheet PDF
- Transparent & dynamic sound
- Minimal phase shifting reactance
- Extremely low microphonic effect
- Robust & slim 24K gold plated chuck lock connectors
XL Annorum interconnect is a development from our popular speaker cable with the same name. A kind of hybrid construction of XL Annorum speaker cable and Sword interconnect, where we picked the best from both worlds.
The construction itself is very similar to the Sword-I while the wire material, damping fillers and the rubberized jacket come from the XL Annorum speaker cable. During the test and development we were dumbfounded by how quiet the cable became, the rubber-based damping material protected the cable extremely well from malignant microphonic effect. The phenomenon is usually volume-dependent and increases with increasing volume, but in our tests we could neither hear nor measure any microphony at all. When you add the Sword construction’s transparency and minimal phase-shifting properties, we got a high-end cable at a mid-range price.
The biggest difference to big brother Sword-I is its lacquered Litz wires which still makes it perform a notch better but it is also significantly more expensive. Cables with lacquered Litz wires is much more difficult and expensive to solder as each wire has to be stripped, which is not necessary for the XL Annorum Interconnect. The construction consists of two Bifilar-spun conductors of 6+6 bare-drawn 5N oxygen-free copper wires, spun in 2 layers around a plastic core with a short pitch. This gives good capacitance values and effectively reduces the current restriction (so-called skin effect). Additional construction benefits are PP plastic insulator which is very tight and chemically stable, helping to minimize the audio fatal corrosion of the conductor material. The conductors are twisted together with damping filling material, effectively shielded with aluminum foil and then embedded in a rubberized outer jacket.
Chuck lock RCA connectors ensure a secure termination at both ends. Turn the grey housing to lock or release the plug to the female terminal.
The specification and performance fits right in between our flagship Supra Sword-I and EFF-I
Construction
Cable: XL Annorum Interconnect
Conductors (x2): 2x6x0.40 (Bare OFC) spun around PE-PP-filler
Area: 2x1.5mm2 / 15awg
Isolation: PP/PE mix, D=3mm
Parts: Twisted
Screen: Alu/Pet foli, 100%, semi-balanced, the screen is only connected at the source end
Jacket: Rubber based PVC GA54, round, D=8mm
Color: Iceblue
Interconnect: Stereo, 2 > 2 plugs, right = red, left = black
Plugs: RCA-8SL
-Material: Gold plated copper alloy
-Wire connection: Soldering. Solder tin Almit 34 Super
Signal direction: Follow the arrows printed on jacket
