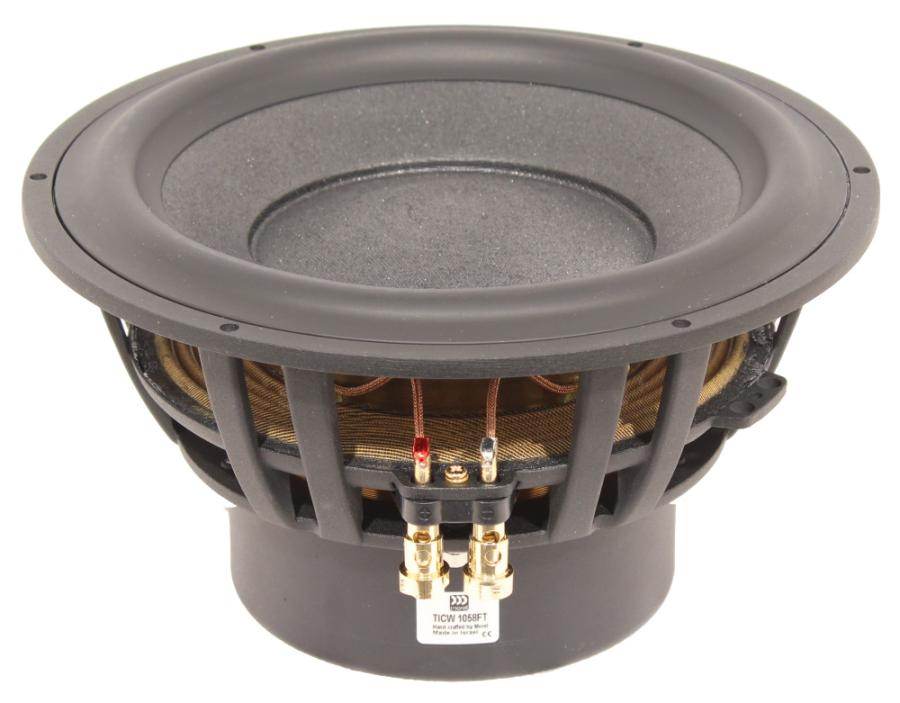

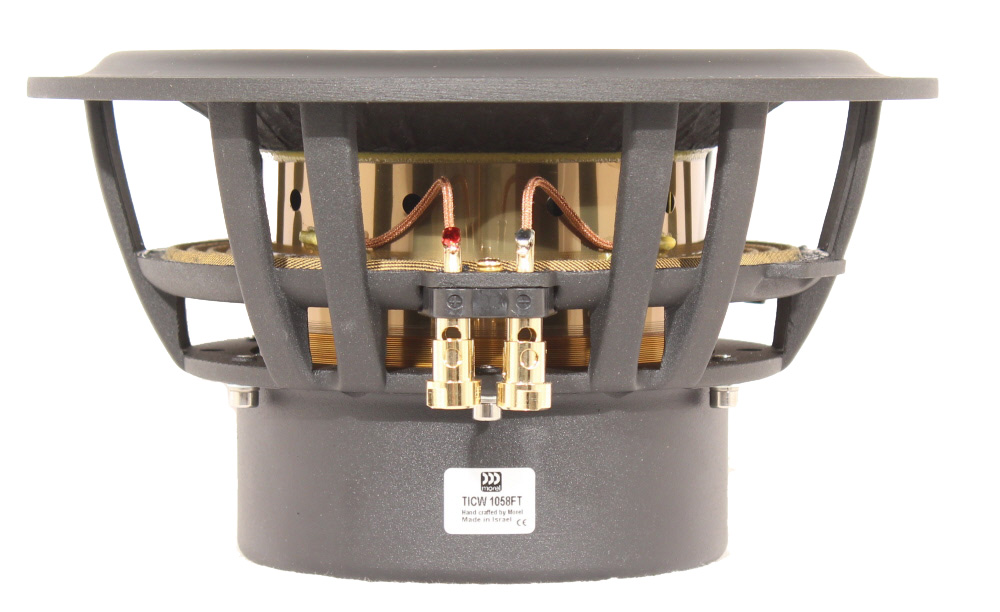

Morel TiCW1058FT Titanium Series 10" Subwoofer 8 Ohms

Morel TiCW1058Ft

Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.

To create the Titanium Ultimate high fidelity 10" subwoofer, Morel uses an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this massive cone requires huge amounts of magnetic force, so Morel uses a high flux double magnet system.

Speed-robbing energy storage is highly reduced (0.52 mH) through the combination of the titanium former and a copper-sleeved pole piece. Trapped sound waves within the subwoofer are virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.

Design Features:
•Uniflow™ Aluminum diecast chassis
•High flux double Ferrite magnet system
•Coppersleeve Neolin Motor
•5.1" Large Hexatech™ Aluminum voice coil
•Titanium coil bobbin
•One piece paper cone/center dome
•Accucenter™ self centering cone assembly

Recommended Alignments:
•1.1 cubic foot sealed, F3= 51 Hz.
•2.3 cubic foot vented, F3= 29 Hz recommended

Mounting Information:
•Outside Diameter 10.35"
•Cutout hole 9.5"
•Depth 5.85"
•Six mounting holes

General Data:
•Nominal Power Handling (DIN) P 600W
•Transient Power 10ms 3000W
•Sensitivity 2.83V/1M 86 dB
•Frequency Response See graph
•Cone Material composite cellular fiber
•Net Weight Kg 7

Electrical Data:
•Nominal Impedance Z 8Ω
•DC Resistance Re 6.3Ω
•Voice Coil Inductance @ 1KHz LBM 0.52 mH

Voice Coil and Magnet Parameters:
•Voice Coil Diameter DIA 130mm
•Voice Coil Height 33mm HE
•Magnetic Gap Height HE 12mm
•Max. Linear Excursion X ± 10.5mm
•Voice Coil Former Titanium
•Voice Coil Wire Hexatech™ Aluminum
•Number Of Layers 2
•Magnet System Type High Flux Double Ferrite Vented
•B Flux Density B 0.62 T,BL Product BXL 15.86 T.M

T-S Parameters (small signal, 1V):
•Suspension Compliance Cms 0.41 mm/N
•Mechanical Q Factor Qms 4.95
•Electrical Q Factor Qes 0.4
•Total Q Factor Qts 0.37
•Mechanical Resistance Rms 3.2 Kg/s
•Moving Mass Mms 106 g
•Eq. Cas Air Load (liters) VAS 106 Lt
•Resonant Frequency Fs 24 Hz
•Effective Piston Area SD 346 cm²

TICW1058 quick reference
