MDL 65 mfd Non-Polar Electrolytic Capacitor 100V

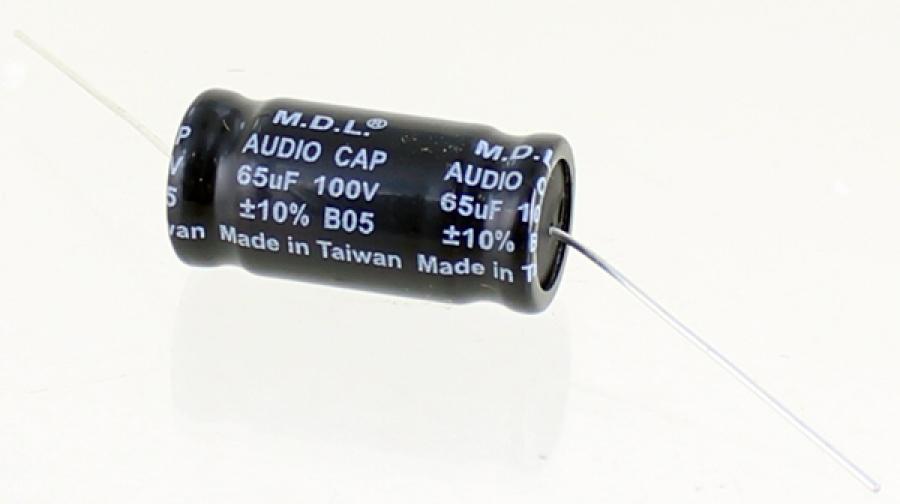

photo of capacitor
Click to enlarge
Price: $1.27


  • Buy 10 - 100 and get an additional 10 % off
Manufacturer: M.D.L.
Product ID : MDL-65
Weight: 0.02 lbs
Manufacturer: M.D.L.
E-mail to a friend


MDL 65 mfd Non-Polar Electrolytic Capacitor 100V

  • 65 mfd
  • 100V
  • size 16mm diameter x 34mm length
  • 10% tolerance
  • max. 5% dissipation factor

Capacitance Tolerance: ±10% (K) at 1KHZ
Leakage Current: MAX. 0.03CV + 3μ A After 5 minutes application of rated working voltage (MAX.0.03CV + 3μ A)
Temp Range: - 40℃ ~ + 105℃
Load Life: After 1,000 hours application of rated voltage at 105 ±2℃, capacitors meet the characteristics requirement listed below.
(a) Capacitance change: Within ±25% of initial
(b) Tan δ:200% or less of initial specified
(c) Leakage current: Install specified value or less
MAX Dissipation Factor: MAX 5% at 1KHz

mechanical drawing

With professional experience since 1980, M.D.L. has manufactured cross-over networks, accessories & components, including Axial type Aluminum Electrolytic Capacitors of extraordinary quality for all your vital applications. Reliable quality Non-Polar series of M.D.L. is produced for cross-over networks with high fidelity audio system and the small capacitance deviation is the main feature from all excellent characteristics. Various components for speaker system are available.
