MDL XPP Polypropylene 20mfd 250V
Manufacturer: M.D.L.
Product ID: XPP-20
Price:
$6.10
Volume Pricing
10 - 100
10% off
10% off

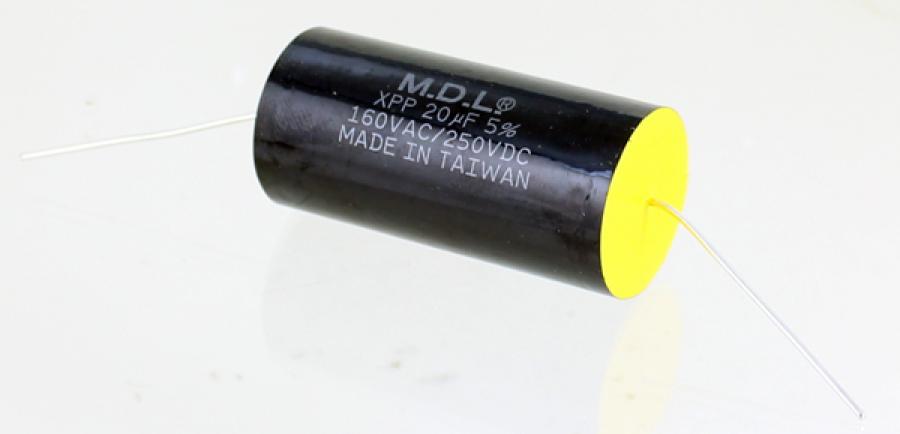

MDL 20mfd XPP Metallized Polypropylene Film Capacitor, Non-Inductive
Specifications
Capacitance tolerance：± 10%(K) or ± 5%(J) or ± 2.5% (H) or ± 1%(F) at 1K HZ
Dissipation factor：Max 0.001 (0.1%) at 1KHZ.
Temperature range：- 40 ºC to +105 ºC
Capacitance drift： Max. 2% cycled throught the operating temp. Range.
INSULATING RESISTANCE： C ≤ 0.33μF， I.R. ≥ 9000 Mega-Ohm (at 20 ºC, 1min) C > 0.33μF , I.R ≥ 7500 Mega-Ohm (at 20 ºC, 1min)
LIFE TEST：150% of rated working voltage at 105 ºC for 1,000 hours.
HUMIDITY：Caps Max. 5% D.F. Max 2% I.R. Min 70% under R.H. 95% @40 ºc 1,000 hours.
PULL TEST： Will sustain 2 kgs steady pull in the direction of lead egress and 1 kg steady pull at any 90 degree angle for 60 seconds. After test, capacitor shall show no evidence of damage and pass all electrical requirements.
With professional experience since 1980, M.D.L. has manufactured cross-over networks, accessories & components, including Axial type Aluminum Electrolytic Capacitors of extraordinary quality for all your vital applications. Reliable quality Non-Polar series of M.D.L. is produced for cross-over networks with high fidelity audio system and the small capacitance deviation is the main feature from all excellent characteristics. Various components for speaker system are available.
- 20 mfd
- 250V
- size 27mm diameter x 55mm length
- 5% tolerance
- 0.1% dissipation factor
Specifications
Capacitance tolerance：± 10%(K) or ± 5%(J) or ± 2.5% (H) or ± 1%(F) at 1K HZ
Dissipation factor：Max 0.001 (0.1%) at 1KHZ.
Temperature range：- 40 ºC to +105 ºC
Capacitance drift： Max. 2% cycled throught the operating temp. Range.
INSULATING RESISTANCE： C ≤ 0.33μF， I.R. ≥ 9000 Mega-Ohm (at 20 ºC, 1min) C > 0.33μF , I.R ≥ 7500 Mega-Ohm (at 20 ºC, 1min)
LIFE TEST：150% of rated working voltage at 105 ºC for 1,000 hours.
HUMIDITY：Caps Max. 5% D.F. Max 2% I.R. Min 70% under R.H. 95% @40 ºc 1,000 hours.
PULL TEST： Will sustain 2 kgs steady pull in the direction of lead egress and 1 kg steady pull at any 90 degree angle for 60 seconds. After test, capacitor shall show no evidence of damage and pass all electrical requirements.
With professional experience since 1980, M.D.L. has manufactured cross-over networks, accessories & components, including Axial type Aluminum Electrolytic Capacitors of extraordinary quality for all your vital applications. Reliable quality Non-Polar series of M.D.L. is produced for cross-over networks with high fidelity audio system and the small capacitance deviation is the main feature from all excellent characteristics. Various components for speaker system are available.
